3000-Sheet Finisher (B805)
G133 1-36 SM
2. Open the front door, and then remove all tapes and packing materials from the inside
of the finisher.

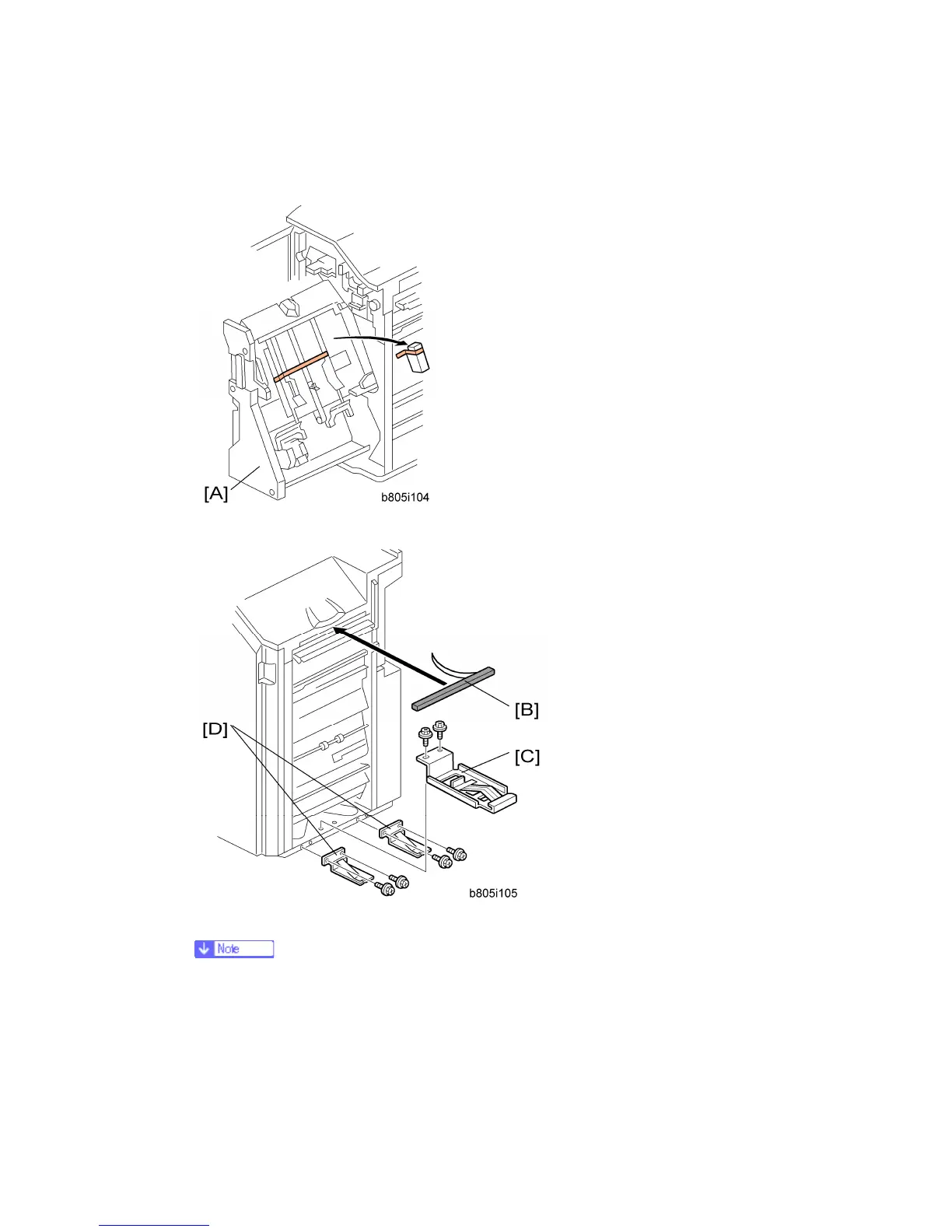

3. Pull out the jogger unit [A], and then remove all tapes and retainers.
4. Attach the cushion [B] to the finisher.
Make sure that the cushion is placed within 0 to 1 mm from the edge of the
cover.
5. Install the ground plate [C] to the finisher ( x 2; M3 x 6).
6. Install the small ground plates [D] to the finisher ( x 2; M3 x 6 each).
To Next Page
