Paper Lift
SM 13 B800
B800
Paper Fed
Unit
2.5 PAPER LIFT

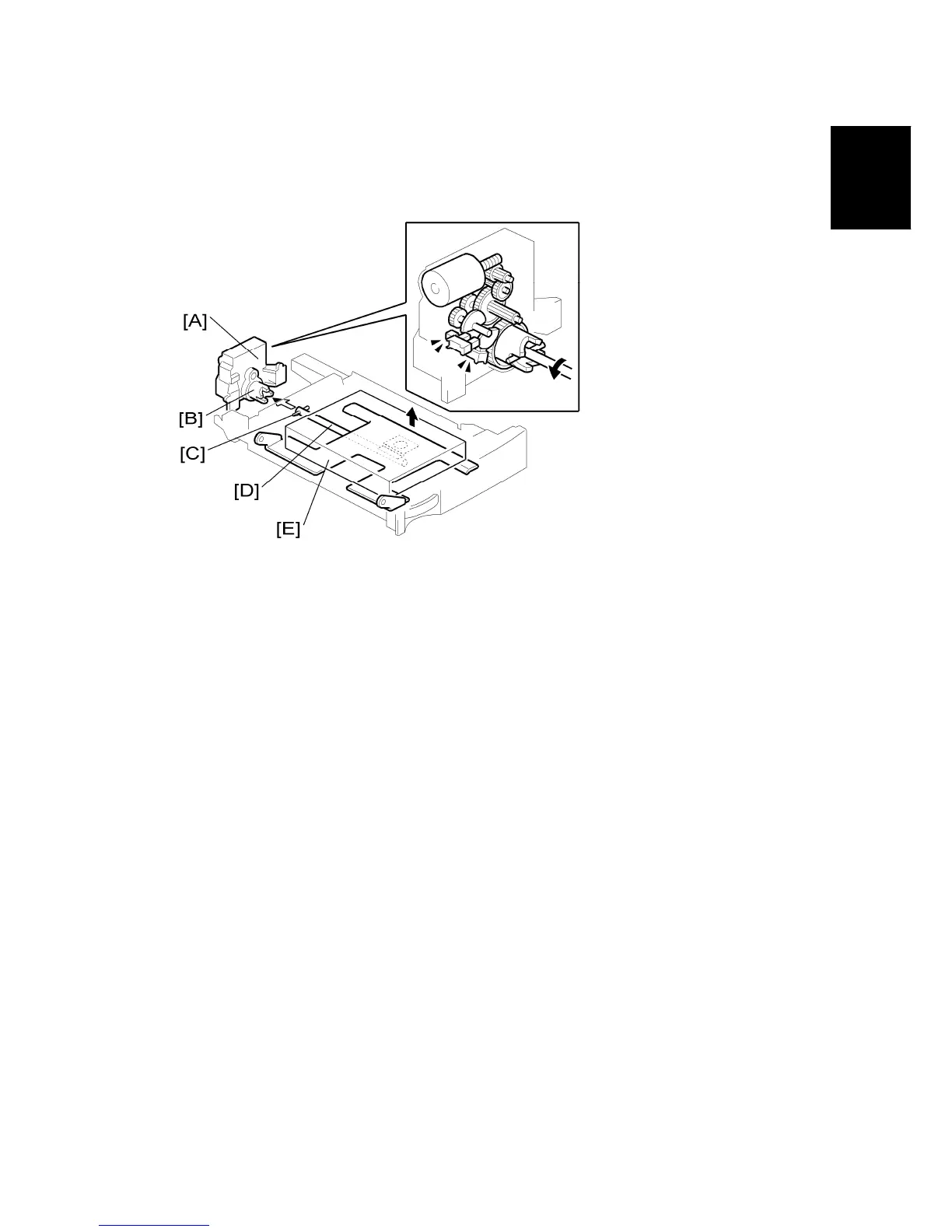

When the machine detects that a tray has been placed in the machine, the tray lift motor
[A] rotates and the coupling gear [B] on the tray lift motor engages the pin [C] on the lift
arm shaft [D]. Then the tray lift arm lifts the tray bottom plate [E] until the paper lift sensor
for the tray detects that the top of the stack is at the paper feed position.
When the tray is removed from the machine, the connection between the coupling gear
and lift arm shaft is disengaged, and the tray bottom plate lowers.
