Component Layout
SM 27 B804/B805
Booklet
Finisher/
Finisher
B804/B805

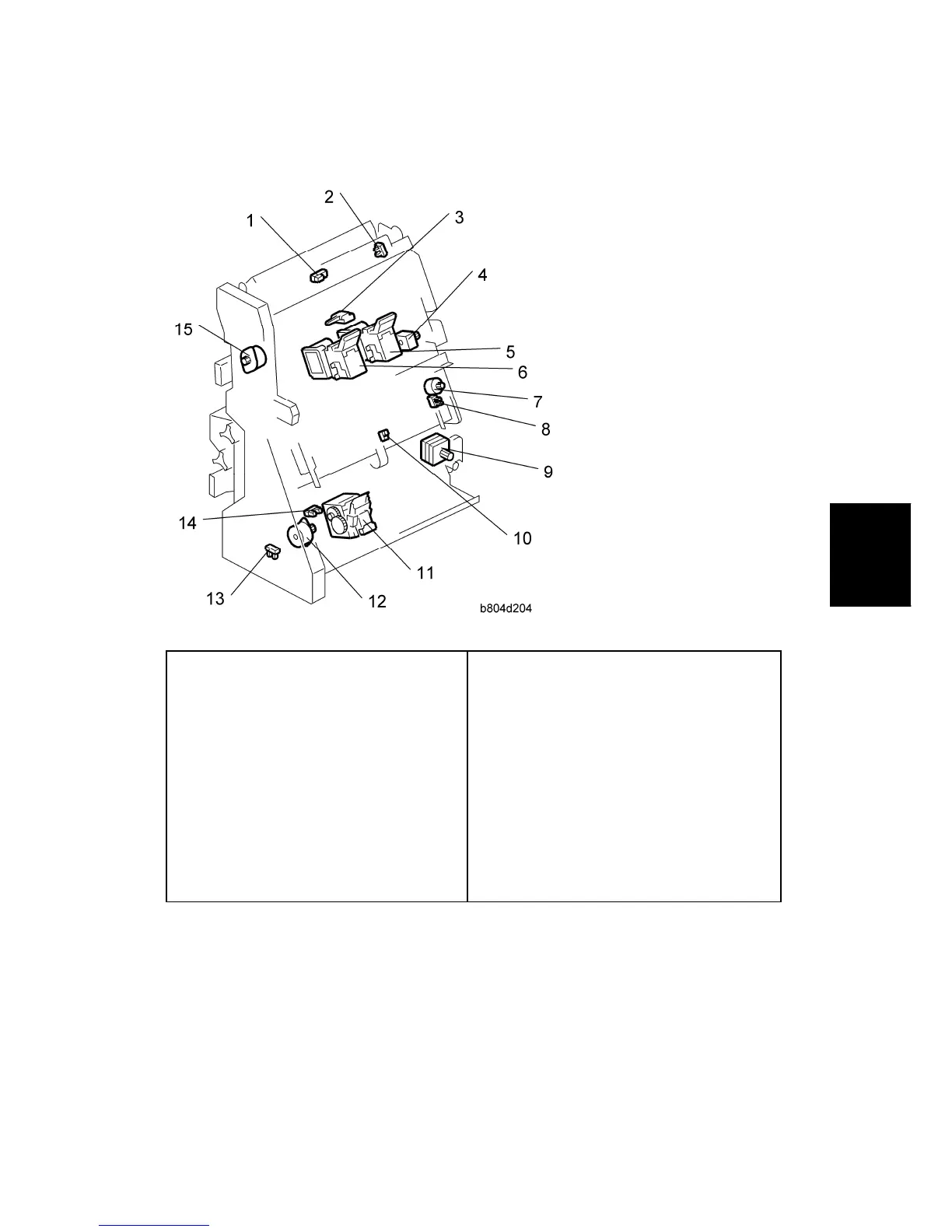

Stacker/Stapler - B804/B805
1. Stack Present Sensor (S32)*
1
2. Stack Junction Gate HP Sensor (S27)*
1
3. Stack Feed Out Belt HP Sensor (S16)
4. Feed Out Belt Motor (M5)
5. Booklet Stapler EH185R – Rear (M23)*
1
6. Booklet Stapler EH185R – Front
(M22)*
1
7. Jogger Fence Motor (M15)
8. Jogger Fence HP Sensor (S15)
9. Corner Stapler Movement Motor (M6)
10. Stapling Tray Paper Sensor (S14)
11. Corner Stapler EH530 (M20)
12. Corner Stapler Rotation Motor (M13)
13. Corner Stapler HP Sensor (S17)
14. Stapler Rotation HP Sensor (S18)
15. Stack Junction Gate Motor (M17) *
1
*
1
: B804 Only
To Next Page
