Fusing
G179 3-42
SM

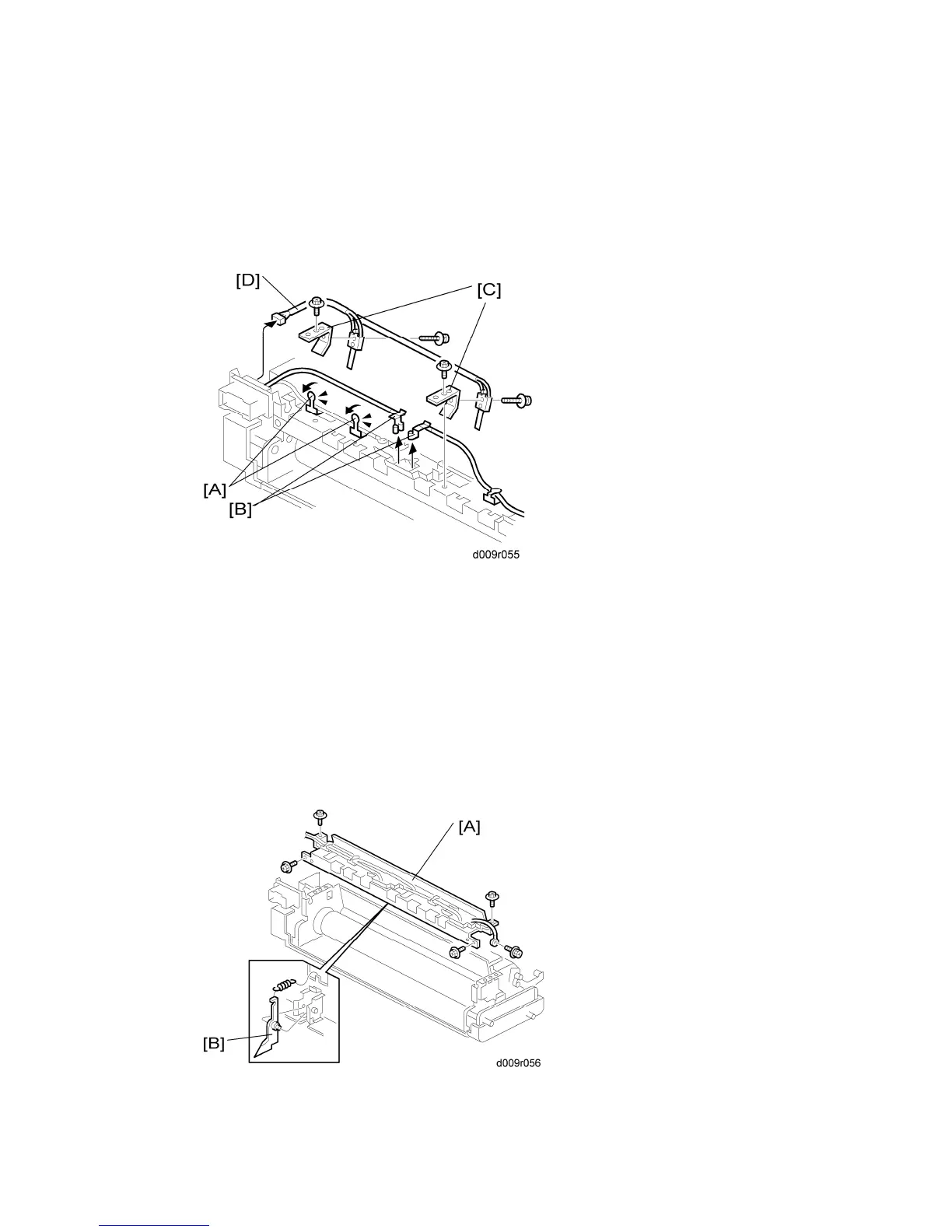

3.9.7 THERMISTOR
1.
Fusing unit (
Fusing Unit)
2.
Web roller unit (
W
eb Roller Unit)
3.
Fusing top cover (
Thermostat)
4.
Pull the two tabs [A].
5.
Disconnect the two terminals [B].
6.
Sensor stays [C] (
x 1 each)
7.
Thermistors [D] (
x 2,
x 1)
3.9.8 HOT
ROLLER
STRIPPERS
1.
Fusing unit (
Fusing Unit)
2.
Web roller unit (
W
eb Roller Unit)
3.
Fusing top cover (
Thermostat)
4.
Fusing top frame [A] (
x 5)
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA
129
131
