Using SP Modes
SM 5-153 G179
Service
Tables
No. Test Pattern No. Test Pattern
9 Argyle Pattern Small 22 Two Beam Density Pattern
10 Argyle Pattern Large 23 Full Dot Pattern
11 Independent Pattern (1-dot) 24 All White Pattern
12 Independent Pattern (2-dot)
5.26.2 SMC PRINT OUT LISTS: SP5-990
1. Open SP mode 5-990.
SMC (System Parameter and Data Lists)
1 All Data List
2. Press the “EXECUTE” button on the operation panel.
3. Select “Single” or “Both”.
4. After printing the list, press the “Escape” button to return to the SP mode display.

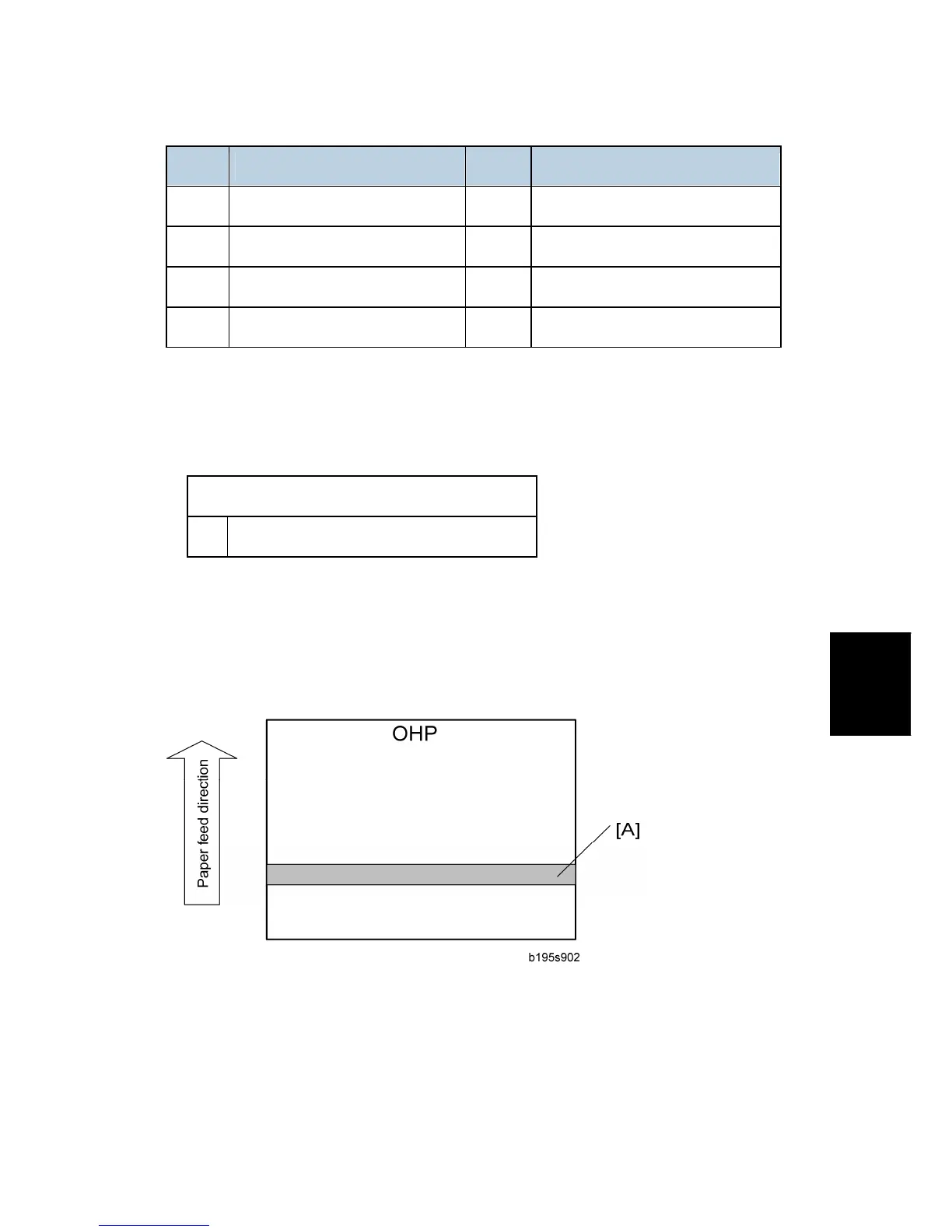

5.26.3 NIP BAND WIDTH CHECK: SP1-109
When paper wrinkling or image offset occurs, the pressure from the pressure roller can be
adjusted by changing the position of the pressure springs. At this time, the nip bandwidth
can also be checked with SP1-109.
1. Execute SP5-802 to perform a free run of about 50 sheets.
2. Open SP1-109-1, press "OK" button, and then press "Yes" to confirm the selection.
