3.15 PRINT ADJUSTMENTS

3.15.1 OVERVIEW

Perform these adjustments after replacing any of the following:

 Polygon Mirror Motor

 Paper Side Fence

 Memory All Clear

3.15.2 PRINTING

1. Make sure paper is installed correctly in each paper tray before you start these

adjustments.

2. Use the Trimming Area Pattern (SP2-109-1, No. 14) to print the test pattern for the

following procedures.

Registration - Leading Edge/Side-to-Side

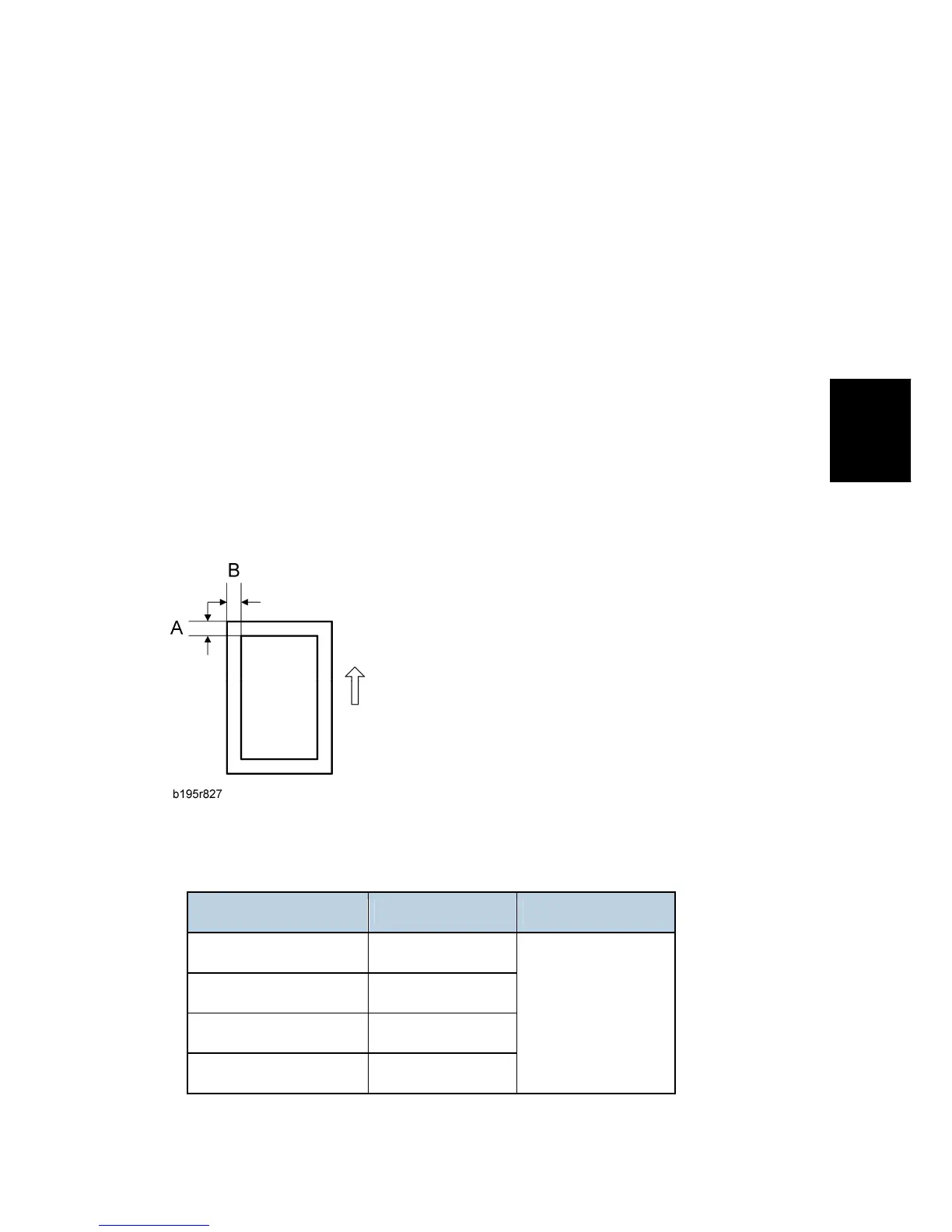

1. Check the leading edge registration [A] for each paper type and paper feed station,

and adjust it with following SP modes.

SP No. Specification

Tray: Plain SP1-001-1

Tray: Thick 1 SP1-001-2

Tray: Thick 2 SP1-001-3

By-pass: Plain SP1-001-4

0 ±9.0 mm
