Paper Feed
D351 10
SM
2.2 PAPER
FEED

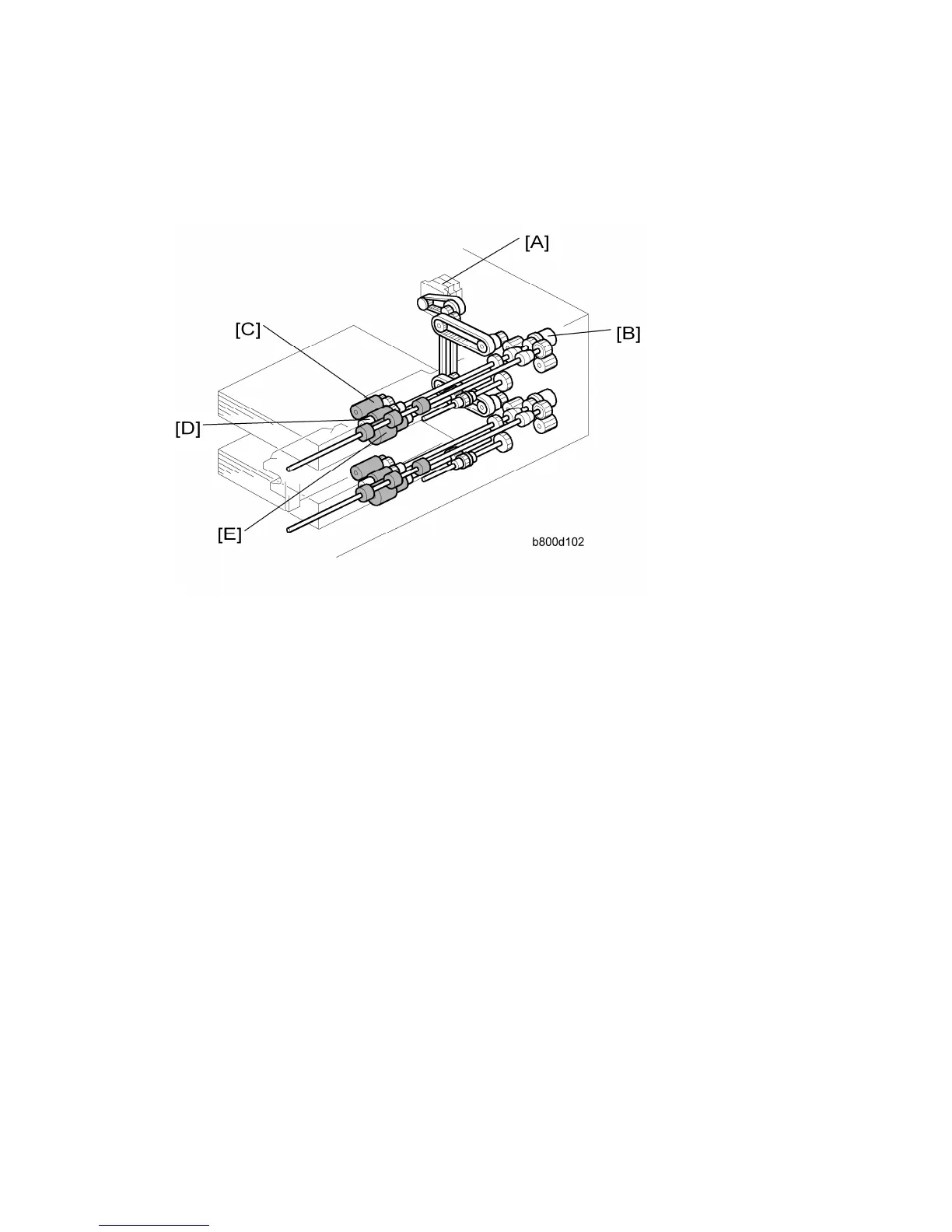

Paper Feed Mechanism:
An FRR (feed and reverse roller)
feed mechanism is used (
"Paper Feed Methods" in the
Core T
echnology Manual)
.
Drive Path:
T
ray 3 (upper tray) and tr
ay 4 (lower tray)
have identical paper feed systems.
The feed
motor [A] drives all the rollers in the unit.
The paper feed clutch [B] controls the pick-up
roller [C], paper feed roller [D], and sep
aration roller [E].
