Paper Exit
G179 6-66 SM
6.14.3 EXIT GUIDE PLATE AND DE-CURLER ROLLERS

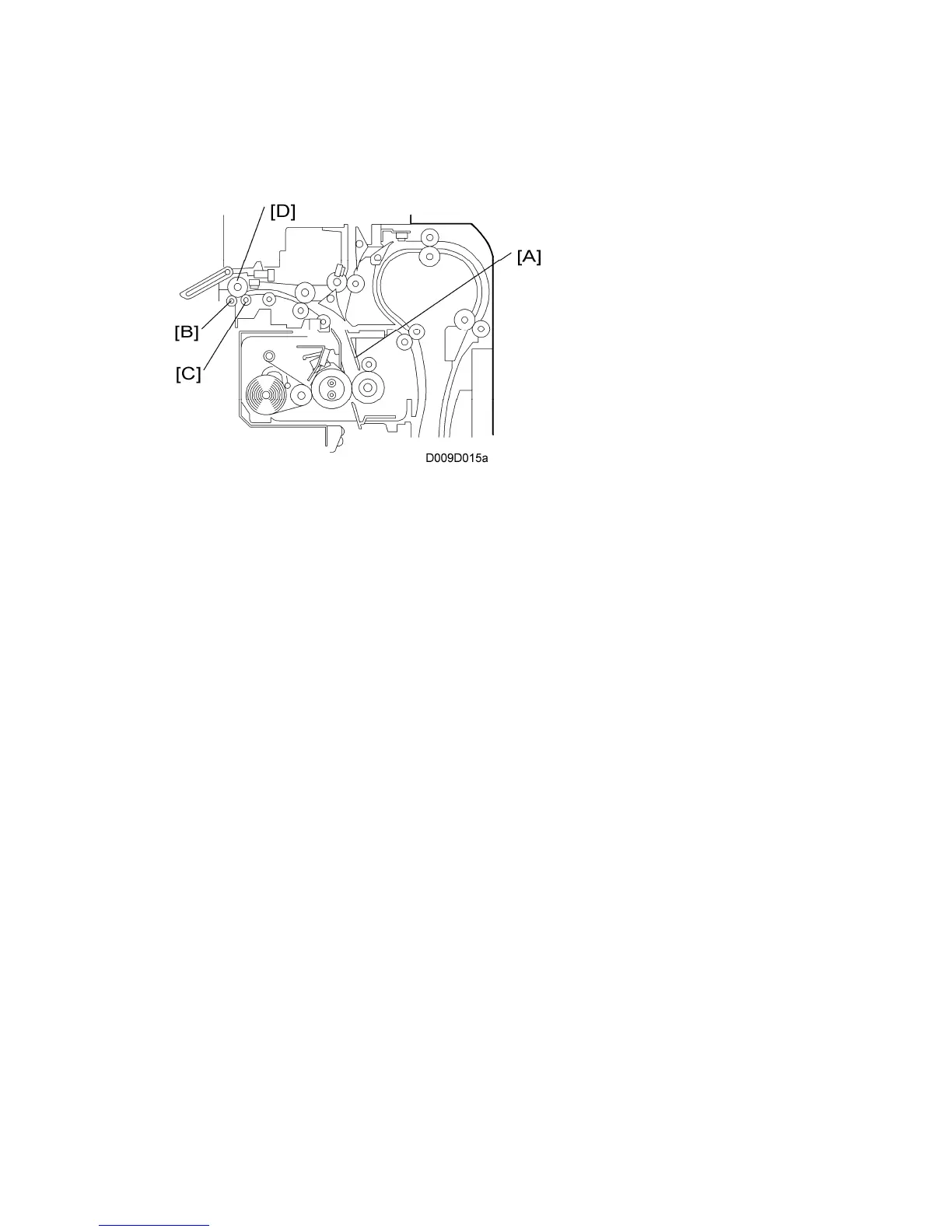

The exit guide plate [A] also functions as a pressure roller stripper. The exit guide plate can
be moved in order to remove jammed paper.
Stacking has been improved by mounting a face-curl correction mechanism at the paper
exit roller.
Two de-curler rollers [B] and [C] have been added under the exit roller [D] to correct the curl
that paper acquires during transport through the fusing unit.
