Duplex
SM 3-51
G179
Repla
cement
Adjustment
3.

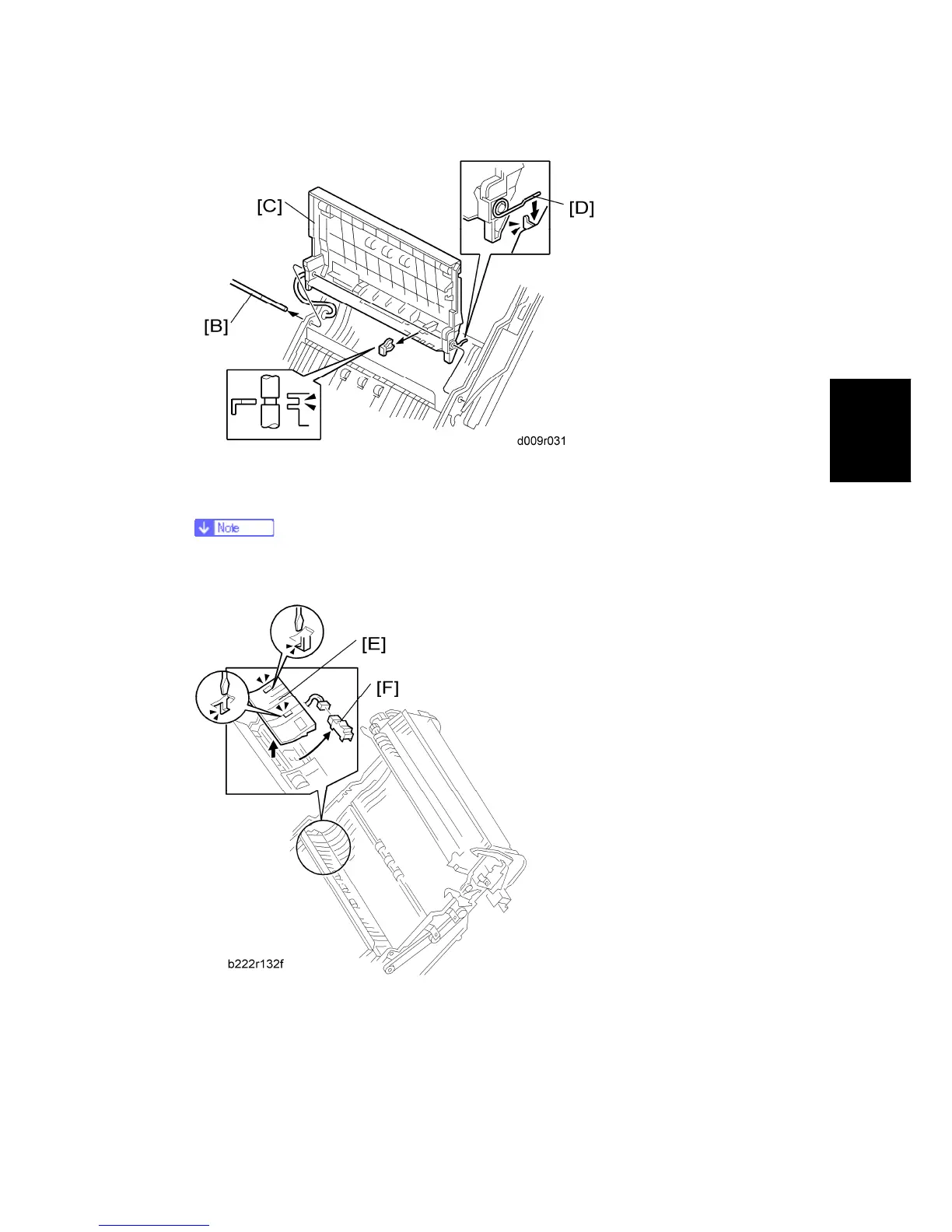

Remove the shaft [B] (
x 1).
4.
T
ransfer belt unit holder [C] (
x 1,
=
x 1)
When re-installing the transfer belt unit
holder
, make sure that the spring [D]
correctly hooks onto the frame.
5.
Guide plate [E] (two hooks)
6.
Duplex exit sensor [F] (
x 1, hooks)
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA
138
