Paper Exit
SM 6-63 G179
Detailed
Descriptions
6.14 PAPER EXIT

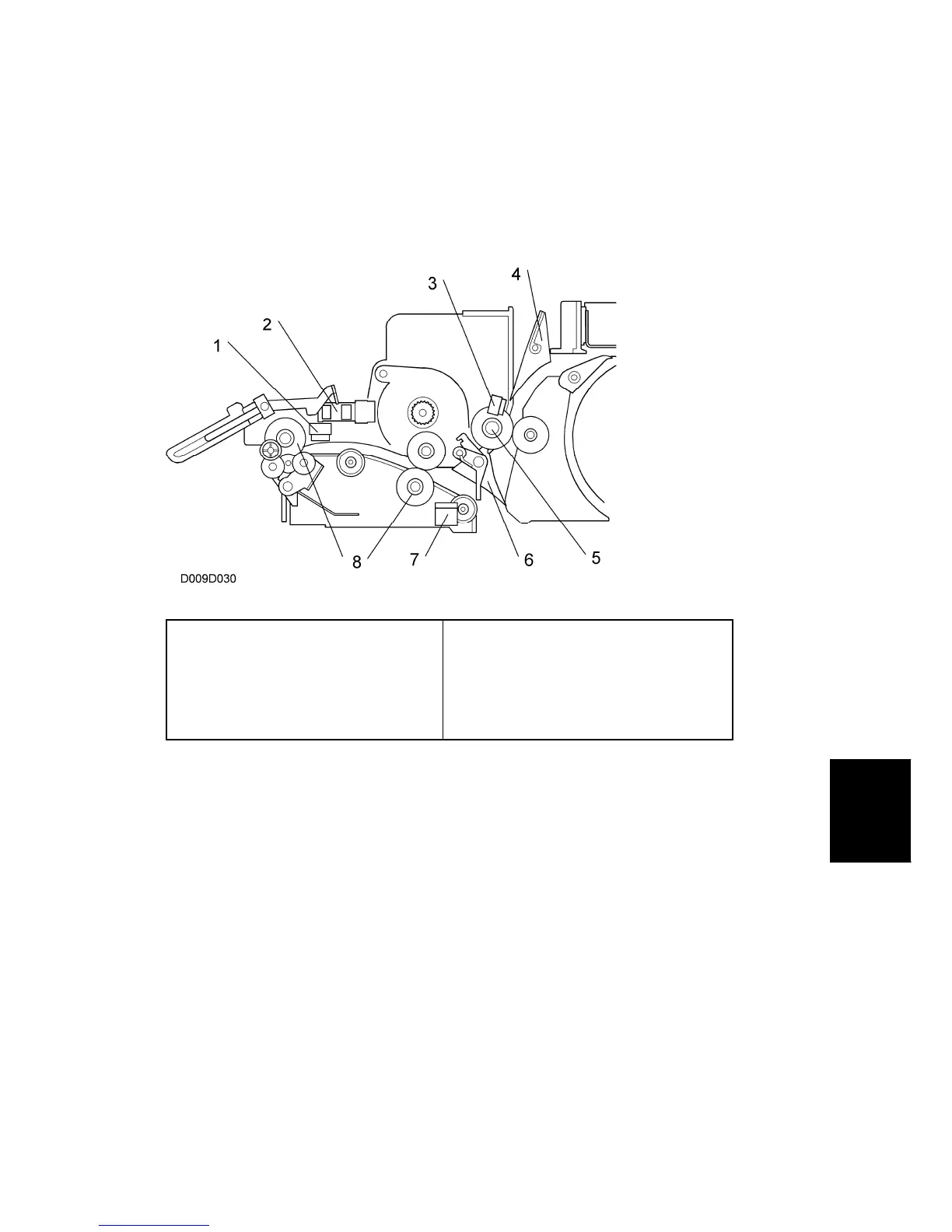

6.14.1 OVERVIEW
1. Paper exit sensor
2. Paper overflow sensor
3. Junction gate jam sensor
4. Junction gate 2 (Not used)
5. Junction Transport Roller
6. Junction gate 1
7. Fusing exit sensor
8. Paper exit rollers
This machine has two junction gates around the paper exit unit (junction gate 2 is located in
the duplex unit):
Junction gate 1 switches the paper feed direction to the standard output tray path or
the duplex unit path. This gate is controlled by the junction gate 1 solenoid. When the
junction gate 1 HP sensor detects that the gate is at home position, the standard
output tray path is opened.
Junction gate 2 is not used in this machine.
The paper exit motor drives the paper exit rollers and the junction transport roller.
