Ricoh G179 User Manual

Booklet Stapler Unit
SM 21 B804/B805
Booklet
Finisher/
Finisher
B804/B805

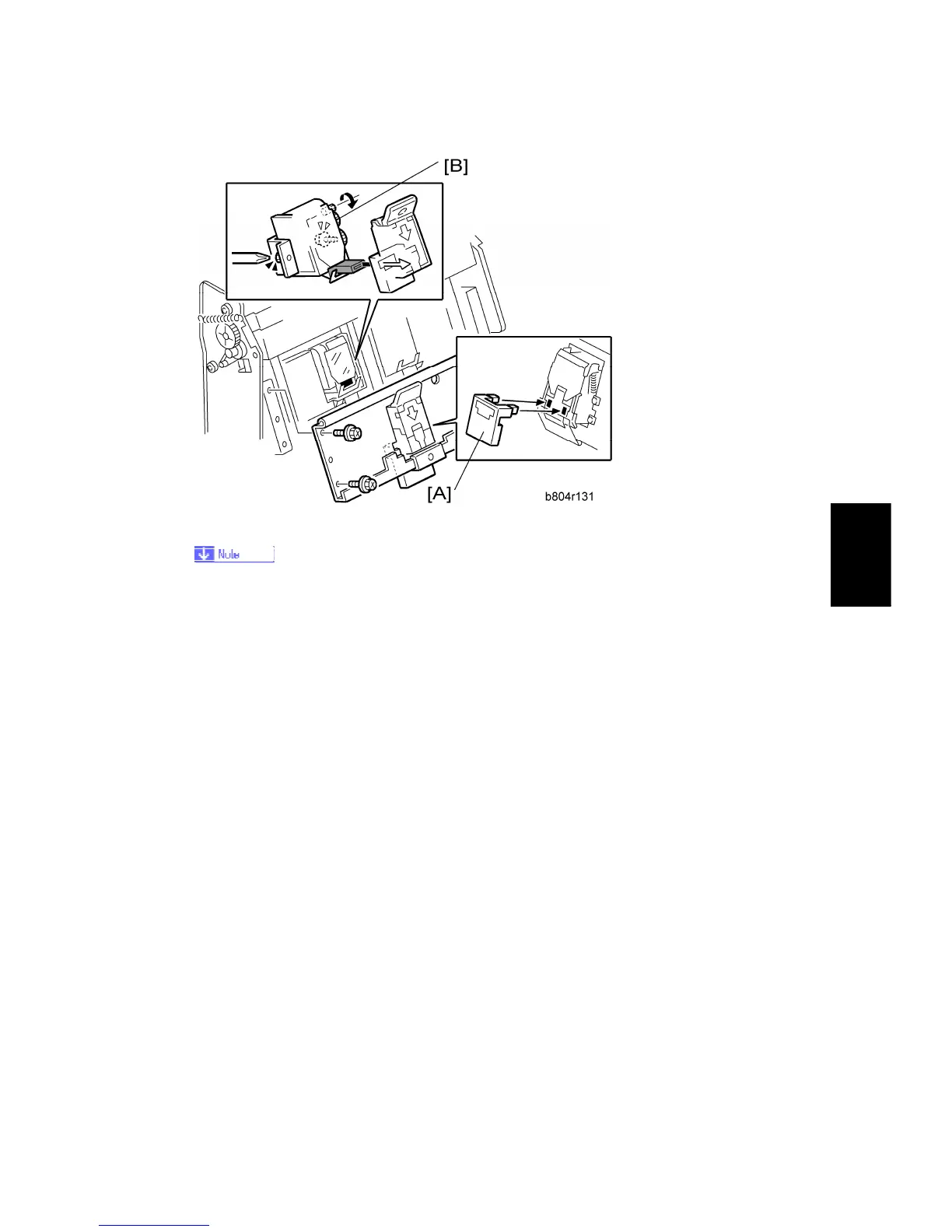

2. Attach the special tool [A] and reattach the booklet stapler stay.

This tool is included with the stapler spare part.
3. Turn the gear [B] with your finger until it stops.
4. Tighten the screws to attach to the booklet stapler motor.
5. Remove the stay again and remove the special tool.
6. Reattach the booklet stapler stay.
7. Push the stapler unit into the machine.
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA

Ricoh G179 Specifications

General

Brand	Ricoh
Model	G179
Category	All in One Printer
Language	English
