T
ra
y Heater (Optional Paper Feed Unit)
G179 1-36
SM
5.

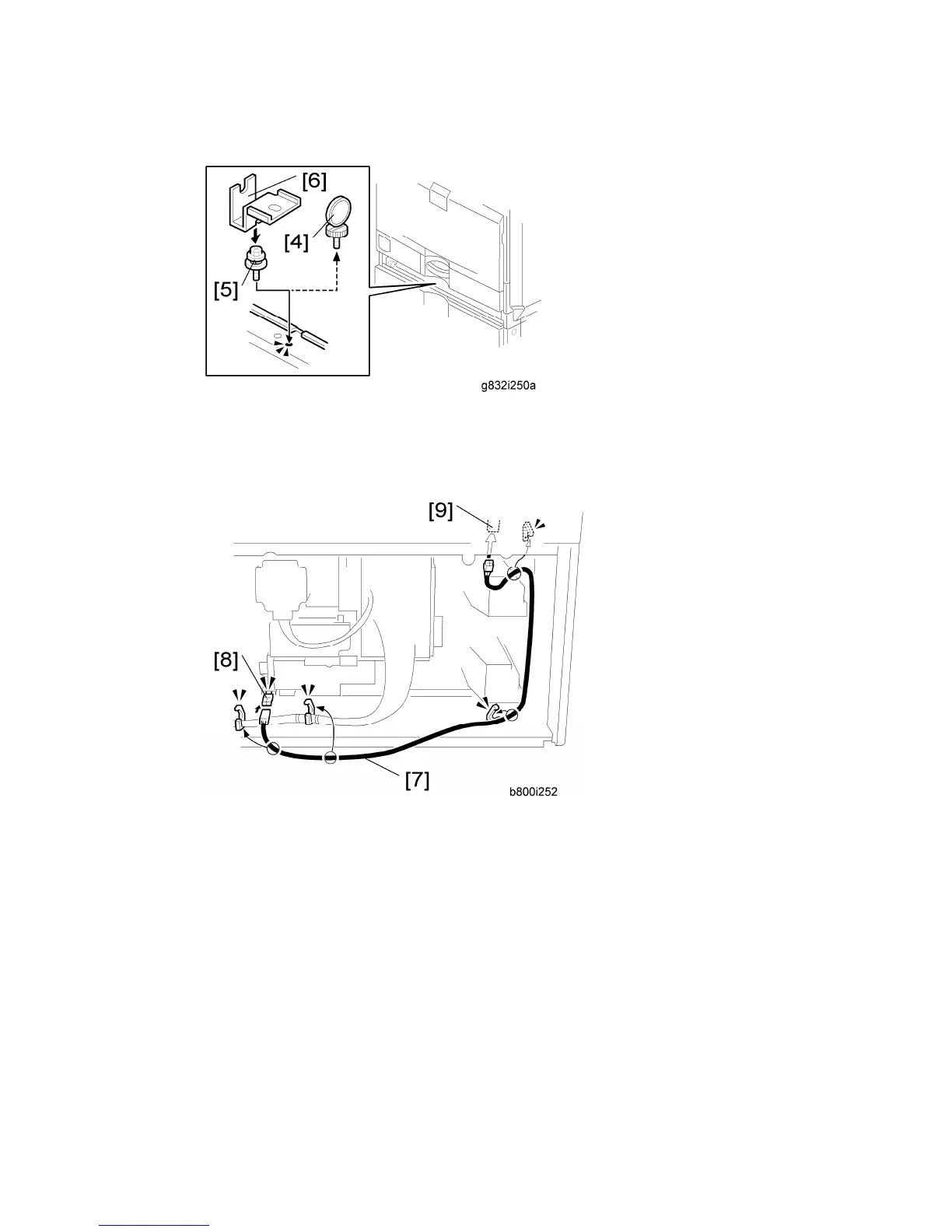

Pull out tray 2 from the mainframe.
6.
Replace the shoulder screw [4] with the
washer screw [5], usin
g the securing bracket
[6] (
x 1).
7.
Connect the harness [7] to the
connector [8] of the tray heater
.
8.
Route the harness [7] as shown
and clamp it with four clamps (
=
x 4).
9.
Connect the harness [7] to the
connector [9] of the mainframe.
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA
69
