Tray Heater (Optional Paper Feed Unit)
SM 1-39 G179
Installation

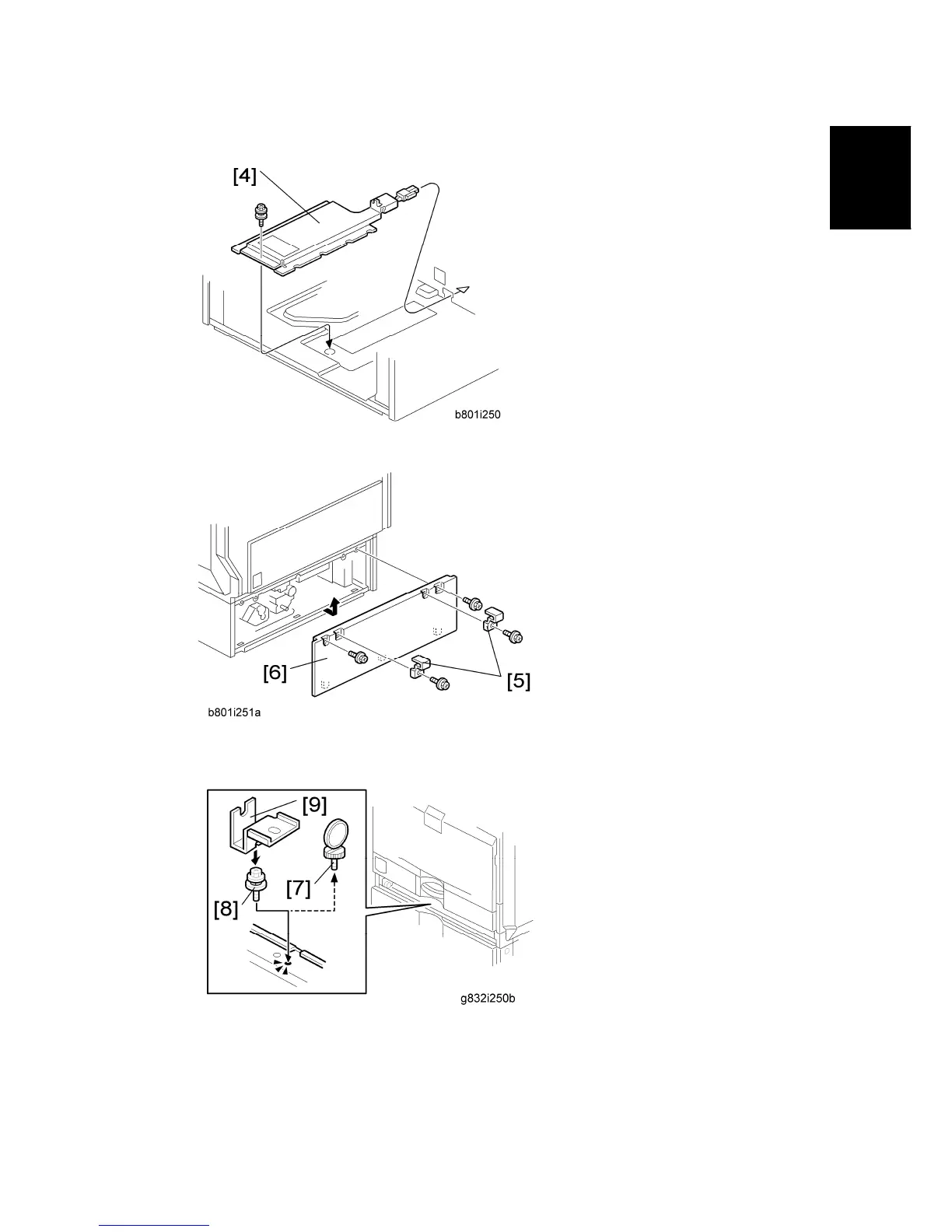

5. Install the tray heater [4] in the optional LCT ( x 1).
6. Remove the two securing brackets [5] ( x 1 each), and then the rear cover [6] of the
optional LCT ( x 2).
7. Pull out tray 2 from the mainframe.
8. Replace the shoulder screw [7] with the washer screw [8], using the securing bracket
[9] ( x 1).
