MFX/IFX Parameters

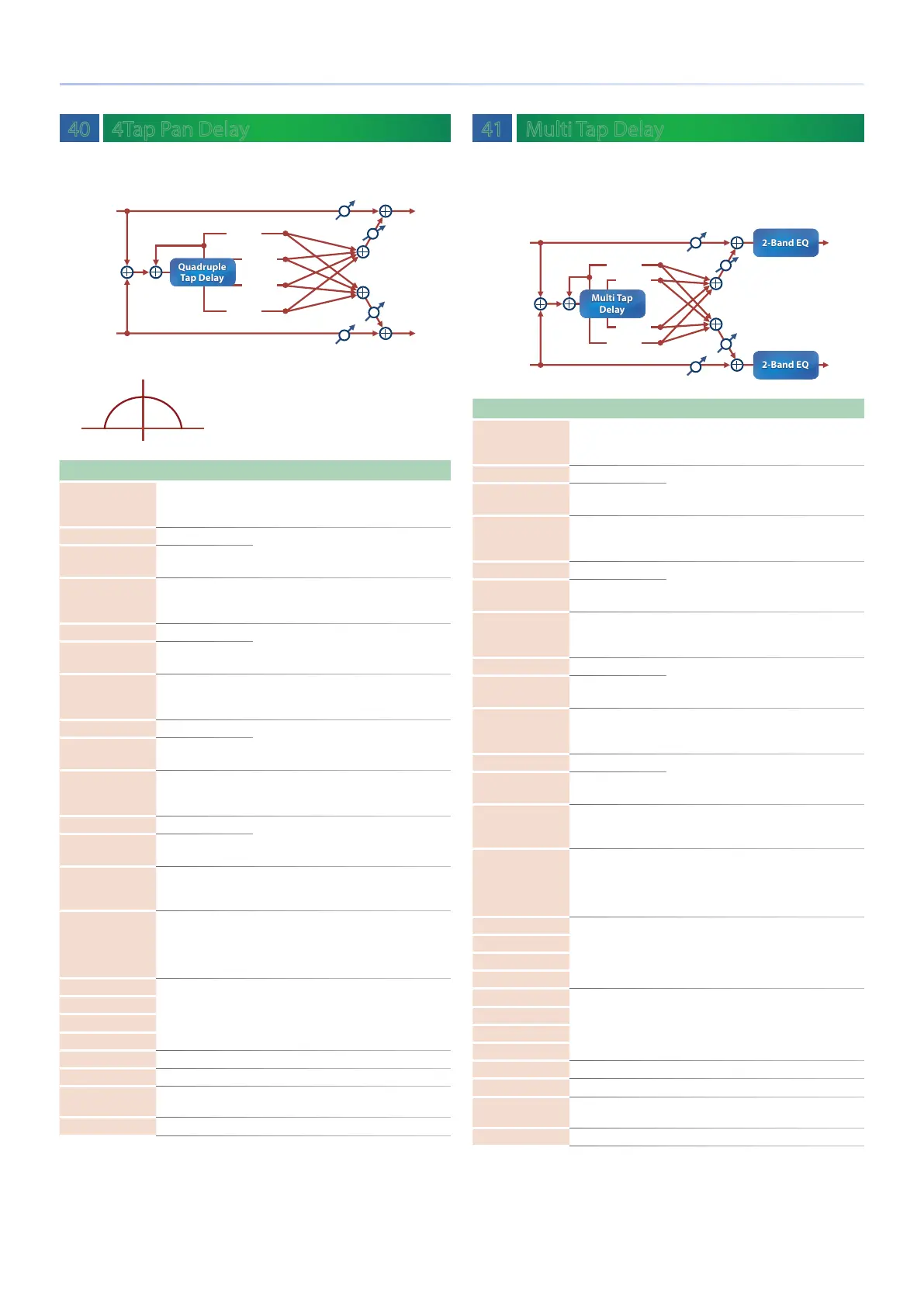

40 4Tap Pan Delay
This eect has four delays.
R out
L out
Balance W
Balance W
Balance D
Balance D
L in
Quadruple
Tap Delay
Quadruple
Tap Delay
R in
Delay 1
Feedback
Delay 2
Delay 3
Delay 4
1
L
2 3
4
R
Parameter Value Explanation
Delay 1 Time
(sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay 1 Time (msec) 1–2600 [msec]
Adjusts the time until Delay 1 is heard.
Delay 1 Time
(note)
Note
&
“Note” (p. 120)
Delay 2 Time (sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay 2 Time (msec) 1–2600 [msec]
Adjusts the time until Delay 2 is heard.
Delay 2 Time
(note)
Note
&
“Note” (p. 120)
Delay 3 Time (sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay 3 Time (msec) 1–2600 [msec]
Adjusts the time until Delay 3 is heard.
Delay 3 Time
(note)
Note
&
“Note” (p. 120)
Delay 4 Time (sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay 4 Time (msec) 1–2600 [msec]
Adjusts the time from the original sound until
Delay 4 is heard.
Delay 4 Time
(note)
Note
&
“Note” (p. 120)
Delay 1 Feedback -98–+98 [%]
Adjusts the proportion of the delay sound
that is fed back into the eect. Negative (-)
settings will invert the phase.
HF Damp
200, 250, 315, 400, 500,
630, 800, 1000, 1250,
1600, 2000, 2500, 3150,
4000, 5000, 6300, 8000,
BYPASS [Hz]
Adjusts the frequency above which the delay
sound fed back to the eect is ltered out
(BYPASS: no cut).
Delay 1 Level
0–127 Output level of Delays 1–4
Delay 2 Level
Delay 3 Level
Delay 4 Level
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Balance D100:0W–D0:100W
Volume balance between the direct sound (D)
and the delay sound (W)
Level 0–127 Output Level
41 Multi Tap Delay
This eect has four delays. Each of the Delay Time parameters can be
set to a note length based on the selected tempo. You can also set the
panning and level of each delay sound.
R out
L out
Balance W
Balance W
Balance D
L in
Multi Tap
Delay
Multi Tap
Delay
Balance D
Delay 1
Feedback
Delay 2
Delay 3
Delay 4
R in
Parameter Value Explanation
Delay 1 Time
(sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay 1 Time (msec) 1–2600 [msec]
Adjusts the time from the original sound until
Delay 1 is heard.
Delay 1 Time
(note)
Note
&
“Note” (p. 120)
Delay 2 Time (sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay 2 Time (msec) 1–2600 [msec]
Adjusts the time from the original sound until
Delay 2 is heard.
Delay 2 Time
(note)
Note
&
“Note” (p. 120)
Delay 3 Time (sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay 3 Time (msec) 1–2600 [msec]
Adjusts the time from the original sound until
Delay 3 is heard.
Delay 3 Time
(note)
Note
&
“Note” (p. 120)
Delay 4 Time (sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay 4 Time (msec) 1–2600 [msec]
Adjusts the time from the original sound until
Delay 4 is heard.
Delay 4 Time
(note)
Note
&
“Note” (p. 120)
Delay 1 Feedback -98–+98 [%]
Adjusts the proportion of the delay sound
that is fed back into the eect. Negative (-)
settings will invert the phase.
HF Damp
200, 250, 315, 400, 500,
630, 800, 1000, 1250,
1600, 2000, 2500, 3150,
4000, 5000, 6300, 8000,
BYPASS [Hz]
Adjusts the frequency above which the delay
sound fed back to the eect is ltered out
(BYPASS: no cut).
Delay 1 Pan
L64–63R Stereo location of Delays 1–4
Delay 2 Pan
Delay 3 Pan
Delay 4 Pan
Delay 1 Level
0–127 Output level of Delays 1–4
Delay 2 Level
Delay 3 Level
Delay 4 Level
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Balance D100:0W–D0:100W
Volume balance between the direct sound (D)
and the eect sound (W)
Level 0–127 Output Level
