Roland Groovebox MC-707 User Manual

99

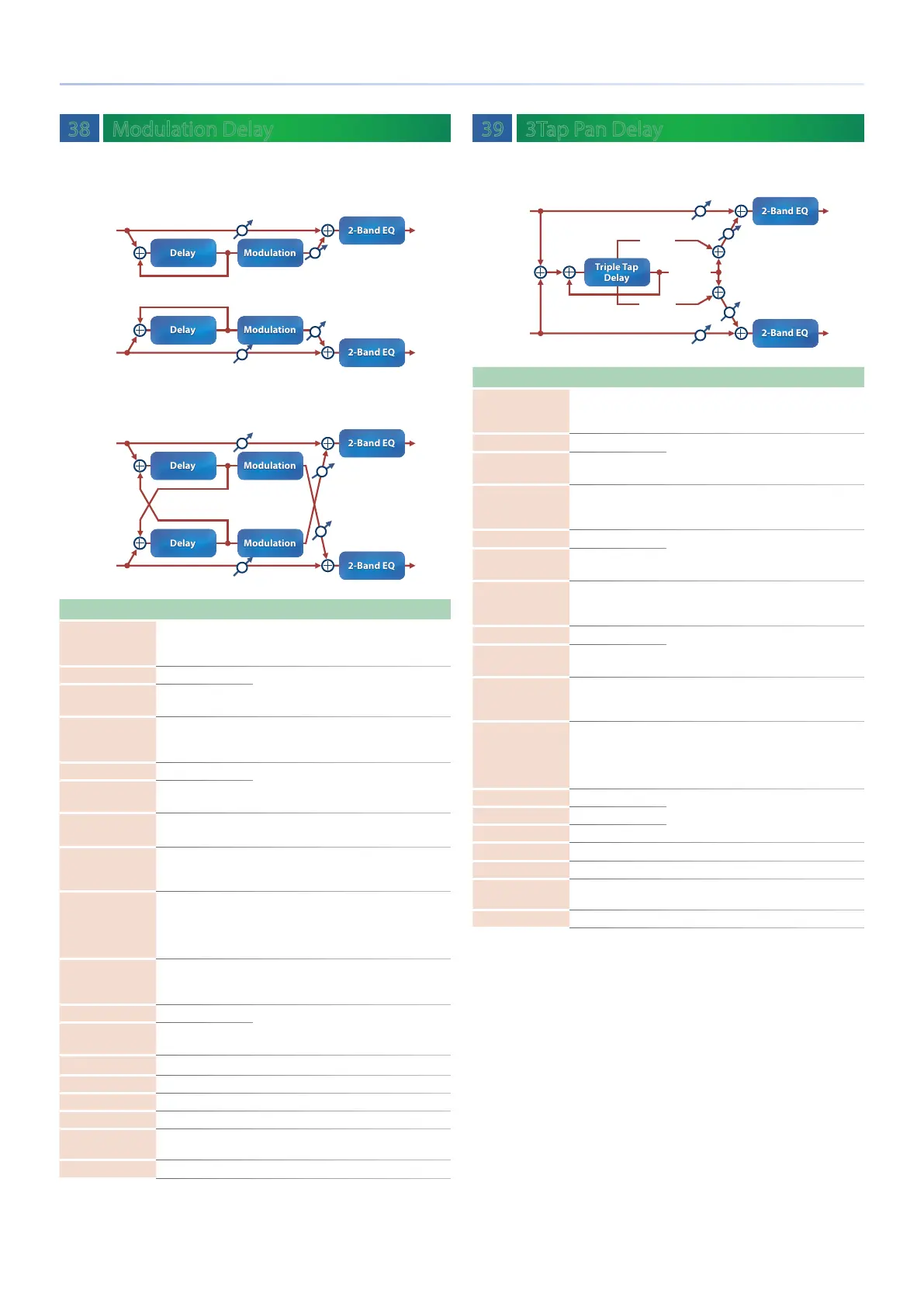

MFX/IFX Parameters
38 Modulation Delay
Adds modulation to the delayed sound.
When Feedback Mode is NORMAL:
R out
L out
2-Band EQ2-Band EQ
2-Band EQ2-Band EQ
Balance W
Balance W
Feedback
Feedback
Balance D
Balance D
L in
DelayDelay
ModulationModulation
DelayDelay
ModulationModulation
R in
When Feedback Mode is CROSS:
R out
L out
2-Band EQ2-Band EQ
2-Band EQ2-Band EQ
Balance W
Feedback
Feedback
Balance D
Balance D
L in
DelayDelay
ModulationModulation
DelayDelay
ModulationModulation
R in
Balance W
Parameter Value Explanation
Delay Left
(sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay Left (msec) 1–1300 [msec]
Adjusts the time until the left delay sound is
heard.
Delay Left
(note)
Note
&
“Note” (p. 120)
Delay Right (sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay Right (msec) 1–1300 [msec]
Adjusts the time until the right delay sound is
heard.
Delay Right
(note)
Note
&
“Note” (p. 120)
Feedback Mode NORMAL, CROSS
Selects the way in which delay sound is fed
back into the eect. (See the gures above.)
Feedback -98–+98 [%]
Adjusts the proportion of the delay sound
that is fed back into the eect. Negative (-)
settings will invert the phase.
HF Damp
200, 250, 315, 400, 500,
630, 800, 1000, 1250,
1600, 2000, 2500, 3150,
4000, 5000, 6300, 8000,
BYPASS [Hz]
Adjusts the frequency above which the delay
sound fed back to the eect is ltered out
(BYPASS: no cut).
Rate
(sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Rate (Hz) 0.05–10.00 [Hz]
Frequency of modulation
Rate
(note)
Note
&
“Note” (p. 120)
Depth 0–127 Depth of modulation
Phase 0–180 [deg] Spatial spread of the sound
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Balance D100:0W–D0:100W
Volume balance between the direct sound (D)
and the delay sound (W)
Level 0–127 Output Level
39 3Tap Pan Delay
Produces three delay sounds; center, left and right.
R out
L out
2-Band EQ2-Band EQ
2-Band EQ2-Band EQ
Balance W
Center Tap
Balance W
Feedback
Balance D
Balance D
L in
Triple Tap
Delay
Triple Tap
Delay
R in
Left Tap
Right Tap
Parameter Value Explanation
Delay Left
(sync switch) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay Left (msec) 1–2600 [msec]
Adjusts the time until the left delay sound is
heard.
Delay Left
(note)
Note
&
“Note” (p. 120)
Delay Right (sync switch) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay Right (msec) 1–2600 [msec]
Adjusts the time until the right delay sound is
heard.
Delay Right
(note)
Note
&
“Note” (p. 120)
Delay Center (sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Delay Center (msec) 1–2600 [msec]
Adjusts the time until the center delay sound
is heard.
Delay Center
(note)
Note
&
“Note” (p. 120)
Center Feedback -98–+98 [%]
Adjusts the proportion of the delay sound
that is fed back into the eect. Negative (-)
settings will invert the phase.
HF Damp
200, 250, 315, 400, 500,
630, 800, 1000, 1250,
1600, 2000, 2500, 3150,
4000, 5000, 6300, 8000,
BYPASS [Hz]
Adjusts the frequency above which the delay
sound fed back to the eect is ltered out
(BYPASS: no cut).
Left Level 0–127
Volume of each delay soundRight Level 0–127
Center Level 0–127
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Balance D100:0W–D0:100W
Volume balance between the direct sound (D)
and the delay sound (W)
Level 0–127 Output Level
