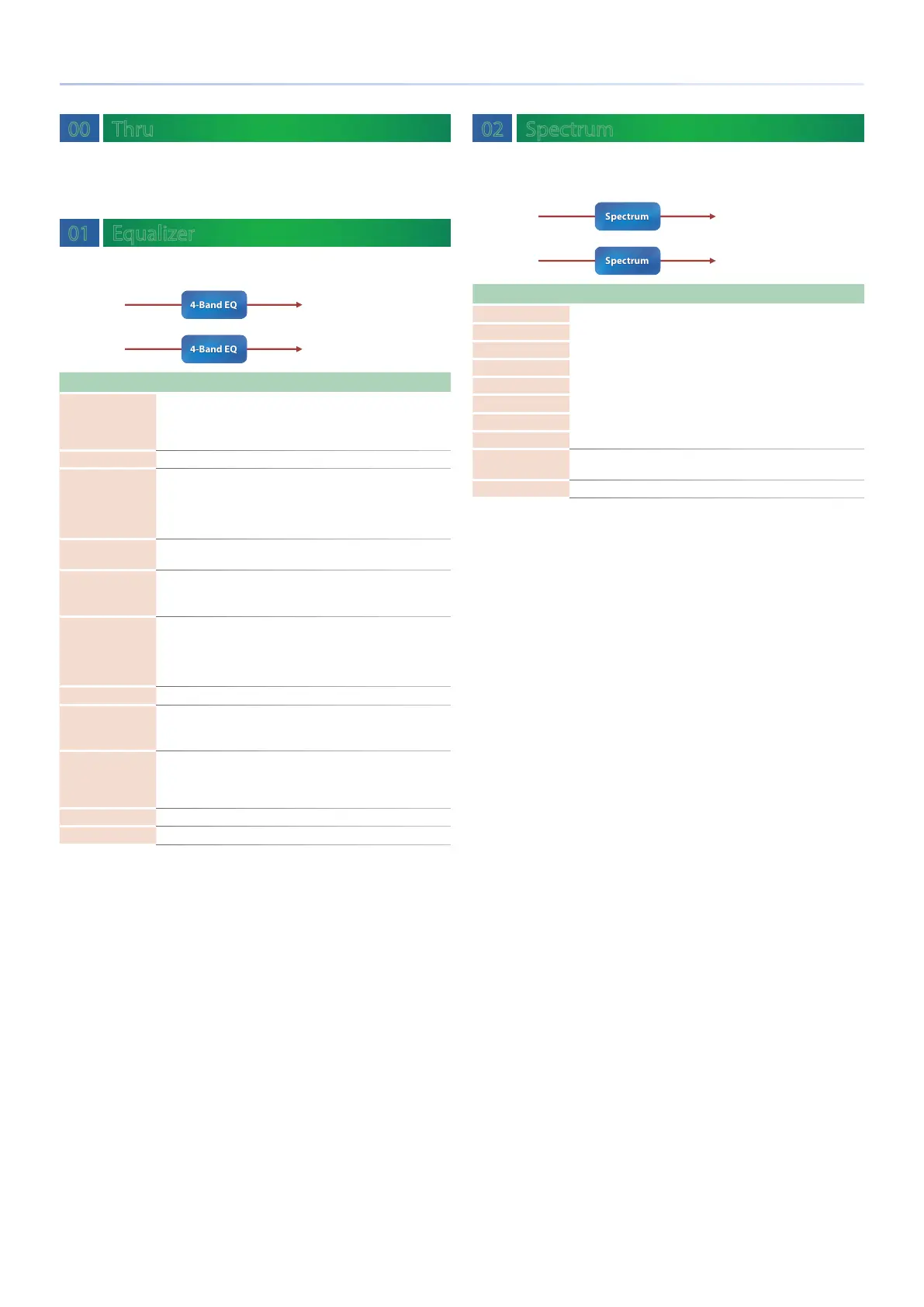

MFX/IFX Parameters
00 Thru
01 Equalizer
This is a four-band stereo equalizer (low, mid x 2, high).
L in L out
R outR in
Parameter Value Explanation
Low Freq
(Low Frequency)
20, 25, 31, 40, 50, 63,
80, 100, 125, 160,
200, 250, 315, 400
[Hz]
Frequency of the low range
Low Gain -15–+15 [dB] Gain of the low range
Mid1 Freq
(Mid1
Frequency)
200, 250, 315, 400,
500, 630, 800, 1000,
1250, 1600, 2000,
2500, 3150, 4000,
5000, 6300, 8000 [Hz]
Frequency of the middle range 1
Mid1 Gain -15–+15 [dB] Gain of the middle range 1
Mid1 Q 0.5, 1.0, 2.0, 4.0, 8.0
Width of the middle range 1
Set a higher value to narrow the range to be
aected.
Mid2 Freq
(Mid2
Frequency)
200, 250, 315, 400,
500, 630, 800, 1000,
1250, 1600, 2000,
2500, 3150, 4000,
5000, 6300, 8000 [Hz]
Frequency of the middle range 2
Mid2 Gain -15–+15 [dB] Gain of the middle range 2
Mid2 Q 0.5, 1.0, 2.0, 4.0, 8.0
Width of the middle range 2
Set a higher value to narrow the range to be
aected.
High Freq
(High
Frequency)
2000, 2500, 3150,
4000, 5000, 6300,
8000, 10000, 12500,
16000 [Hz]
Frequency of the high range
High Gain -15–+15 [dB] Gain of the high range
Level 0–127 Output Level
02 Spectrum
This is a stereo spectrum. Spectrum is a type of lter which modies
the timbre by boosting or cutting the level at specic frequencies.
L in L out
R outR in
Parameter Value Explanation
Band1
(250 Hz)
-15–+15 [dB] Gain of each frequency band
Band2
(500 Hz)
Band3 (1000 Hz)
Band4 (1250 Hz)
Band5 (2000 Hz)
Band6 (3150 Hz)
Band7 (4000 Hz)
Band8 (8000 Hz)
Q 0.5, 1.0, 2.0, 4.0, 8.0
Simultaneously adjusts the width of the
adjusted ranges for all the frequency bands.
Level 0–127 Output Level
To Next Page
