90
MFX/IFX Parameters

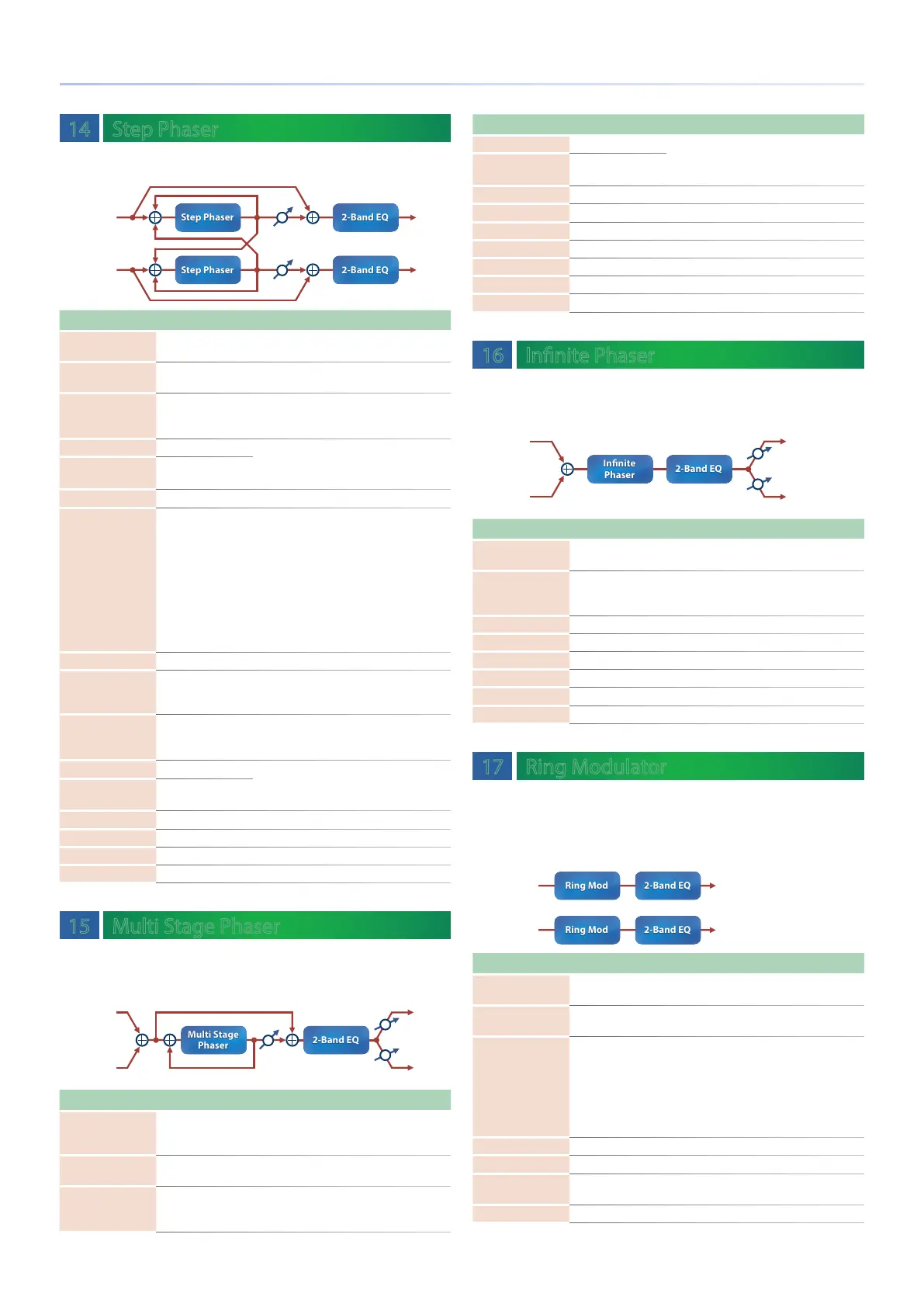

14 Step Phaser
This is a stereo phaser. The phaser eect will be varied gradually.
R outR in
Mix
L in L out
Mix
Parameter Value Explanation
Mode
4-STAGE, 8-STAGE,
12-STAGE
Number of stages in the phaser
Manual 0–127
Center frequency at which the sound is
modulated
Rate
(sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Rate (Hz) 0.05–10.00 [Hz]
Modulation rate
Rate
(note)
Note
&
“Note” (p. 120)
Depth 0–127 Depth of modulation
Polarity INVERSE, SYNCHRO
Selects whether the left and right phase
of the modulation will be the same or the
opposite.
INVERSE: The left and right phase will be
opposite.
When using a mono source, this spreads the
sound.
SYNCHRO: The left and right phase will be
the same.
Select this when inputting a stereo source.
Resonance 0–127 Amount of feedback
Cross Feedback -98–+98 [%]
Adjusts the proportion of the phaser sound
that is fed back into the eect. Negative (-)
settings will invert the phase.
Step Rate
(sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Step Rate (Hz) 0.10–20.00 [Hz]
Rate of the step-wise change in the phaser
eect
Step Rate
(note)
Note
&
“Note” (p. 120)
Mix 0–127 Level of the phase-shifted sound
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Level 0–127 Output Level
15 Multi Stage Phaser
Extremely high settings of the phase dierence produce a deep phaser
eect.
Multi Stage
Phaser
Multi Stage
Phaser
L out
R out
Pan L
Pan R
Mix
L in
R in
Parameter Value Explanation
Mode
4-STAGE, 8-STAGE,
12-STAGE, 16-STAGE,
20-STAGE, 24-STAGE
Number of stages in the phaser
Manual 0–127
Center frequency at which the sound is
modulated
Rate
(sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Parameter Value Explanation
Rate
(Hz) 0.05–10.00 [Hz]
Modulation rate
Rate
(note)
Note
&
“Note” (p. 120)
Depth 0–127 Depth of modulation
Resonance 0–127 Amount of feedback
Mix 0–127 Level of the phase-shifted sound
Pan L64–63R Stereo location of the output sound
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Level 0–127 Output Level
16 Innite Phaser
A phaser that continues raising/lowering the frequency at which the
sound is modulated.
L in
R in
Innite
Phaser
Innite
Phaser
L out
R out
Pan L
Pan R
Parameter Value Explanation
Mode 1, 2, 3, 4
Higher values will produce a deeper phaser
eect.
Speed -100–100
Speed at which to raise or lower the
frequency at which the sound is modulated
(+: upward / -: downward)
Resonance 0–127 Amount of feedback
Mix 0–127 Level of the phase-shifted sound
Pan L64–63R Stereo location of the output sound
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Level 0–127 Output Level
17 Ring Modulator
This is an eect that applies amplitude modulation (AM) to the input
signal, producing bell-like sounds. You can also change the modulation
frequency in response to changes in the volume of the sound sent into
the eect.
L in L out
R outR in
Parameter Value Explanation
Frequency 0–127
Adjusts the frequency at which modulation is
applied.
Sens 0–127
Adjusts the amount of frequency modulation
applied.
Polarity UP, DOWN
Determines whether the frequency
modulation moves towards higher
frequencies or lower frequencies.
UP: The lter will change toward a higher
frequency.
DOWN: The lter will change toward a lower
frequency.
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Balance D100:0W–D0:100W
Volume balance between the direct sound (D)
and the eect sound (W)
Level 0–127 Output Level
