Roland Groovebox MC-707 User Manual

7
Panel Descriptions
A DC IN jack
Connect the included AC adaptor here.
* Use the cord hook to secure the cord of the AC adaptor as shown in the
illustration.
B [POWER] switch
Turns the power on/o.
C USB port
Use a commercially available USB 2.0 cable (type B) to connect this
port to your computer. It can be used to transfer USB MIDI and USB
audio data. You must install the USB driver when connecting the
MC-707 to your computer. For details, refer to Readme.htm in the
downloaded le.
&
https://www.roland.com/support/
D MIDI port
Connect these to external MIDI equipment to transmit and receive
MIDI messages.
E SD card slot
With the factory settings, the SD card protector is fastened with
the included SD card inserted. If you want to take out the SD card,
remove the screws.
The SD card contains various data (settings, sounds, samples, etc.)
for this unit.
* Never turn o the power or remove the SD card while the screen indicates
“Processing...”
* Some memory card types or memory cards from some manufacturers may not
record or play back properly on the unit.
F EXT IN
These are audio input jacks.
EXT IN L/MONO, R jacks
You can connect a dynamic microphone or an instrument here.
Connect a microphone to the L/MONO jack.
[MIC/LINE] switch
Set this switch appropriately for the device that’s connected.
This switches the gain of the L/MONO jack.
G SEND (L, R) jacks/RETURN (L, R) jacks
These jacks let you connect an external eect unit and use it as a
track eect or total eect.
H ASSIGNABLE OUT jack
You can output a specic track from the ASSIGNABLE OUT jacks.
I MIX OUT (L/MONO, R) jacks
These are audio output jacks. Connect them to your amp or
monitor speakers.
If you’re outputting in mono, connect the L/MONO jack.
J PHONES jack
You can connect a set of headphones here.

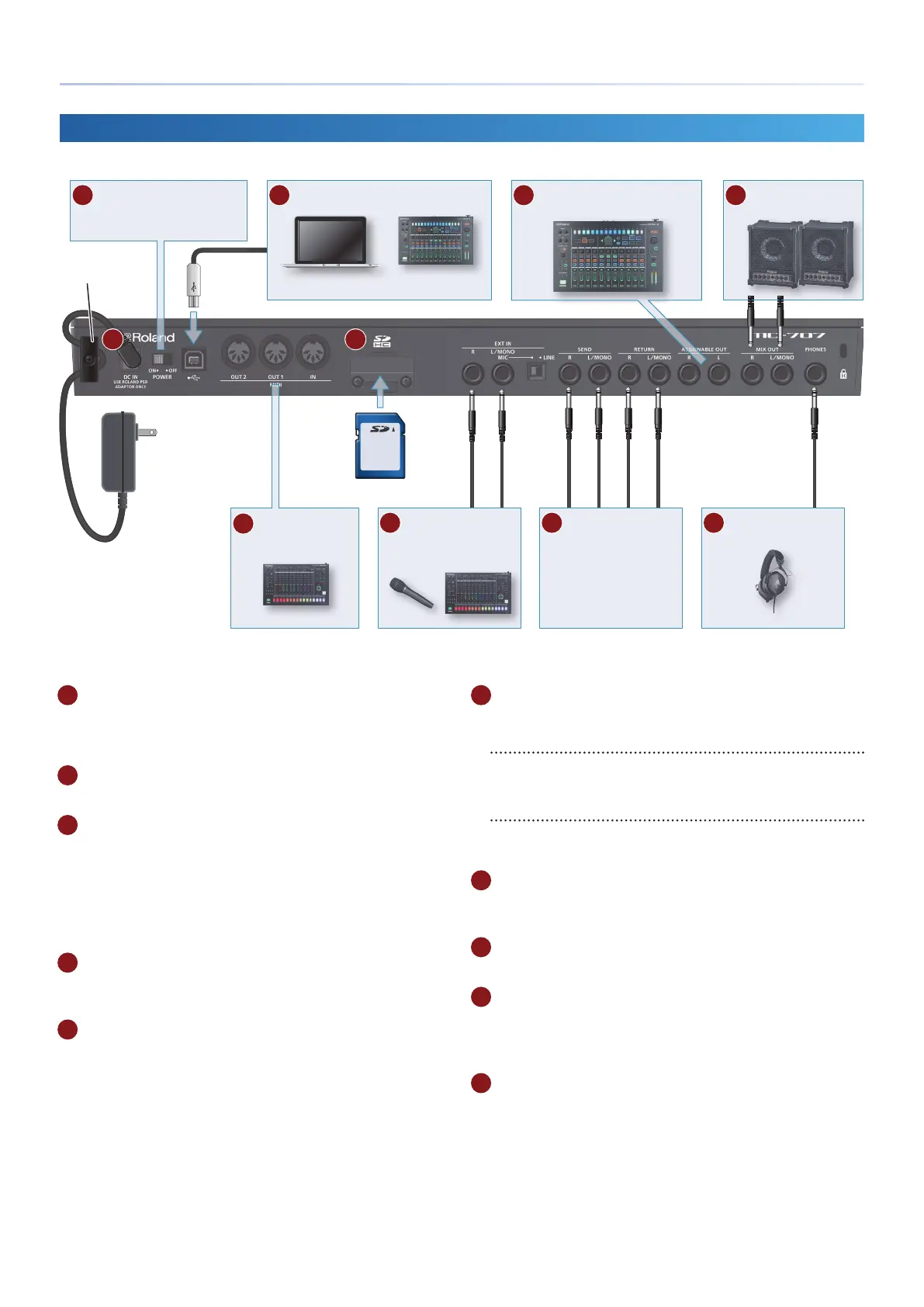

Rear Panel
(Connecting Your Equipment)
* To prevent malfunction and equipment failure, always turn down the volume, and turn o all the units before making any connections.
SD card
AC Adaptor
C USB port
G SEND jacks
RETURN jacks
Connect an external eect
unit.
J PHONES jack
I MIX OUT jacks
Computer MX-1
B [POWER] switch
&
“Turning the MC-707 On”
(p. 8)
A
E
D MIDI port
Connect MIDI devices.
Cord hook
F EXT IN jacks
Connect a microphone or
audio device.
H ASSIGNABLE OUT jacks
TR-8S

Roland Groovebox MC-707 Specifications

General

Product color	Black
USB direct playback	-
Built-in optical drive	No
USB port	Yes
USB connector type	USB Type-B
USB ports quantity	1
Compatible memory cards	SD, SDHC
Display type	LCD
Display resolution	256 x 80 pixels
Current	2 A
Power supply type	AC

Weight and Dimensions

Depth	263 mm
Width	426 mm
Height	60 mm
Weight	2100 g
