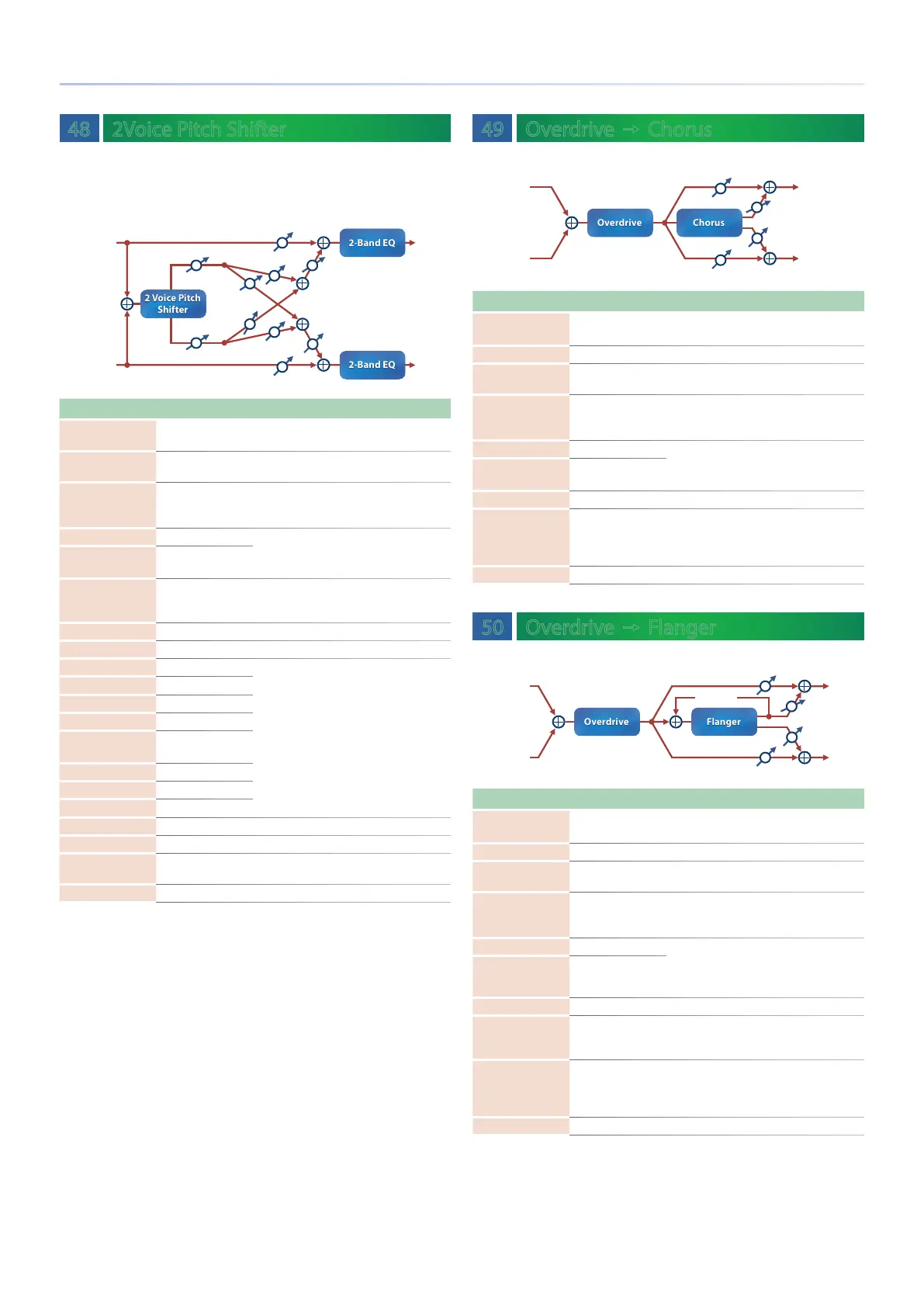

MFX/IFX Parameters
48 2Voice Pitch Shifter
Shifts the pitch of the original sound. This 2-voice pitch shifter has two
pitch shifters, and can add two pitch shifted sounds to the original
sound.
Pan 1 R
R out
L out
Balance W
Balance W
Balance D
L in
2 Voice Pitch
Shifter
2 Voice Pitch
Shifter
2-Band EQ2-Band EQ
2-Band EQ2-Band EQ
Balance D
Level 1
Pan 1 L
Pan 2 L
Pan 2 R
Level 2
R in
Parameter Value Explanation
Pitch1 Coarse -24–+12 [semi]
Adjusts the pitch of Pitch Shift 1 in semitone
steps.
Pitch1 Fine -100–+100 [cent]
Adjusts the pitch of Pitch Shift Pitch 1 in
2-cent steps.
Pitch1 Delay
(sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Pitch1 Delay (msec) 1–1300 [msec]
Adjusts the delay time from the direct sound
until the Pitch Shift 1 sound is heard.
Pitch1 Delay
(note)
Note
&
“Note” (p. 120)
Pitch1 Feedback -98–+98 [%]
Adjusts the proportion of the pitch shifted
sound that is fed back into the eect.
Negative (-) settings will invert the phase.
Pitch1 Pan L64–63R Stereo location of the Pitch Shift 1 sound
Pitch1 Level 0–127 Volume of the Pitch Shift 1 sound
Pitch2 Coarse -24–+12 [semi]
Settings of the Pitch Shift 2 sound.
The parameters are the same as for the Pitch
Shift 1 sound.
Pitch2 Fine -100–+100 [cent]
Pitch2 Delay
(sync sw) OFF, ON
Pitch2 Delay
(msec) 1–1300 [msec]
Pitch2 Delay
(note)
Note
&
“Note” (p. 120)
Pitch2 Feedback -98–+98 [%]
Pitch2 Pan L64–63R
Pitch2 Level 0–127
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Balance D100:0W–D0:100W
Volume balance between the direct sound (D)
and the pitch shifted sound (W)
Level 0–127 Output Level
49 Overdrive
0
Chorus
L in
R in
OverdriveOverdrive
ChorusChorus
L out
R out
Balance W
Balance W
Balance D
Balance D
Parameter Value Explanation
Overdrive Drive 0–127
Degree of distortion
Also changes the volume.
Overdrive Pan L64–63R Stereo location of the overdrive sound
Chorus Pre Delay 0.0–100 [msec]
Adjusts the delay time from the direct sound
until the chorus sound is heard.
Chorus Rate
(sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Chorus Rate (Hz) 0.05–10.00 [Hz]
Frequency of modulation
Chorus Rate
(note)
Note
&
“Note” (p. 120)
Chorus Depth 0–127 Depth of modulation
Chorus Balance D100:0W–D0:100W
Adjusts the volume balance between the
sound that is sent through the chorus (W)
and the sound that is not sent through the
chorus (D).
Level 0–127 Output Level
50 Overdrive
0
Flanger
L out
R out
FlangerFlanger
Balance W
Feedback
Balance W
Balance D
Balance D
OverdriveOverdrive
L in
R in
Parameter Value Explanation
Overdrive Drive 0–127
Degree of distortion
Also changes the volume.
Overdrive Pan L64–63R Stereo location of the overdrive sound
Flanger Pre Delay 0.0–100 [msec]
Adjusts the delay time from the direct sound
until the anger sound is heard.
Flanger Rate
(sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Flanger Rate (Hz) 0.05–10.00 [Hz]
Frequency of modulation
Flanger Rate
(note)
Note
&
“Note” (p. 120)
Flanger Depth 0–127 Depth of modulation
Flanger Feedback -98–+98 [%]
Adjusts the proportion of the anger sound
that is fed back into the eect. Negative (-)
settings will invert the phase.
Flanger Balance D100:0W–D0:100W
Adjusts the volume balance between the
sound that is sent through the anger (W)
and the sound that is not sent through the
anger (D).
Level 0–127 Output Level
