Roland Groovebox MC-707 User Manual

119

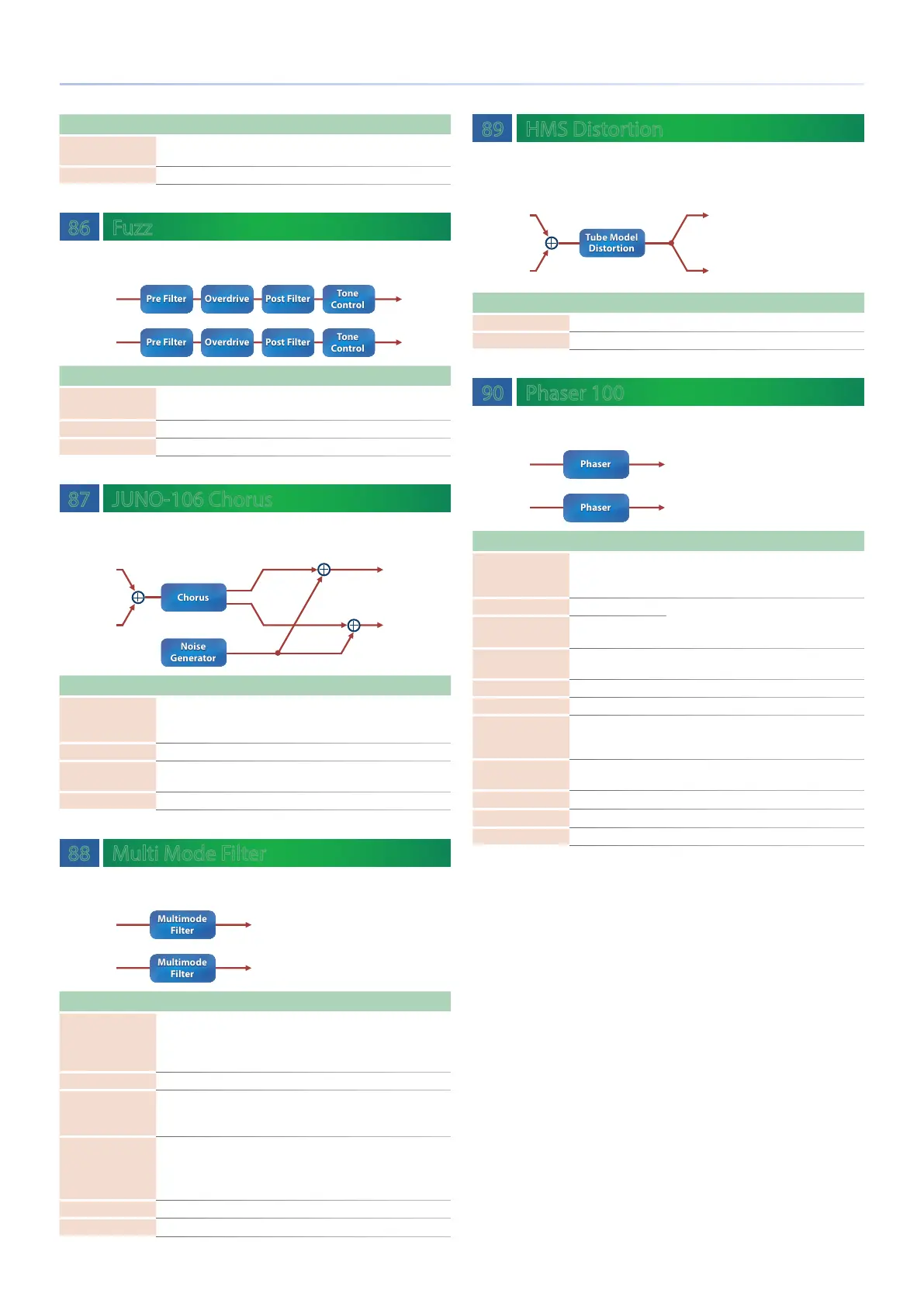

MFX/IFX Parameters
Parameter Value Explanation
Drive Balance D100:0W–D0:100W
Volume balance between the dry sound (D)
and eect sound (W)
Level 0–127 Output Level
86 Fuzz
Adds overtones and intensely distorts the sound.
Pre FilterPre Filter
Pre FilterPre Filter
Tone
Control
Tone
Control
Tone
Control
Tone
Control
OverdriveOverdrive
OverdriveOverdrive
Post FilterPost Filter
Post FilterPost Filter
L in L out
R outR in
Parameter Value Explanation
Drive 0–127
Adjusts the amount of distortion.
This also changes the volume.
Tone 0–127 Sound quality of the Overdrive eect
Level 0–127 Output Level
87 JUNO-106 Chorus
This models the chorus eects of the Roland JUNO-106.
ChorusChorus
L out
R out
L in
R in
Noise
Generator
Noise
Generator
Parameter Value Explanation
Mode I, II, I+II, JX I, JX II
Type of Chorus
I+II: The state in which two buttons are
pressed simultaneously.
Noise Level 0–127 Volume of the noise produced by chorus
Balance D100:0W–D0:100W
Volume balance between the dry sound (D)
and eect sound (W)
Level 0–127 Output Level
88 Multi Mode Filter
This is a lter that is adjusted for eective use in a DJ performance.
Multimode
Filter
Multimode
Filter
Multimode
Filter
Multimode
Filter
L in L out
R outR in
Parameter Value Explanation
Filter Type
LPF/HPF, LPF, HPF,
BPF
Type of lter
LPF/HPF: The lter type is automatically
switched according to the Filter Tone
parameter value.
Filter Tone 0–255 Frequency at which the lter operates
Filter Color 0–255
Filter resonance level
Higher values more strongly emphasize the
region of the operating frequency.
Filter Slope -12, -24, -36 [dB]
Amount of attenuation per octave
-12 dB: gentle
-24 dB: steep
-36 dB: extremely steep
Filter Gain 0–+12 [dB] Amount of boost for the lter output
Level 0–127 Output Level
89 HMS Distortion
This is a distortion-type eect that models the vacuum tube amp
section of a rotary speaker of the past.
Tube Model
Distortion
Tube Model
Distortion
L out
R out
L in
R in
Parameter Value Explanation
Distortion 0–127 Strength of distortion
Level 0–127 Output Level
90 Phaser 100
This simulates an analog phaser of the past.
PhaserPhaser
PhaserPhaser
L in L out
R outR in
Parameter Value Explanation
Rate
(sync sw) OFF, ON
If this is ON, the rate synchronizes with the
tempo of the rhythm.
&
“TEMPO” (p. 52)
Rate (Hz) 0.05–10.00 [Hz]
Modulation rate
Rate
(note)
Note
&
“Note” (p. 120)
Duty -50–50
Adjusts the ratio of speeds at which the
modulation rises or falls.
Min 0–100 Lower limit reached by modulation
Max 0–100 Upper limit reached by modulation
Manual Sw OFF, ON
Applies modulation according to the value
of the Manual parameter, rather than
modulating automatically.
Manual 0–100
Center frequency at which the sound is
modulated
Resonance 0–66 Amount of feedback
Mix 0–127 Level of the phase-shifted sound
Level 0–127 Output Level
