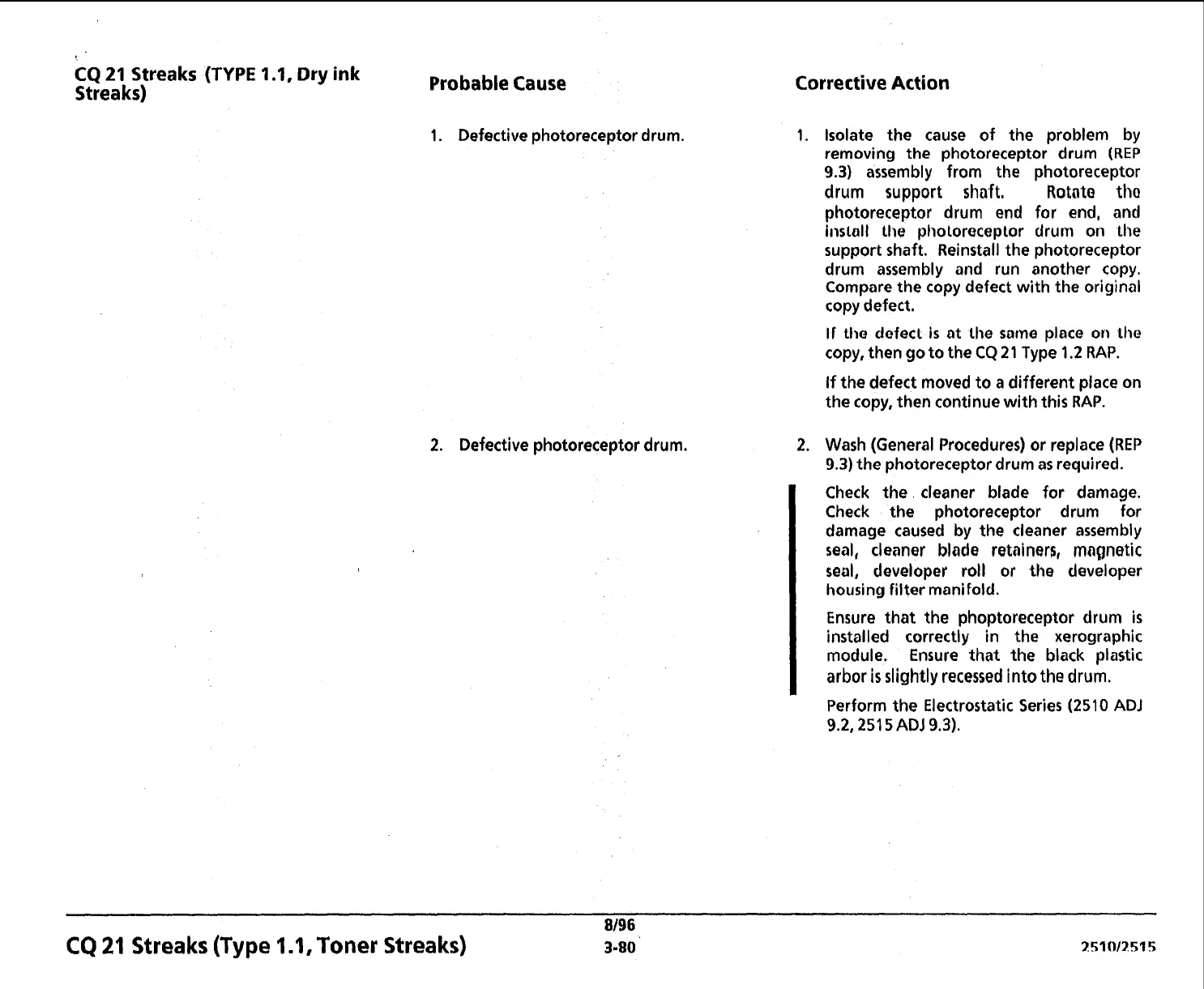

CQ 21 Streaks (TYPE 1 .I, Dry ink
Streaks)
Probable
Cause
Corrective Action
1. Defective photoreceptor drum.
2. Defective photoreceptor drum.
Isolate the cause of the problem by
removing the photoreceptor drum
(REP
9.3) assembly from the photoreceptor
drum support
shaft, Rotnto tho
photoreceptor drum end for end, and
install he pholoreceplor drum on
he
support shaft. Reinstall the photoreceptor
drum assembly and run another copy.
Compare the copy defect with the original
copy defect.
If tha dofecl is at the same place on lhe
copy, then go to the CQ 21 Type 1.2 RAP.
If the defect moved to a different place on
the copy, then continue with this RAP.
Wash (General Procedures) or replace
(REP
9.3) the photoreceptor drum as required.
Check the cleaner blade for damage.
Check the photoreceptor drum for
damage caused by the cleaner assembly
seal, cleaner
blade retainers, rnngnstic
seal, developer roll or the developer
housing
filter manifold.
Ensure that the phoptoreceptor drum
is
installed correctly in the xerographic
module. Ensure that the black plastic
arbor
is slightly recessed into the drum.
Perform the Electrostatic Series
(251 0 ADJ
9.2,2515 ADJ 9.3).
