REP 9.7 Dispense Arm Return
Removal
Spring
kart List on (2510) PL 9.4 (251 5) PL 9.5
WARNING
Disconnect the power cord.
DISPENSE ARM
TO CLEAR THE
I

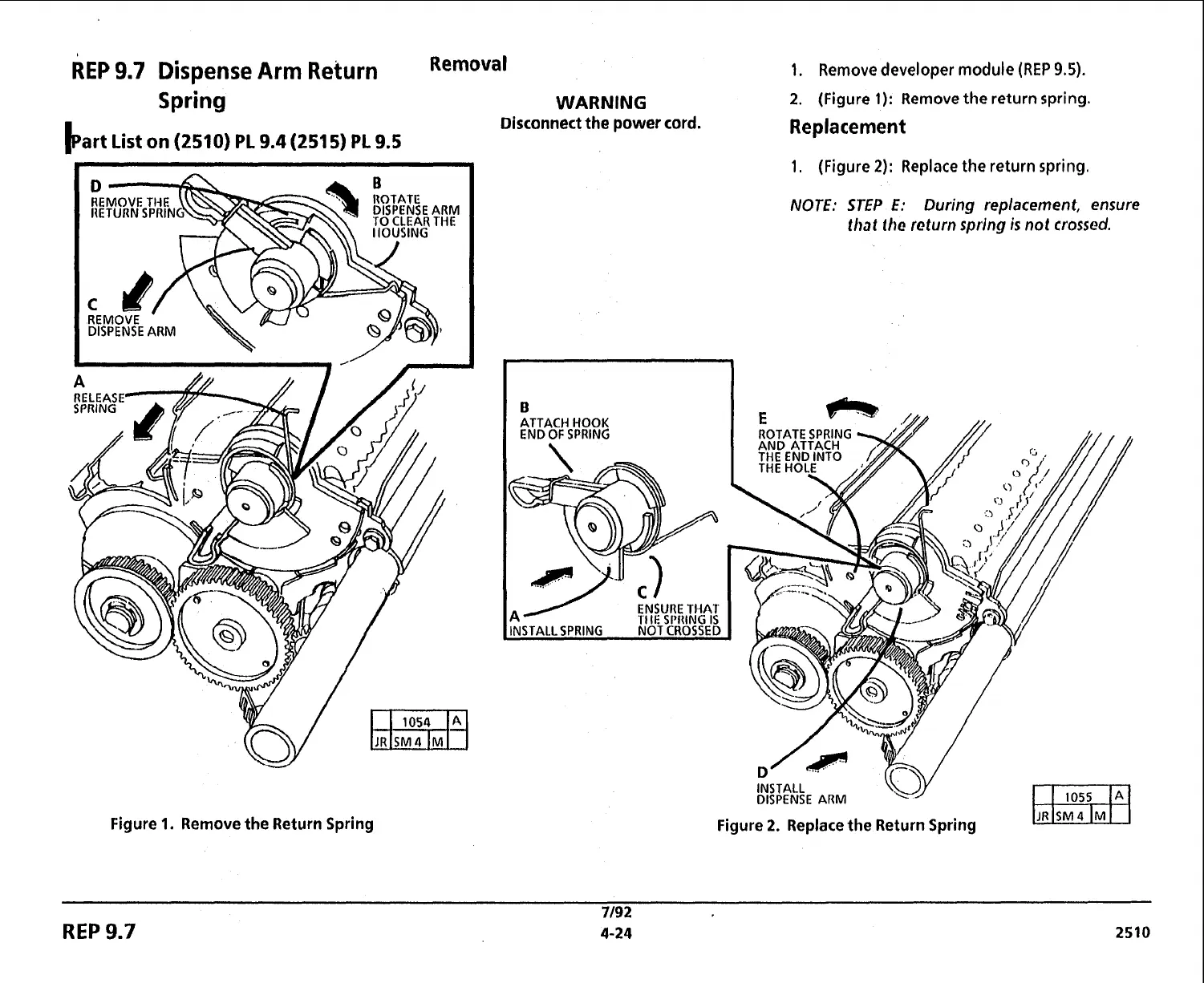

Figure 1. Remove the Return Spring
B
ATTACH HOOK
END OF SPRING
NSTALL SPRING NOT CROSSED
1. Remove developer module (REP 9.5).
2. (Figure 1): Remove the return spring.
Replacement
1. (Figure 2): Replace the return spring.
NOTE: STEP E:
During replacement, ensure
that the return spring is not crossed.
INSTALL
DISPENSE ARM
'b!Y
IJR ISM 4 IM I
)
Figure 2. Replace the Return Spring
7/92
REP 9.7 4-24 2510
