2.
Question the customer to determine the average
3.
(Figure
2):
Adjust the oil dispenser meter shields:
monthly copy volume that
is
run on the copier.
a.
If
the average monthly copy volume is
400
NOTE:
The openings between the metering shields are
meters per month, adjust the openings
set to
114
in (6mm) in manufacturing.
between the shields to
114
in (6mm).

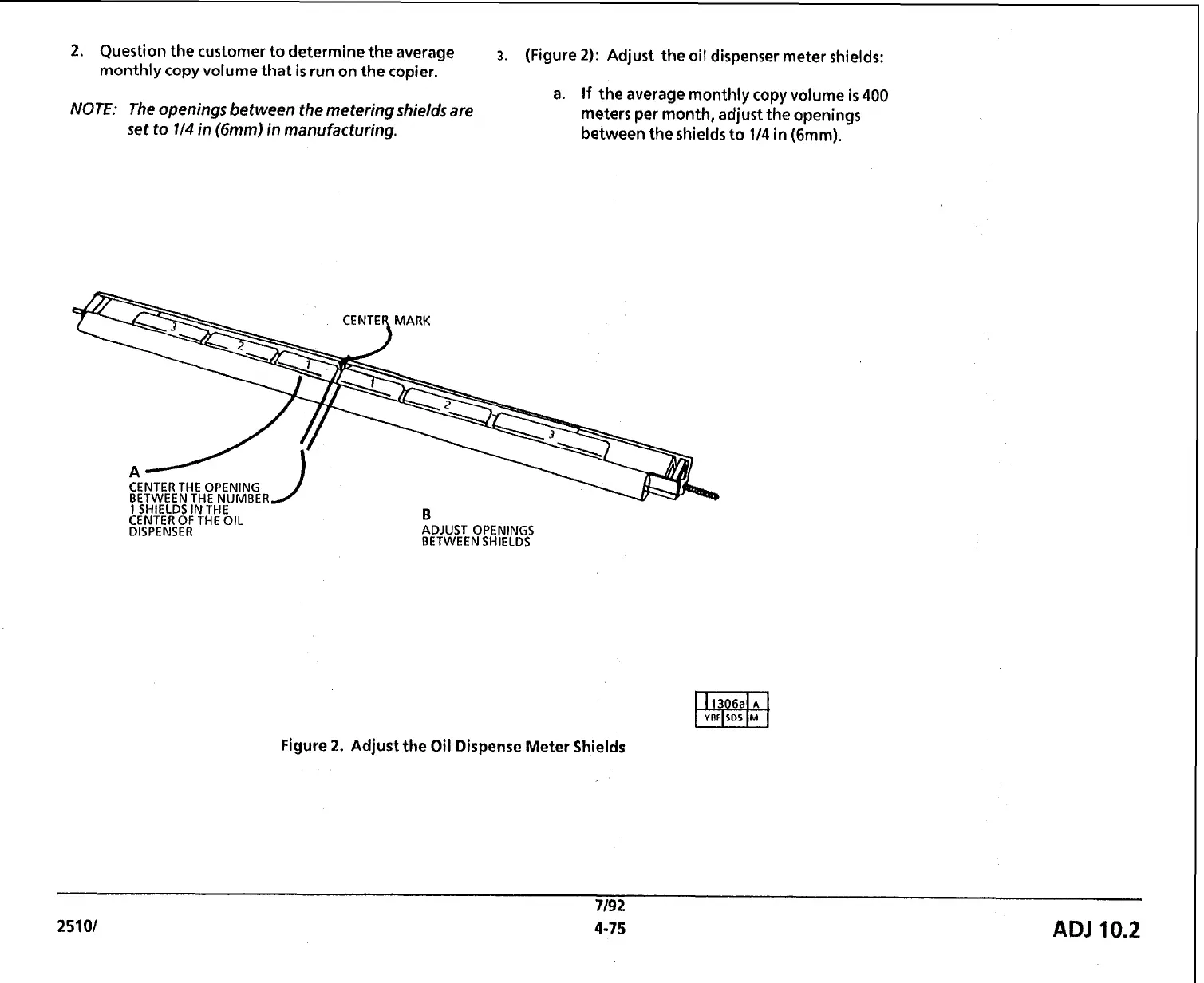

Figure
2.
Adjust the
Oil
Dispense Meter Shields
B
ADJUST OPENINGS
BETWEEN SHIELDS
ADJ
10.2
