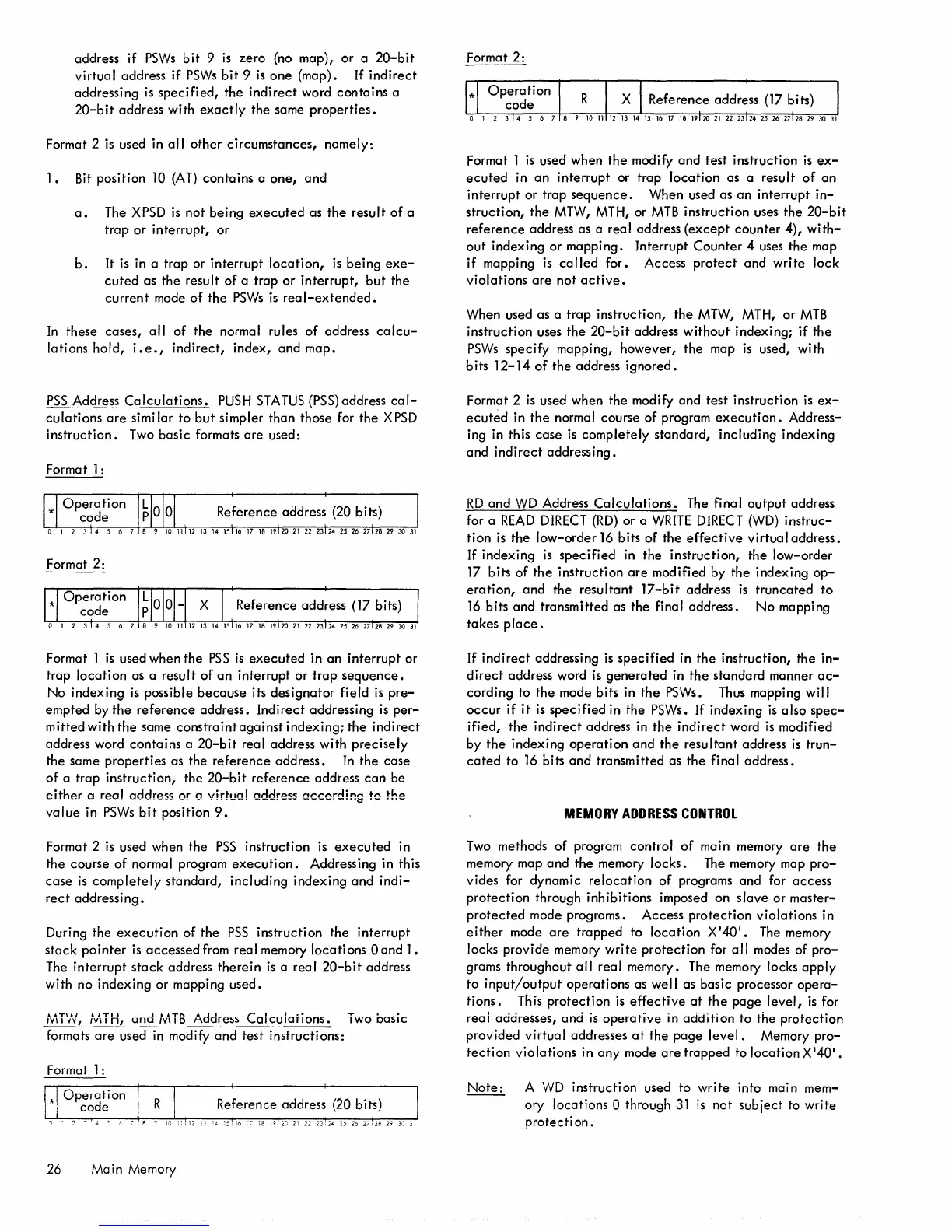

address if PSWs bit 9 is zero (no map), or a 20-bit
virtual address if PSWs bit 9 is one (map). If indirect
addressing is specified, the indirect word contains a
20-bit address with exactly the same properties.
Format 2 is used in all other circumstances, namely:
1. Bit position 10 (AT) contains a one, and
a. The XPSD is not being executed as the result of a
trap or interrupt, or
b. It is in a trap or interrupt location, is being exe-
cuted as the result of a trap or interrupt, but the
current mode of the PSWs is real-extended.
In these cases, all of the normal rules of address calcu-
lations hold, i.e., indirect, index, and map.
PSS Address Calculations. PUSH STATUS (PSS) address cal-
culations are simi lar to but simpler than those for the X PSD
instruction. Two basic formats are used:
Format 1:
Format 2:
Format 1
is used when the PSS is executed in an interrupt or
trap
locati on as a resu I t of an interrupt or trap sequence.
No indexing is possible because its designator field is pre-
empted by the reference address. Indirect addressing is per-
mitted with the same constraint against indexing; the indirect
address word contains a 20-bit real address with precisely
the same properties as the reference address. In the case
of a trap instruction, the 20-bit reference address can be
either a reo I oddre5s or a virtua! address accordlng to the
value in PSWs bit position 9.
Format 2 is used when the PSS instruction is executed in
the course of normal program execution. Addressing in this
case is completely standard, including indexing and indi-
rect addressing.
During the execution of the PSS instruction the interrupt
stack pointer is accessed from real memory locations Oand 1.
The interrupt stack address therein is a real 20-bit address
with no
indexing or mapping used.
tvHW, MTH, uno MTS Addre:>:> Calculations. iwo basic
formats
are used in modify and test instructions:
Format 1:
2i 2, 2J,24 2) 20 2.;';28 29
26 Main Memory
Format
2:
Format 1 is used when the modify and test instruction is ex-
ecuted in an interrupt or trap location as a result of an
interrupt or trap sequence. When used as an interrupt in-
struction, the MTW, MTH, or MTB instruction uses the 20-bit
reference address as a real address (except counter 4), with-
out indexing or mapping. Interrupt Counter 4 uses the map
if mapping is called for. Access protect and write lock
violations are not active.
When used as a trap instruction, the MTW, MTH, or MTB
instruction uses the 20-bit address without indexing; if the
PSWs specify mapping, however, the map is used, with
bits 12-14 of the address ignored.
Format 2 is used when the modify and test instruction is ex-
ecuted in the normal course of program execution. Address-
ing in this
case is completely standard, including indexing
and indirect addressing.
RD and WD Address Calculations. The final output address
for a
READ DIRECT (RD) or a WRITE DIRECT (WD) instruc-
tion is the low-order 16 bits of the effective virtual address.
If indexing is specified in the instruction, the low-order
17 bits of the instruction are modified by the indexing op-
eration, and the resultant 17-bit address is truncated to
16 bits and transmitted as the final address. No mapping
takes place.
If indirect addressing is specified in the instruction, the in-
direct address word is generated in the standard manner ac-
cording to the mode bits in the PSWs. Thus mapping will
occur if it is specified in the PSWs. If indexing is also spec-
ified, the indirect address in the indirect word is modified
by
the indexing operation and the resultant address is trun-
cated to 16 bits and transmitted as the final address.
MEMORY ADDRESS CONTROL
Two methods of program control of main memory are the
memory map and the memory locks. The memory map pro-
vides for dynamic relocation of programs and for access
protection through inhibitions imposed on slave or master-
protected mode programs. Access protection violations in
either mode are trapped to location X'40'. The memory
locks provide memory
write protection for all modes of pro-
grams throughout a I I rea I memory. The memory locks apply
to input/output operations as well as basic processor opera-
tions. This protection is effective at the page level, is for
reai addresses, and is operative in addition to the protection
provided virtual addresses at the page level. Memory pro-
tection violations in any mode are trapped to location X'40' .
Note: A WD instruction used to write into main mem-
ory locations
a through 31 is not subject to write
protection.
