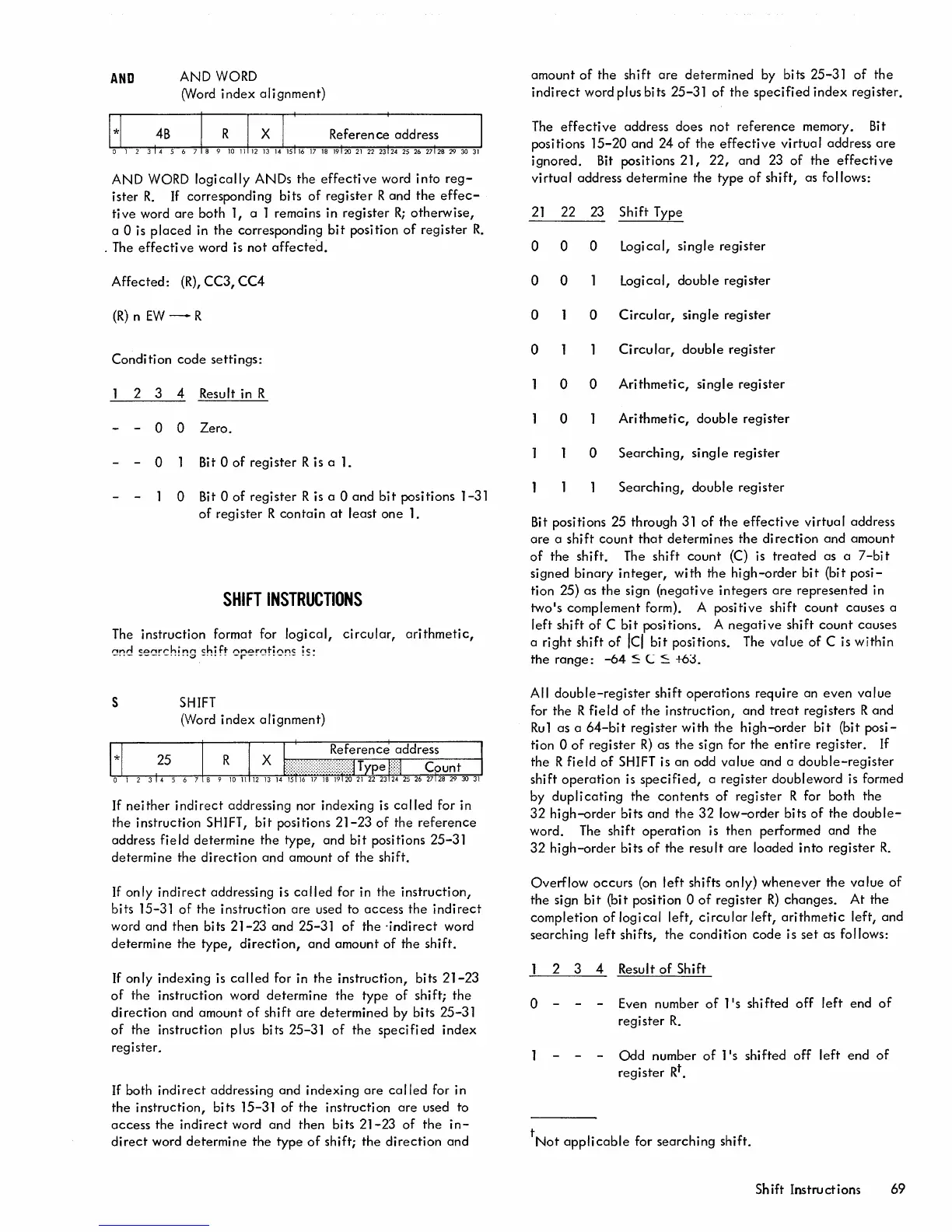

AND
AND WORD
rylord index alignment)
AND WORD logically ANDs the effective word into reg-
ister R. If corresponding bits of register R and the effec-
ti ve word are both 1, a 1 remains in register R; otherwise,
a 0 is placed in the corresponding bit position of register R .
. The
effective word is not affected.
Affected: (R), CC3, CC4
(R) n EW-R
Condition code settings:
2 3 4 Result in R
- 0 0 Zero.
-
0 Bit 0 of register R is a 1.
o Bit 0 of register R is a 0 and bit positions 1-31
of register R contain at least one 1.
SHIFT INSTRUCTIONS
The instruction format for logical, circular, arithmetic,
nnrl "on,.,..h;nn "hift t"Ino,.ntit"lnc: ic:·
- .. - --_. -·····v _ ..... -r-' ---._ .. - .--
S SHIFT
(Word index alignment)
If
neither indirect addressing nor indexing is called for in
the instruction SHIFT,
bit positions 21-23 of the reference
address field determine the type, and bit positions 25-31
determine the direction and amount of the shift.
If only indirect addressing is called for in the instruction,
bits 15-31 of the instruction are used to access the indirect
word and then bits 21-23 and 25-31 of the -indirect word
determine the type, direction, and amount of the shift.
If only indexing is called for in the instruction, bits 21-23
of the instruction word determine the type of shift; the
direction and amount of shift are determined by bits 25-31
of the instruction plus bits 25-31 of the specified index
register.
If both indirect addressing and indexing are called for in
the instruction, bits 15-31 of the instruction are used to
access the indirect word and then bits 21-23 of the in-
direct word determine the type of shift; the direction and
amount
of the shift are determined by bits 25-31 of the
indirect word plus bits 25-31 of the specified index register.
The
effective address does not reference memory. Bit
positions
15-20 and 24 of the effective virtual address are
ignored. Bit positions 21, 22, and 23 of the effective
virtual address determine the type of shift, as follows:
21 22 23 Shift Type
0 0
0
logical,
single register
0 0
logical,
double register
0 0
Circular,
single register
0
Circular,
double register
0 0
Arithmetic,
single register
0
Ari thmeti c, double register
0
Searching, single register
Searching, double register
Bit positions 25 through 31 of the effective virtual address
are a shift count that determines the direction and amount
of the shift. The shift count (C) is treated as a 7-bit
signed binary integer, with the high-order bit (bit posi-
tion 25) as the sign (negative integers are represented in
twols complement form). A positive shift count causes a
left
shift of C bit positions. A negative shift count causes
a
right shift of Ici bit positions. The value of C is within
the range: -64 ~ C S: +63.
All double-register shift operations require an even value
for the R field of the instruction, and treat registers Rand
Rul as a 64-bit register with the high-order bit (bit posi-
tion 0 of register R) as the sign for the entire register. If
the R field of SHIFT is an odd value and a double-register
shift operation is specified, a register doubleword is formed
by
duplicating the contents of register R for both the
32 high-order bits and the 32 low-order bits of the double-
word. The shift operation is then performed and the
32 high-order bits of the result are loaded into register R.
Overflow occurs (on left shifts only) whenever the value of
the sign bit (bit position 0 of register R) changes. At the
completion of logical left, circular left, arithmetic left, and
searching
left shifts, the condition code is set as follows:
2 3 4 Result
of Shift
o Even number of lis shifted off left end of
register R.
Odd number of lis shifted off left end of
register Rt.
tNot applicable for searching shift.
Shift Instructions 69
