Xilinx KC705 User Manual

KC705 Evaluation Board 50
UG810 (v1.8) March 20, 2018 www.xilinx.com
Chapter 1: KC705 Evaluation Board Features
Table 1-22 lists the connections between the codec and the HDMI connector P6.
For more information about the ADV7511KSTZ-P part, see [Ref 17].
LCD Character Display
[Figure 1-2, callout 19]

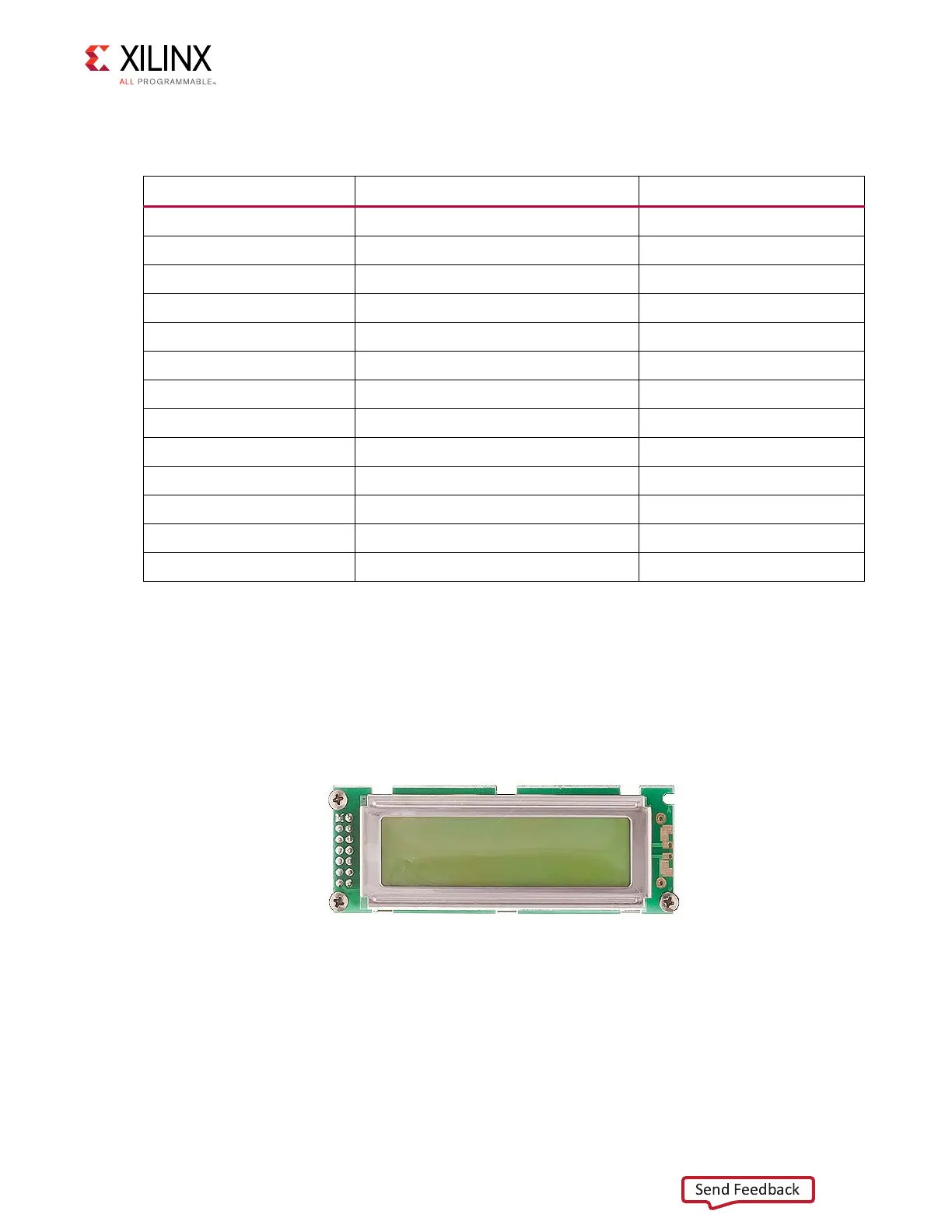

A 2-line by 16-character display is provided on the KC705 board (Figure 1-20).
Table 1-22: ADV7511 to HDMI Connector Connections
ADV7511 (U65) Schematic Net Name HDMI Connector P6 Pin
36 HDMI_D0_P 7
35 HDMI_D0_N 9
40 HDMI_D1_P 4
39 HDMI_D1_N 6
43 HDMI_D2_P 1
42 HDMI_D2_N 3
33 HDMI_CLK_P 10
32 HDMI_CLK_N 12
54 HDMI_DDCSDA 16
53 HDMI_DDCSCL 15
52 HDMI_HEAC_P 14
51 HDMI_HEAC_N 19
48 HDMI_CRC 13
X-Ref Target - Figure 1-20
Figure 1-20: LCD Display
UG810_c1_20_031214
LCD Display (16 x 2)
Send Feedback
