Xilinx KC705 User Manual

KC705 Evaluation Board 79
UG810 (v1.8) March 20, 2018 www.xilinx.com
Chapter 1: KC705 Evaluation Board Features
Jumper J47 can be used to select either an external differential voltage reference
(XADC_VREF) or on-chip voltage reference (jumper J47 2–3) for the analog-to-digital
converter.
For external measurements an XADC header (J46) is provided. This header can be used to
provide analog inputs to the FPGA dedicated VP/VN channel, and to the
VAUXP[0]/VAUXN[0], VAUXP[8]/VAUXN[8] auxiliary analog input channels. Simultaneous
sampling of Channel 0 and Channel 8 is supported.
A user-provided analog signal multiplexer card can be used to sample additional external
analog inputs using the 4 GPIO pins available on the XADC header as multiplexer address
lines. Figure 1-38 shows the XADC header connections.
Table 1-34 describes the XADC header J46 pin functions.
X-Ref Target - Fig ure 1-38

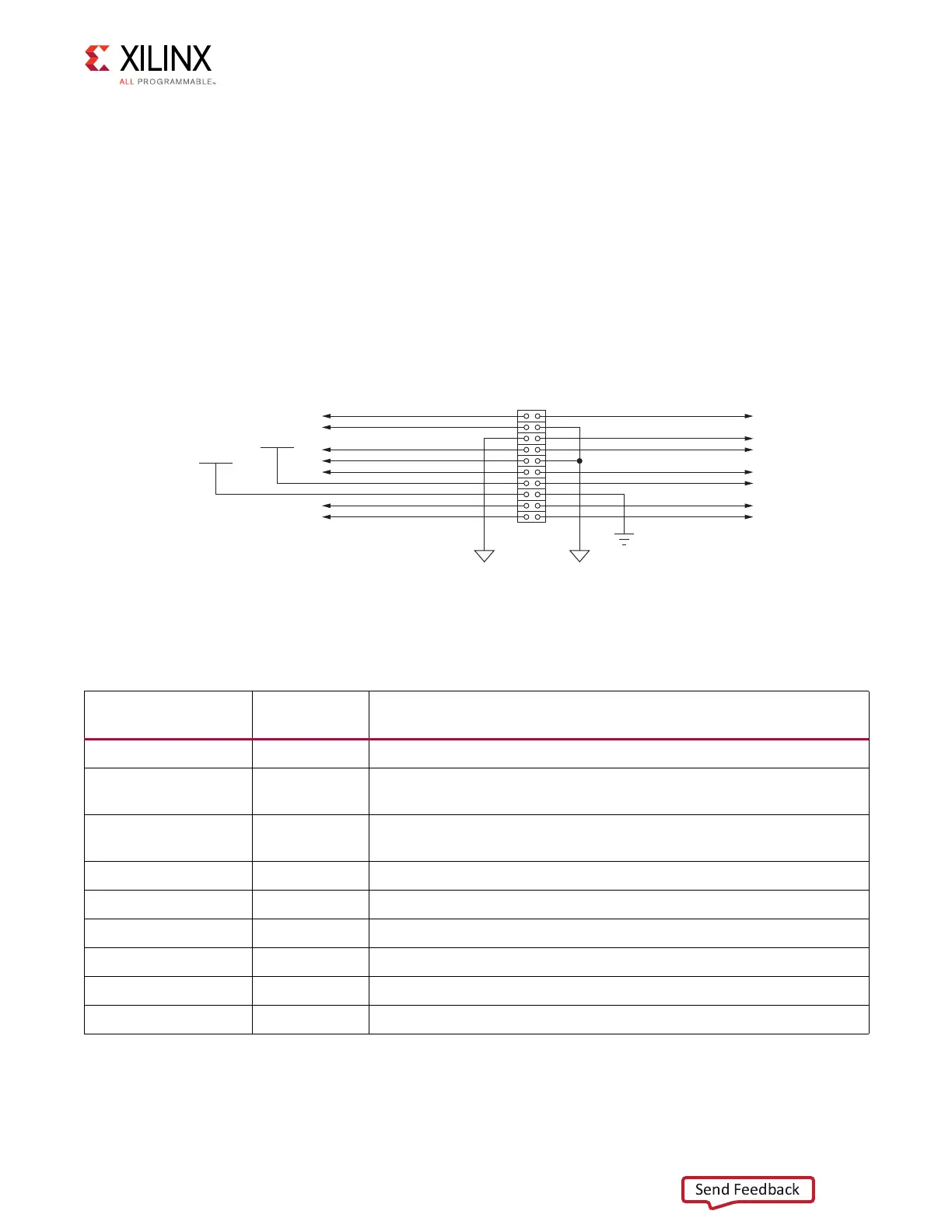

Figure 1-38: XADC Header (J46)
UG810_c1_38_031214
XADC_VP
XADC_VAUX0N
XADC_VAUX8P
XADC_DXN
XADC_VCC_HEADER
XADC_VN
XADC_VAUX0P
XADC_VAUX8N
XADC_DXP
XADC_VREF
XADC_GPIO_0
XADC_GPIO_2
XADC_GPIO_1
XADC_GPIO_3
J46
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
20
GND
XADC_AGNDXADC_AGND
XADC_VCC5V0
VADJ
Table 1-34: XADC Header J46 Pinout
Net Name
J46 Pin
Number
Description
VN, VP 1, 2 Dedicated analog input channel for the XADC.
XADC_VAUX0P, N 3, 6 Auxiliary analog input channel 0. Also supports use as I/O inputs when
anti alias capacitor is not present.
XADC_VAUX8N, P 7, 8 Auxiliary analog input channel 8. Also supports use as I/O inputs when
anti alias capacitor is not present.
DXP, DXN 9, 12 Access to thermal diode.
XADC_AGND 4, 5, 10 Analog ground reference.
XADC_VREF 11 1.25V reference from the board.
XADC_VCC5V0 13 Filtered 5V supply from board.
XADC_VCC_HEADER 14 Analog 1.8V supply for XADC.
VADJ 15 VCCO supply for bank which is the source of DIO pins.
