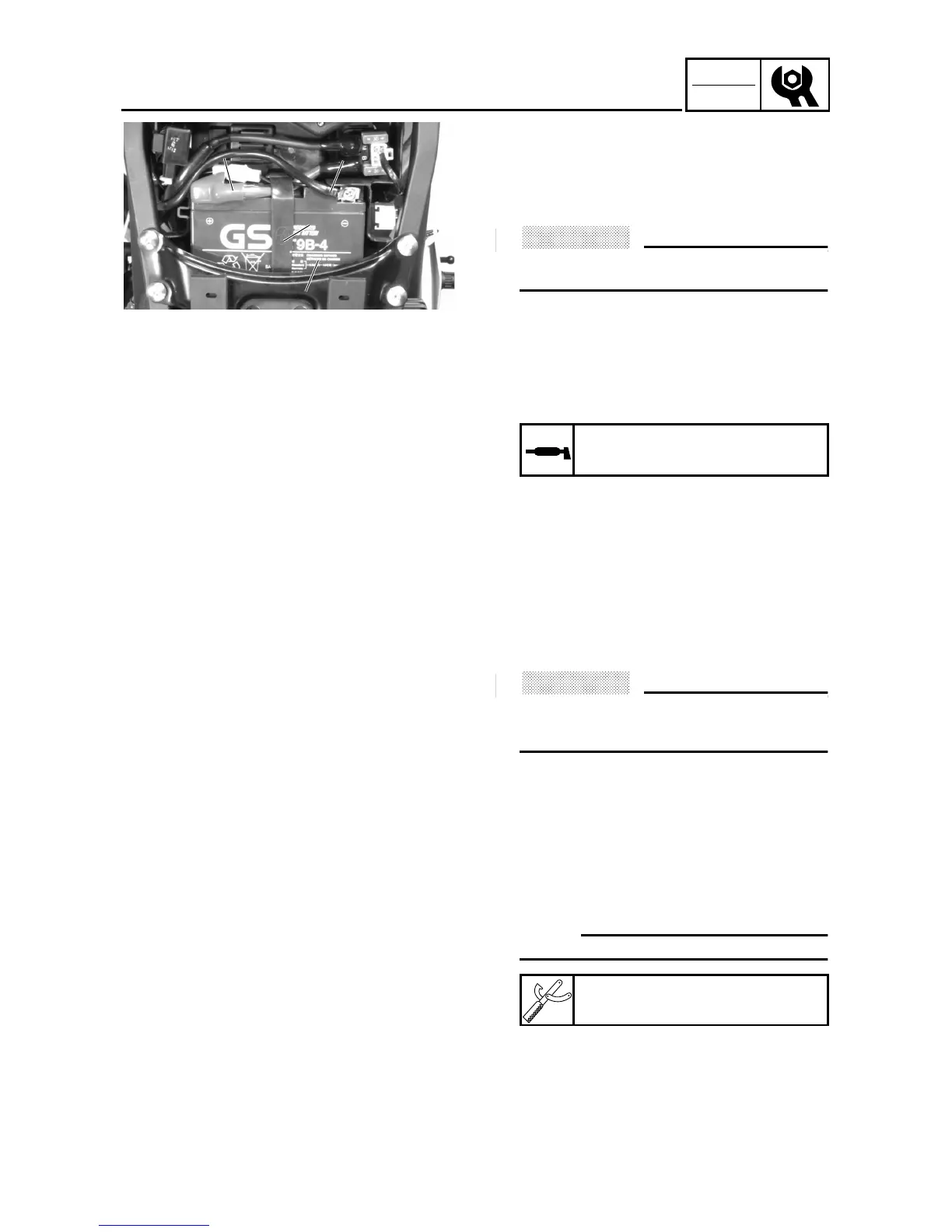

CHECKING AND CHARGING THE BATTERY/
CHECKING THE FUSES
6. Install:
• battery
7. Connect:
• battery leads
(to the battery terminals)
ACHTUNG:
CAUTION:
First, connect the positive lead 1, then
the negative lead 2.
8. Check:
• battery terminals
Dirt → Clean with a wire brush.
Loose connection → Connect properly.
9. Lubricate:
• battery terminals
10.Install:
• battery band 3
• rear cowling bracket 4
• rear cowling
Refer to “COWLINGS”.
EB305040
CHECKING THE FUSES
The following procedure applies to all of
the fuses.
ACHTUNG:
CAUTION:
To avoid a short circuit, always set the
main switch to “OFF” when checking or
replacing a fuse.
1. Remove:
• rear cowling
Refer to “COWLINGS”.
2. Check:
• continuity
▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼
a. Connect the pocket tester to the fuse
and check the continuity.
NOTE:
Set the pocket tester selector to “Ω × 1”.
b. If the pocket tester indicates “∞”,
replace the fuse.
▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲
Recommended lubricant
Dielectric grease
Pocket tester
90890-03112
2

2

1

1

3

3

4

4

