GENERATOR
EB410110

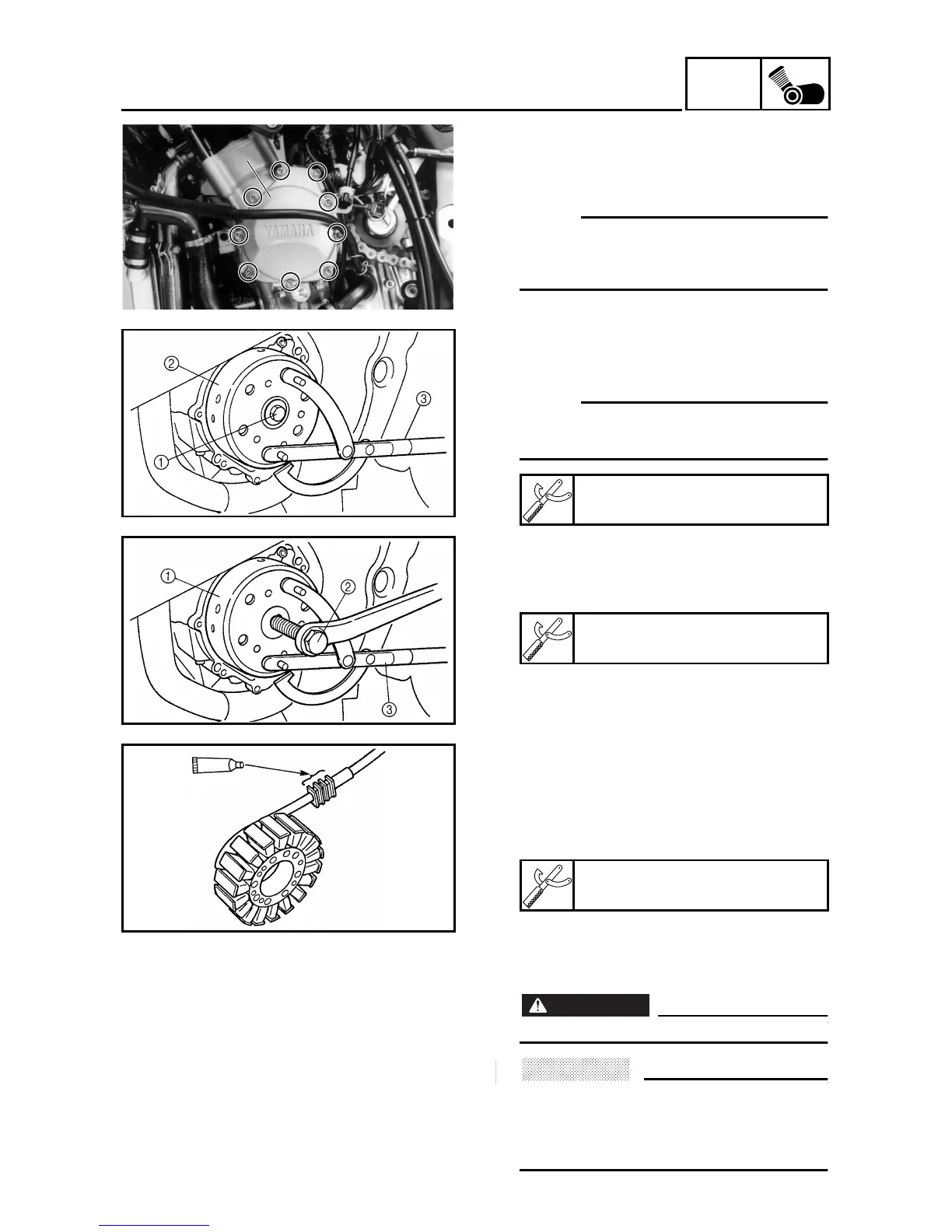

REMOVING THE GENERATOR
1. Remove:
• generator rotor cover 1
NOTE:
Loosen each bolt 1/4 of a turn at a time,
in stages and in a crisscross pattern.
After all of the bolts are fully loosened,
remove them.
1

1

2. Remove:
• generator rotor bolt 1
• washer
NOTE:
While holding the generator rotor 2
with the rotor holding tool 3 , loosen the
generator rotor bolt.
Rotor holding tool
90890-01235
3. Remove:
• generator rotor 1
(with the flywheel puller 2 and rotor
holding tool 3 )
Flywheel puller
90890-01080
EB410700
INSTALLING THE GENERATOR
1. Apply:
• sealant
(onto the stator coil assembly lead
grommet)
2. Install:
• generator rotor
• washer
• generator rotor bolt
WARNING
WARNING
Always use a new generator rotor bolt.
ACHTUNG:
CAUTION:
• Clean the tapered portion of the crank-
shaft and the generator rotor hub with
lacquer thinner.
• Lubricate the generator rotor bolt
threads with engine oil.
Yamaha bond No. 1215
90890-85505
