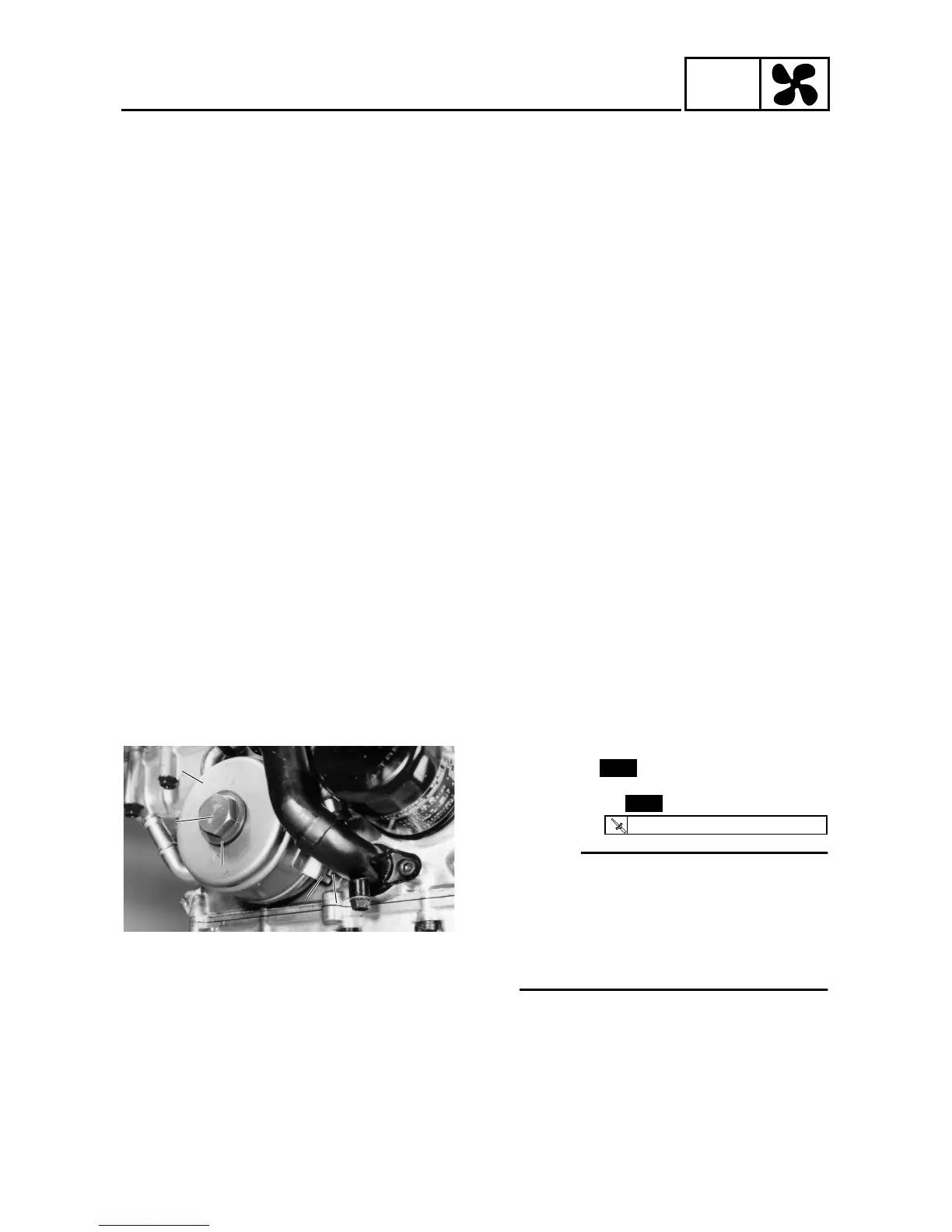

5 - 10
COOL
OIL COOLER
EB501010
CHECKING THE OIL COOLER
1. Check:
• oil cooler
Cracks/damage → Replace.
2. Check:
• oil cooler inlet hose
• oil cooler outlet hose
Cracks/damage/wear → Replace.
3. Check:
• water jacket joint
• water jacket joint inlet hose
• water pump outlet hose
Cracks/damage → Replace.
EB501020
INSTALLING THE OIL COOLER
1. Clean:
• mating surfaces of the oil cooler and
the crankcase
(with a cloth dampened with lacquer
thinner)
2. Install:
• O-ring
• oil cooler 1
• gasket 2
• bolt 3
NOTE:
• Before installing the oil cooler, lubri-
cate the oil cooler bolt and O-ring with
a thin coat of engine oil.
• Make sure that the O-ring is positioned
properly.
• Align the projection a on the oil
cooler with the projection b in the
crankcase.
1

1

3

3

2

2

aa
bb
New
New
T
R
.
.
63 Nm (6.3 m · kg, 45 ft · lb)
