Yamaha YZF-R7 User Manual

4 - 70
ENG

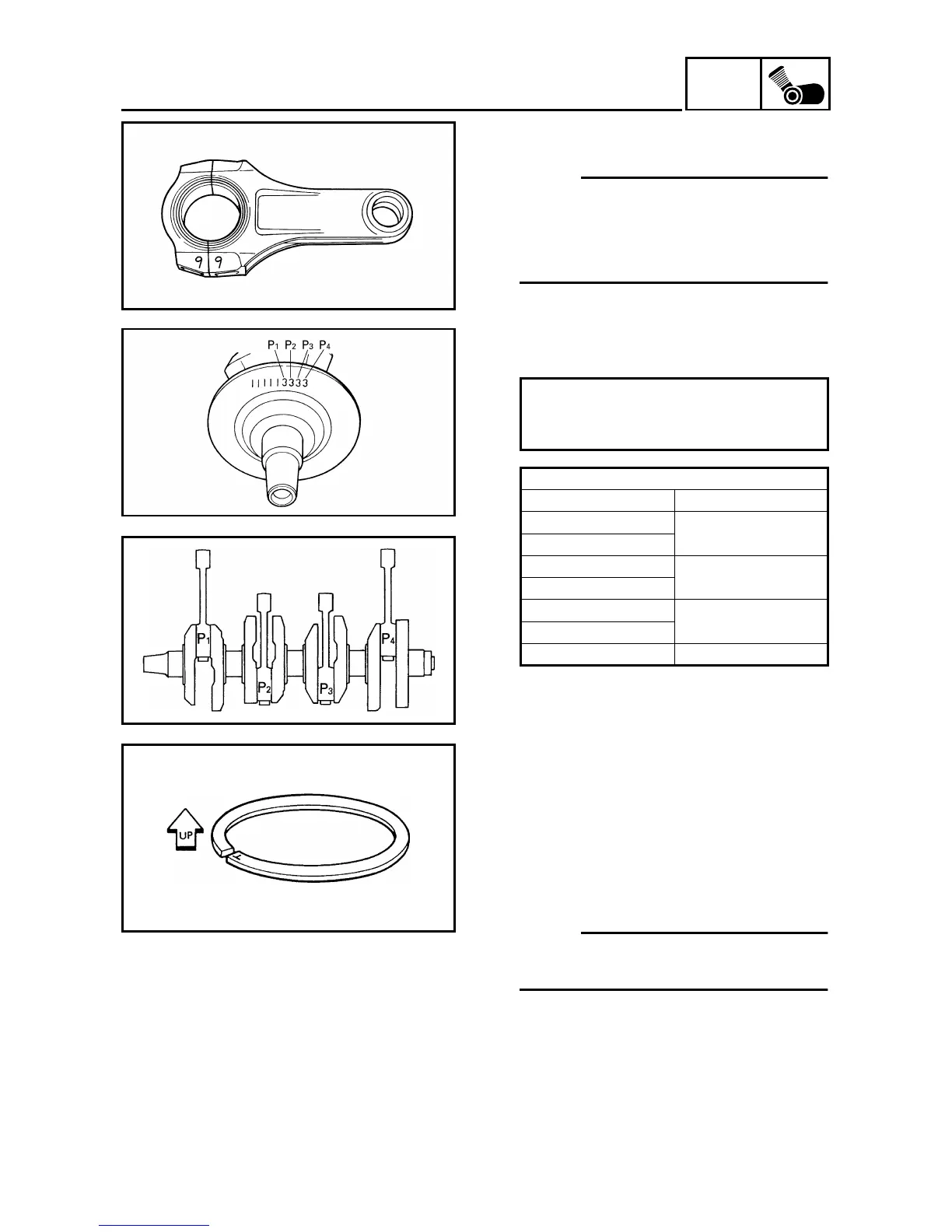

CONNECTING RODS AND PISTONS
2. Select:
• big end bearings (“P
1”~ “P4”)
NOTE:
• The numbers stamped into the crank-
shaft web and the numbers on the
connecting rods are used to determine
the replacement big end bearing sizes.
•“P1”~“P4” refer to the bearings shown
in the crankshaft illustration.
▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼
For example, if the connecting rod
“P1” and the crankshaft web “P1” num-
bers are “9” and “3” respectively, then
the bearing size for “P1” is:
▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲
“P1” (connecting rod) – “P1” (crank-
shaft) =
9 – 3 = 6
BIG END BEARING COLOR CODE
2 blue
3
black
4
5
brown
6
7
green
8
9 yellow
EB404704
INSTALLING THE PISTONS AND
CONNECTING RODS
The following procedure applies to all of
the pistons and cylinders.
1. Install:
• top ring
• 2nd ring
• oil ring
NOTE:
Be sure to install the piston rings so that
the manufacturer’s marks or numbers
face up.

Yamaha YZF-R7 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Final Drive	Chain
Front Brakes	Dual 298mm hydraulic disc; ABS
Rear Brakes	245mm hydraulic disc; ABS
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Wheelbase	54.9 in
Seat Height	32.9 in
Fuel Capacity	3.4 gal
Wet Weight	414 lb
Ground Clearance	5.3 in
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Transmission	6-speed
Front Suspension	41mm KYB inverted fork, adjustable preload, rebound and compression damping; 5.1-in travel
Rear Suspension	Single shock, adjustable preload and rebound damping; 5.1-in travel
