5 - 9
COOL
OIL COOLER
EB501000
OIL COOLER

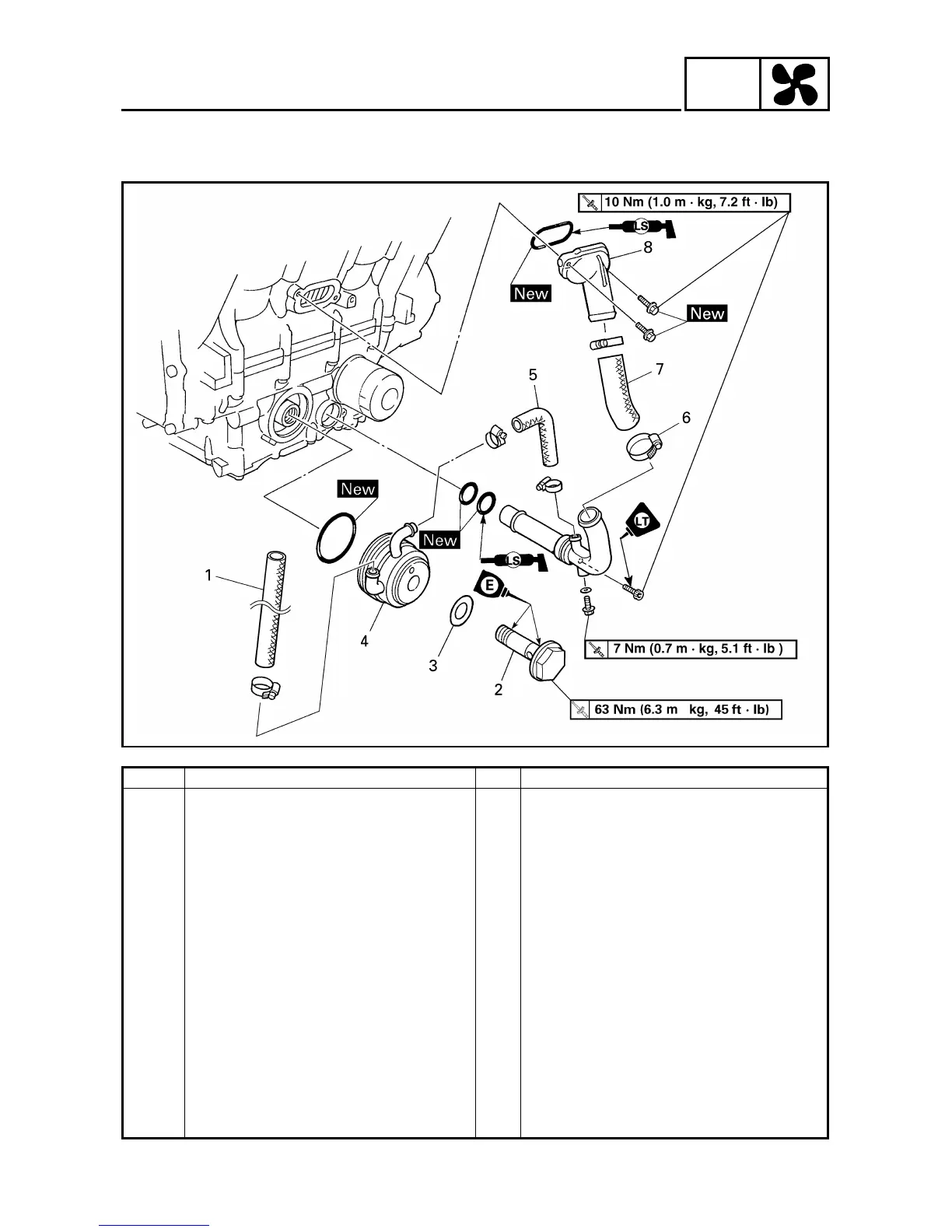

Order Job/Part Q’ty Remarks
Removing the oil cooler
Remove the parts in the order listed.
Radiator assembly Refer to “RADIATOR AND THERMO-
STAT”.
Exhaust pipe assembly Refer to “ENGINE” in chapter 4.
Engine oil Drain.
Refer to “CHANGING THE ENGINE
OIL” in chapter 3.
1 Oil cooler outlet hose 1
2 Bolt 1
3 Gasket 1
4 Oil cooler 1
5 Oil cooler inlet hose 1
6 Water pump outlet pipe 1
7 Water jacket joint inlet hose 1
8 Water jacket joint 1
For installation, reverse the removal
procedure.
