1 - 9
INSTRUMENT AND CONTROL FUNCTIONS
11
22
44
55
33
1. Pass switch “PASS”
2. Lights switch
3. Dimmer switch
4. Turn signal switch
5. Horn switch “ ”
EAU00118

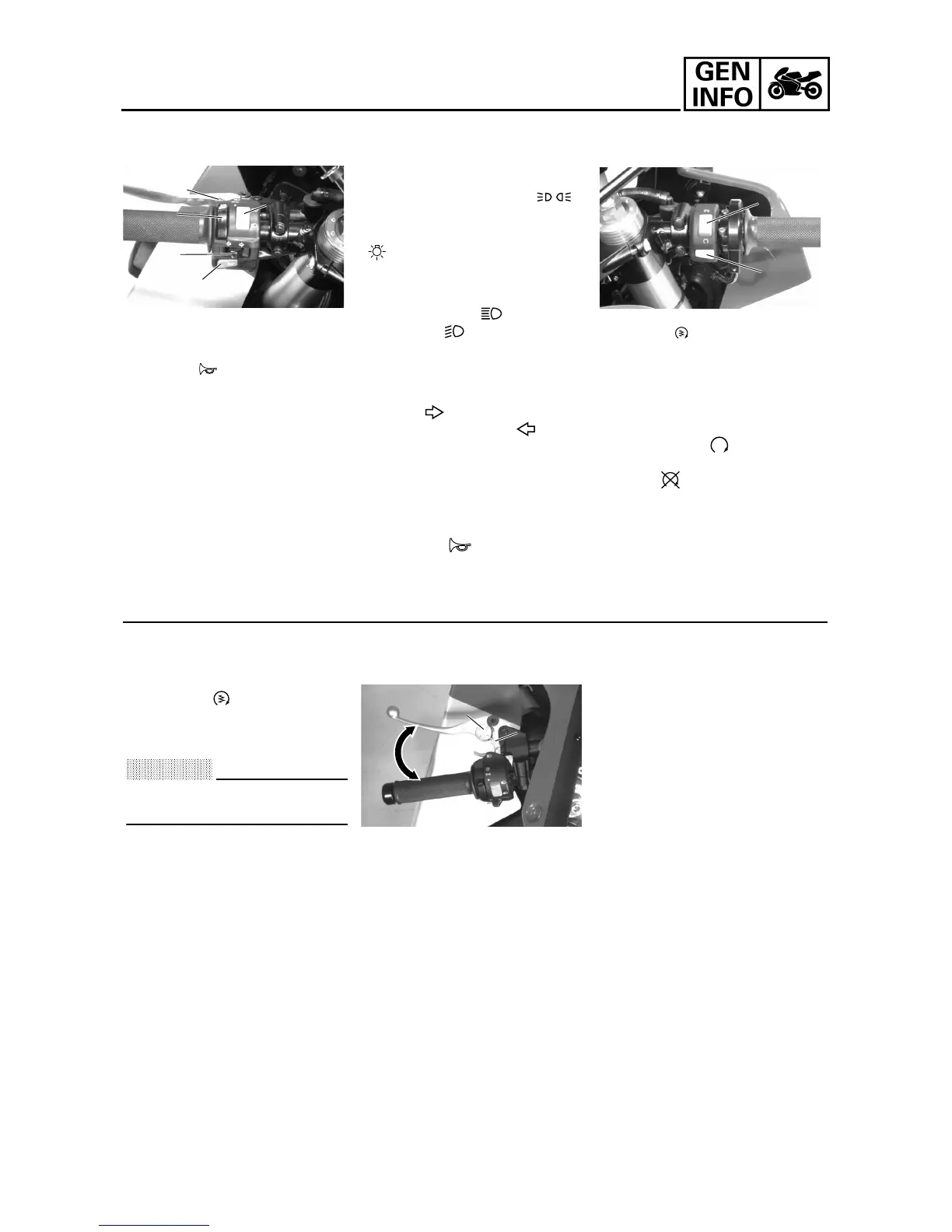

Handlebar switches
EAU00120
Pass switch “PASS”
Press the switch to operate the passing
light.
EAU00134
Lights switch
Turning the lights switch to “ ”,
turns on the auxiliary light, meter lights
and taillight. Turning the lights switch to
“ ”, turns the headlight on also.
EAU00121
Dimmer switch
Turn the switch to “ ” for the high
beam and to “ ” for the low beam.
EAU00127
Turn signal switch
To signal a right-hand turn, push the
switch to “ ”. To signal a left-hand
turn, push the switch to “ ”. Once
the switch is released it will return to the
center position. To cancel the signal,
push the switch in after it has returned
to the center position.
EAU00129
Horn switch “ ”
Press the switch to sound the horn.
11
22
1. Engine stop switch
2. Start switch “ ”
EAU00138
Engine stop switch
The engine stop switch is a safety de-
vice for use in an emergency such as
when the motorcycle overturns or if
trouble occurs in the throttle system.
Turn the switch to “ ” to start the en-
gine. In case of emergency, turn the
switch to “ ” to stop the engine.
EAU00143
Start switch “ ”
The starter motor cranks the engine
when pushing the start switch.
EC000005
CAUTION:
See starting instructions prior to
starting the engine.
aa
11
22
1. Lever position adjusting dial
2. Arrow mark
a. Lever distance
EAU00153
Clutch lever
The clutch lever is located on the left
handlebar. It is equipped with a clutch
lever adjusting dial and a clutch switch,
which is integrated into the ignition cir-
cuit cut-off system. (Refer to the engine
starting procedures for a description of
this system.) To disengage the clutch,
pull the clutch lever toward the handle-
bar. To engage the clutch, release the
lever. The lever should be pulled rapid-
ly and released slowly for smooth
clutch operation.
To adjust the distance between the
clutch lever and the handlebar grip,
turn the clutch adjusting dial while
pushing the lever forward. Make sure
the setting on the clutch lever adjusting
dial is aligned with the arrow mark.
