Yamaha YZF-R7 User Manual

7 - 76
CHAS
EB706000

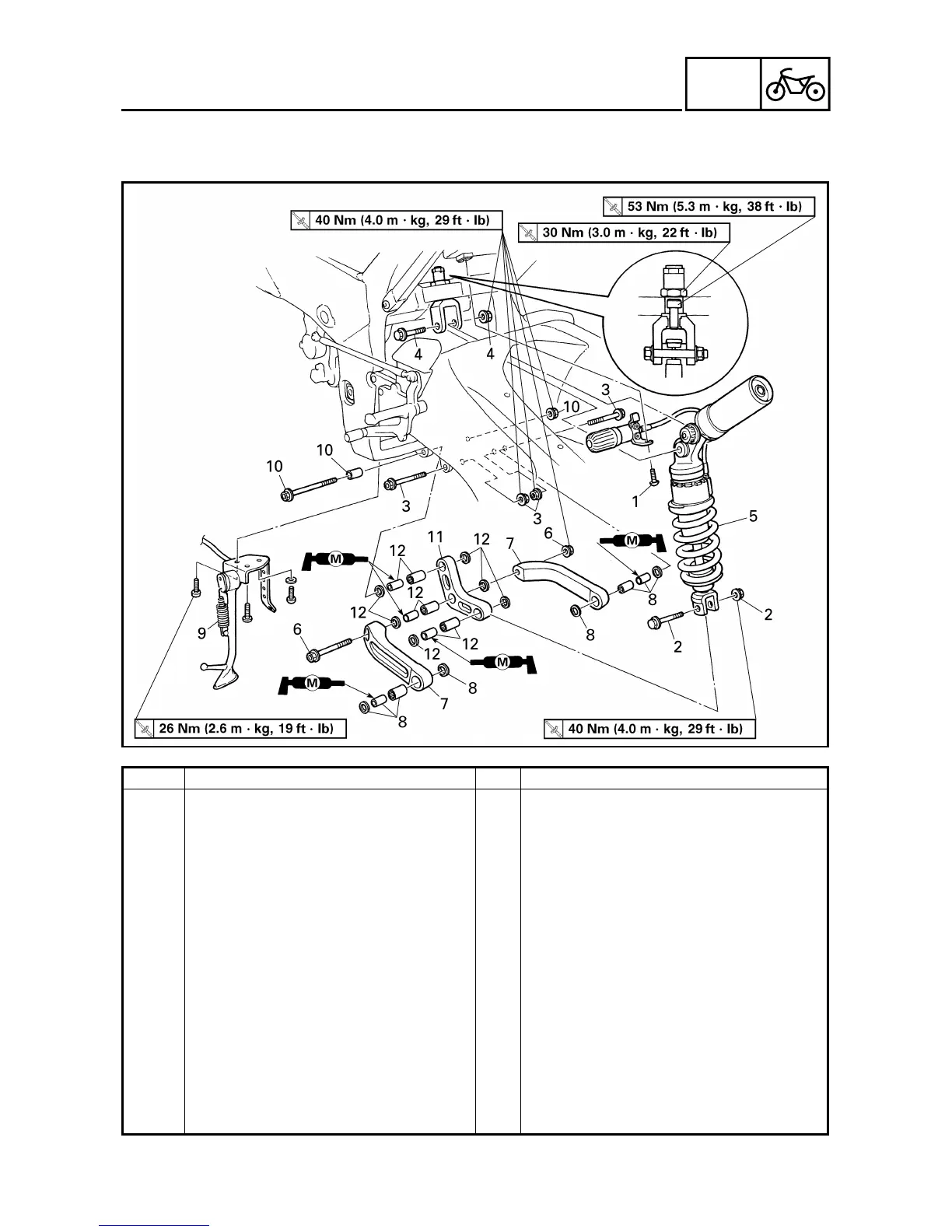

REAR SHOCK ABSORBER ASSEMBLY
Order Job/Part Q’ty Remarks
Removing the rear shock absorber
assembly
Remove the parts in the order listed.
1 Bolt 1
2 Self-locking nut/bolt 1/1
3 Self-locking nut/bolt 2/2
4 Self-locking nut/bolt 1/1
5 Rear shock absorber assembly 1
6 Self-locking nut/bolt 1/1
7 Connecting arm 2
8 Spacer/oil seal/bearing 2/4/2
9 Sidestand 1
10 Self-locking nut/bolt/spacer 1/1/1
11 Relay arm 1
12 Spacer/oil seal/bearing 3/6/3
For installation, reverse the removal
procedure.
REAR SHOCK ABSORBER ASSEMBLY

Yamaha YZF-R7 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Final Drive	Chain
Front Brakes	Dual 298mm hydraulic disc; ABS
Rear Brakes	245mm hydraulic disc; ABS
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Wheelbase	54.9 in
Seat Height	32.9 in
Fuel Capacity	3.4 gal
Wet Weight	414 lb
Ground Clearance	5.3 in
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Transmission	6-speed
Front Suspension	41mm KYB inverted fork, adjustable preload, rebound and compression damping; 5.1-in travel
Rear Suspension	Single shock, adjustable preload and rebound damping; 5.1-in travel
