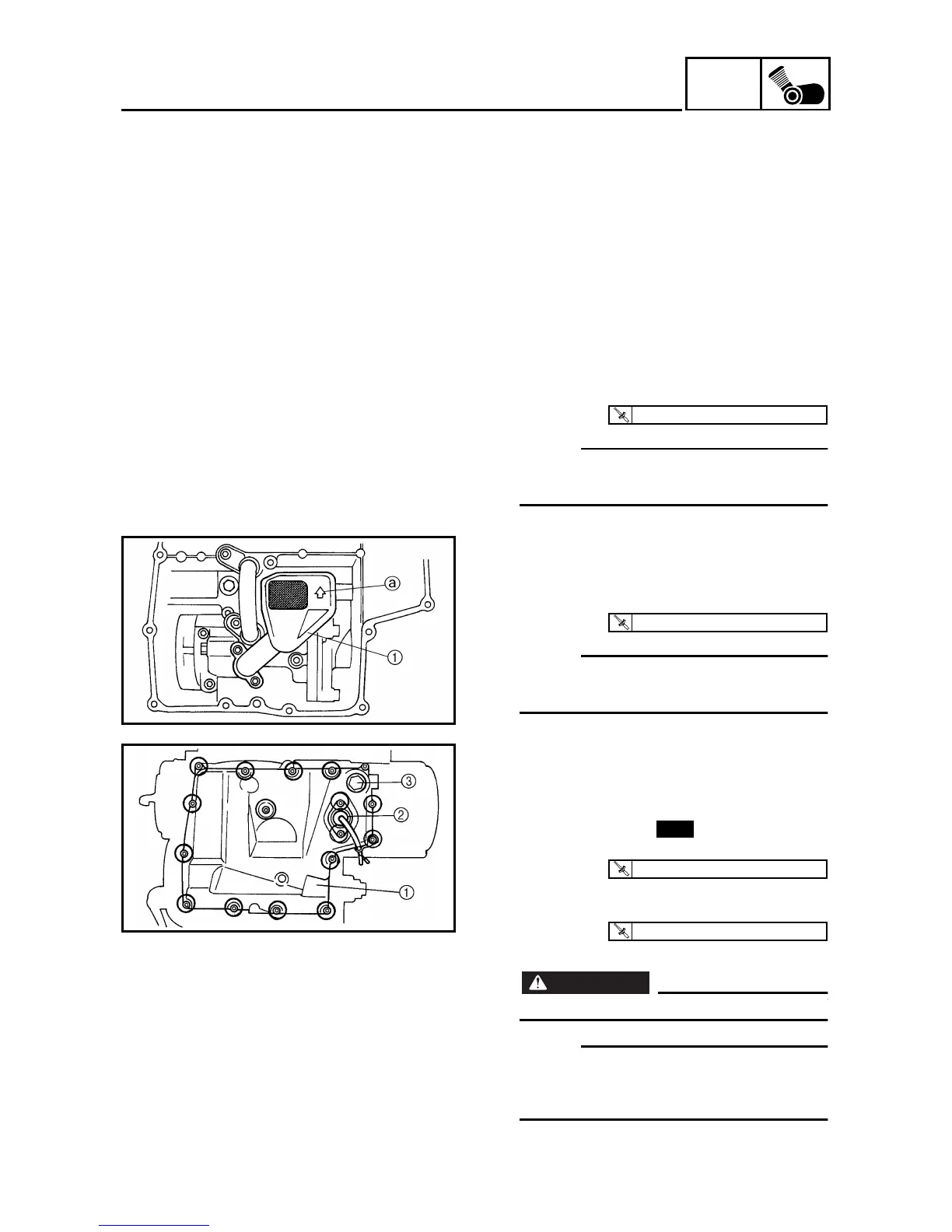

OIL PAN AND OIL PUMP
2. Check:
• oil pump operation
Refer to “CHECKING THE OIL PUMP”.
EB411710
INSTALLING THE OIL PUMP
1. Install:
• oil pump 1
NOTE:
Install the oil/water pump assembly
drive chain onto the oil/water pump
assembly driven sprocket.
T
R
.
.
12 Nm (1.2 m · kg, 8.7 ft · lb)
EB411720
INSTALLING THE OIL STRAINER
1. Install:
• oil strainer 1
NOTE:
The arrow a on the oil strainer housing
must point towards the front of the
engine.
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
EB411730
INSTALLING THE OIL PAN
1. Install:
• dowel pins
• oil pan gasket
• oil pan 1
• oil level switch 2
• engine oil drain bolt 3
WARNING
WARNING
Always use new copper washers.
NOTE:
• Tighten the oil pan bolts in stages and
in a crisscross pattern.
• Lubricate the oil level switch O-ring
with lithium soap base grease.
New
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
T
R
.
.
43 Nm (4.3 m · kg, 31 ft · lb)
