5 - 1
COOL
RADIATOR AND THERMOSTAT
EB500000

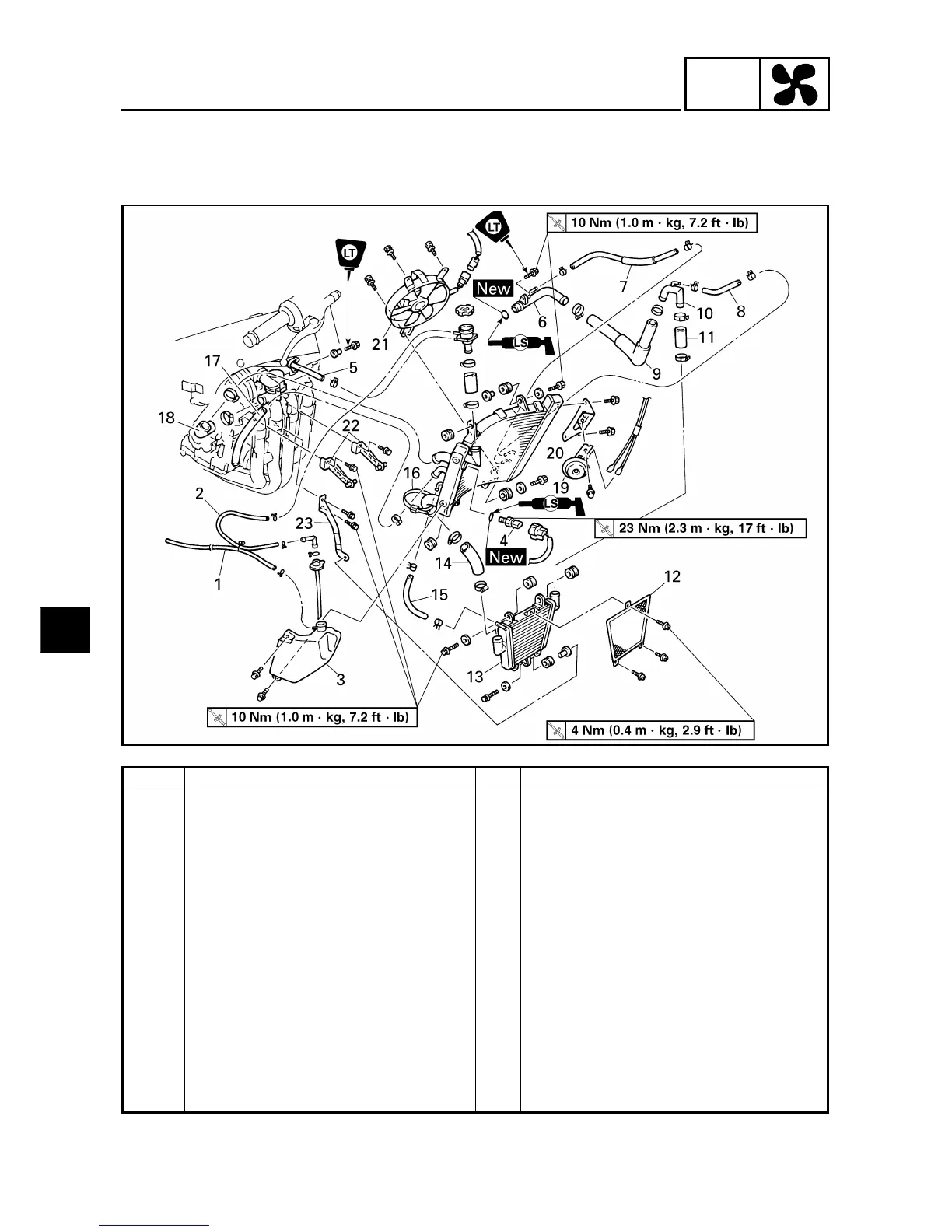

COOLING SYSTEM
RADIATOR AND THERMOSTAT
Order Job/Part Q’ty Remarks
Removing the radiator Remove the parts in the order listed.
Bottom cowling and front cowling Refer to “COWLINGS” in chapter 3.
Coolant Drain.
Refer to “CHANGING THE COOLANT”
in chapter 3.
1 Coolant reservoir breather hose 1
2 Coolant reservoir hose 1
3 Coolant reservoir 1
4 Thermo switch 1
5 Thermostat assembly breather hose 1 Disconnect.
6 Water pump inlet pipe 1
7 Water pump breather hose 1
8 Radiator outlet pipe breather hose 1
9 Water pump inlet hose 1
10 Radiator outlet pipe 1
5

Yamaha YZF-R7 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Final Drive	Chain
Front Brakes	Dual 298mm hydraulic disc; ABS
Rear Brakes	245mm hydraulic disc; ABS
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Wheelbase	54.9 in
Seat Height	32.9 in
Fuel Capacity	3.4 gal
Wet Weight	414 lb
Ground Clearance	5.3 in
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Transmission	6-speed
Front Suspension	41mm KYB inverted fork, adjustable preload, rebound and compression damping; 5.1-in travel
Rear Suspension	Single shock, adjustable preload and rebound damping; 5.1-in travel
