Yamaha YZF-R7 User Manual

4 - 53
ENG

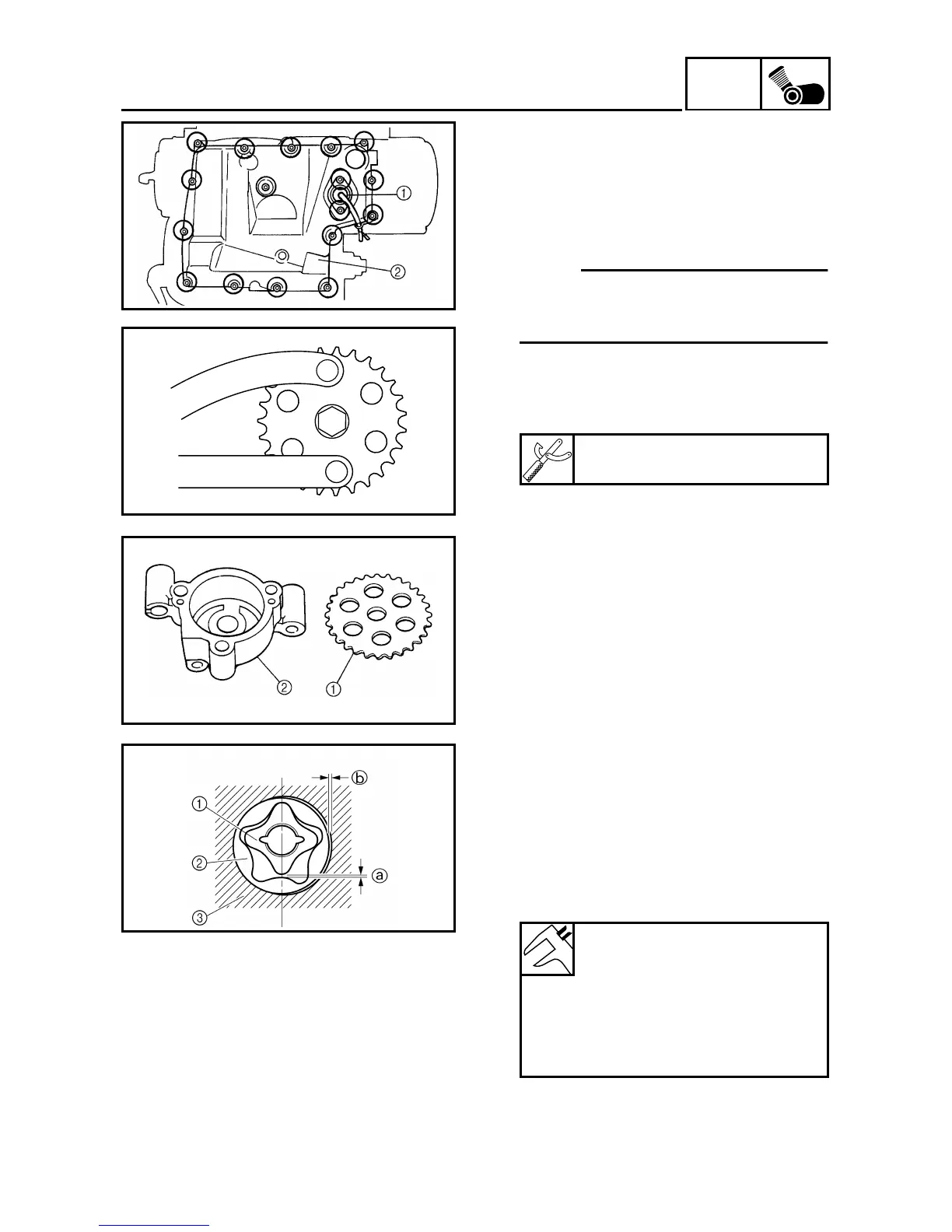

OIL PAN AND OIL PUMP
EB411100
REMOVING THE OIL PAN
1. Remove:
• oil level switch 1
• oil pan 2
• oil pan gasket
• dowel pins
NOTE:
Loosen each bolt 1/4 of a turn at a time,
in stages and in a crisscross pattern.
After all of the bolts are fully loosened,
remove them.
REMOVING THE OIL PUMP
1. Remove:
• oil/water pump assembly driven
sprocket
Flywheel puller
90890-01080
EB411400
CHECKING THE OIL PUMP
1. Check:
• oil/water pump assembly driven
sprocket 1
• oil pump housing 2
Cracks/damage/wear → Replace the
defective part(-s).
2. Measure:
• inner rotor-to-outer rotor tip clearance
a
• outer rotor-to-oil pump housing clear-
ance b
Out of specification → Replace the oil
pump.
1 Inner rotor
2 Outer rotor
3 Oil pump housing
Inner rotor-to-outer rotor tip
clearance
0.09 ~ 0.15 mm
(0.004 ~ 0.006 in)
Outer rotor-to-oil pump hous-
ing clearance
0.03 ~ 0.08 mm
(0.001 ~ 0.003 in)

Yamaha YZF-R7 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Final Drive	Chain
Front Brakes	Dual 298mm hydraulic disc; ABS
Rear Brakes	245mm hydraulic disc; ABS
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Wheelbase	54.9 in
Seat Height	32.9 in
Fuel Capacity	3.4 gal
Wet Weight	414 lb
Ground Clearance	5.3 in
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Transmission	6-speed
Front Suspension	41mm KYB inverted fork, adjustable preload, rebound and compression damping; 5.1-in travel
Rear Suspension	Single shock, adjustable preload and rebound damping; 5.1-in travel
