7 - 13
CHAS
REAR WHEEL, BRAKE DISC, AND REAR WHEEL
SPROCKET
3. Measure:
• radial wheel runout
• lateral wheel runout
Refer to “FRONT WHEEL”.
Over the specified limits → Replace.
Max. radial wheel runout
1.0 mm (0.04 in)
Max. lateral wheel runout
0.5 mm (0.02 in)
EB701430

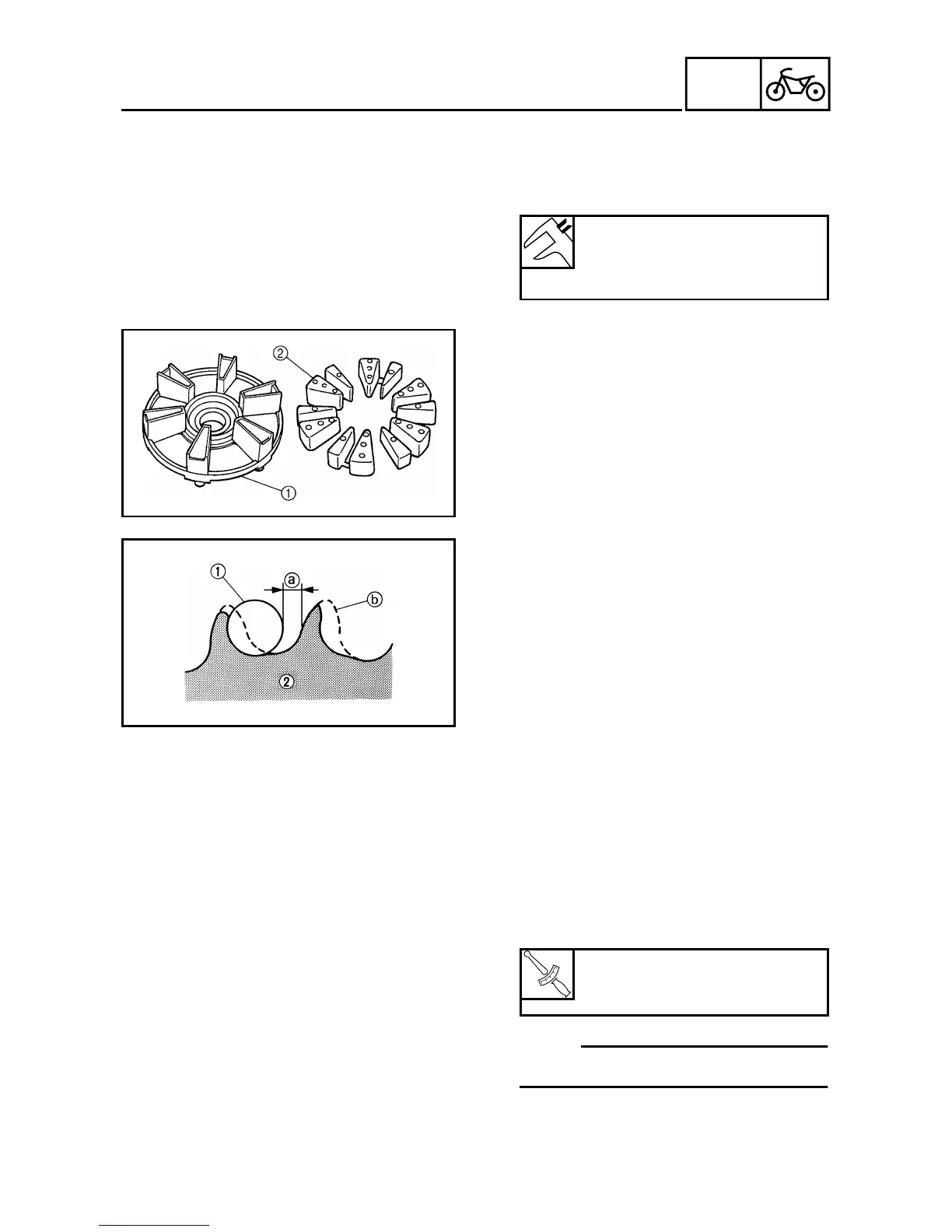

CHECKING THE REAR WHEEL DRIVE HUB
1. Check:
• rear wheel drive hub 1
Cracks/damage → Replace.
• rear wheel drive hub dampers 2
Damage/wear → Replace.
EB701440
CHECKING AND REPLACING THE REAR
WHEEL SPROCKET
1. Check:
• rear wheel sprocket
More than 1/4 tooth a wear → Replace
the rear wheel sprocket.
Bent teeth → Replace the rear wheel
sprocket.
b
Correct
1 Drive chain roller
2 Rear wheel sprocket
2. Replace:
• rear wheel sprocket
▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼
a. Remove the self-locking nuts and the
rear wheel sprocket.
b. Clean the rear wheel drive hub with a
clean cloth, especially the surfaces
that contact the sprocket.
c. Install the new rear wheel sprocket.
NOTE:
Tighten the self-locking nuts in stages
and in a crisscross pattern.
▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲
T
R
.
.
Rear wheel sprocket self-lock-
ing nut
150 Nm (15.0 m • kg, 110 ft • lb)
