CHAS
EB702378

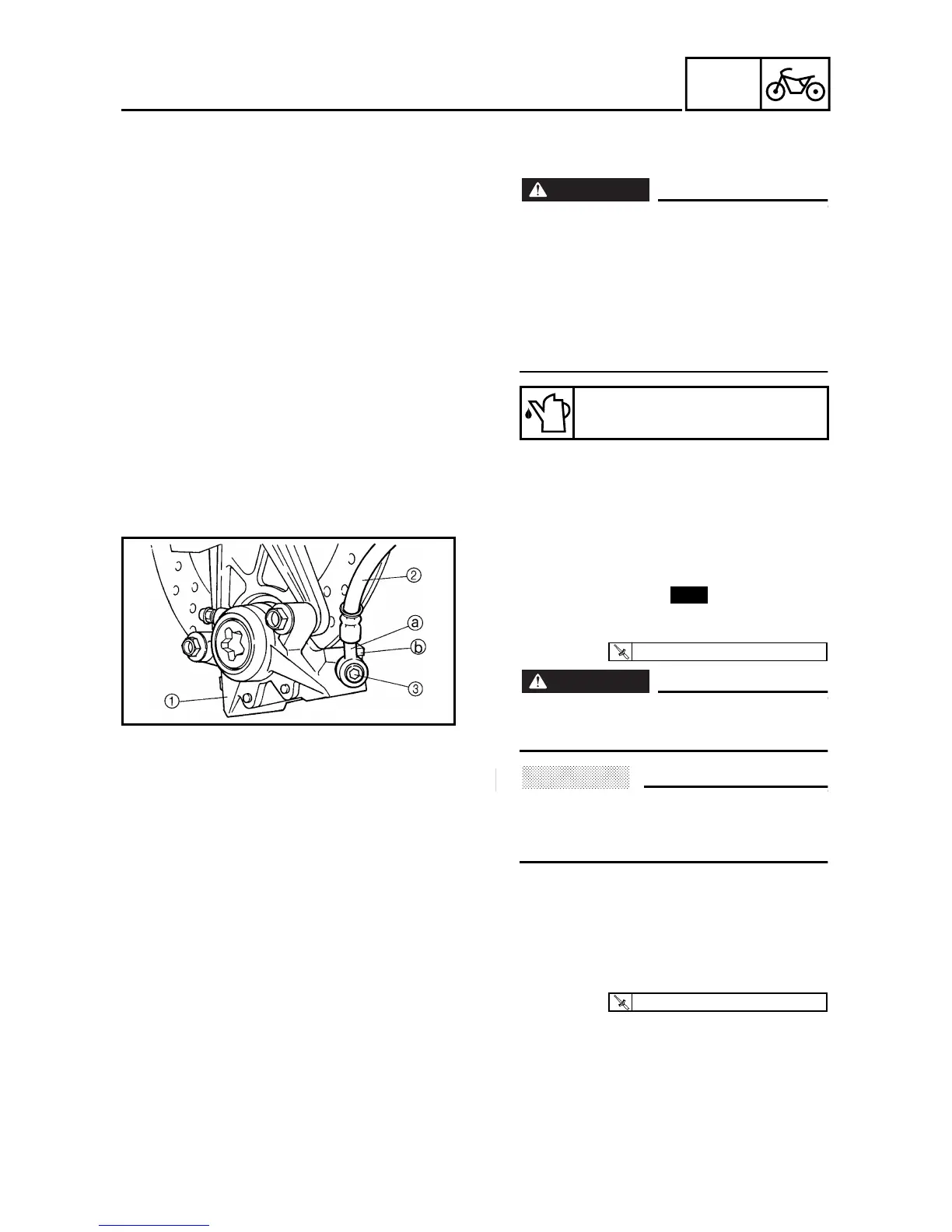

ASSEMBLING AND INSTALLING THE REAR
BRAKE CALIPER
WARNING
WARNING
• Before installation, all internal brake
components should be cleaned and
lubricated with clean or new brake
fluid.
• Never use solvents on internal brake
components as they will cause the pis-
ton seals to swell and distort.
• Whenever a brake caliper is disassem-
bled, replace the brake caliper piston
seals.
Recommended brake fluid
DOT 4
1. Install:
• brake caliper 1
(temporarily)
• copper washers
• brake hose 2
• union bolt 3
WARNING
WARNING
Proper brake hose routing is essential to
insure safe motorcycle operation. Refer
to “CABLE ROUTING”.
ACHTUNG:
CAUTION:
When installing the brake hose onto the
brake caliper 1 , make sure that the
brake pipe a touches the projection b
on the brake caliper.
2. Remove:
• brake caliper
3. Install:
• brake pads
• brake pad springs
• brake caliper
Refer to “REPLACING THE REAR
BRAKE PADS”.
New
T
R
.
.
30 Nm (3.0 m · kg, 22 ft · lb)
T
R
.
.
40 Nm (4.0 m · kg, 29 ft · lb)
FRONT AND REAR BRAKES
