Yamaha YZF-R7 User Manual

8 - 39
–+
ELEC
ELECTRICAL CONTROL SYSTEM

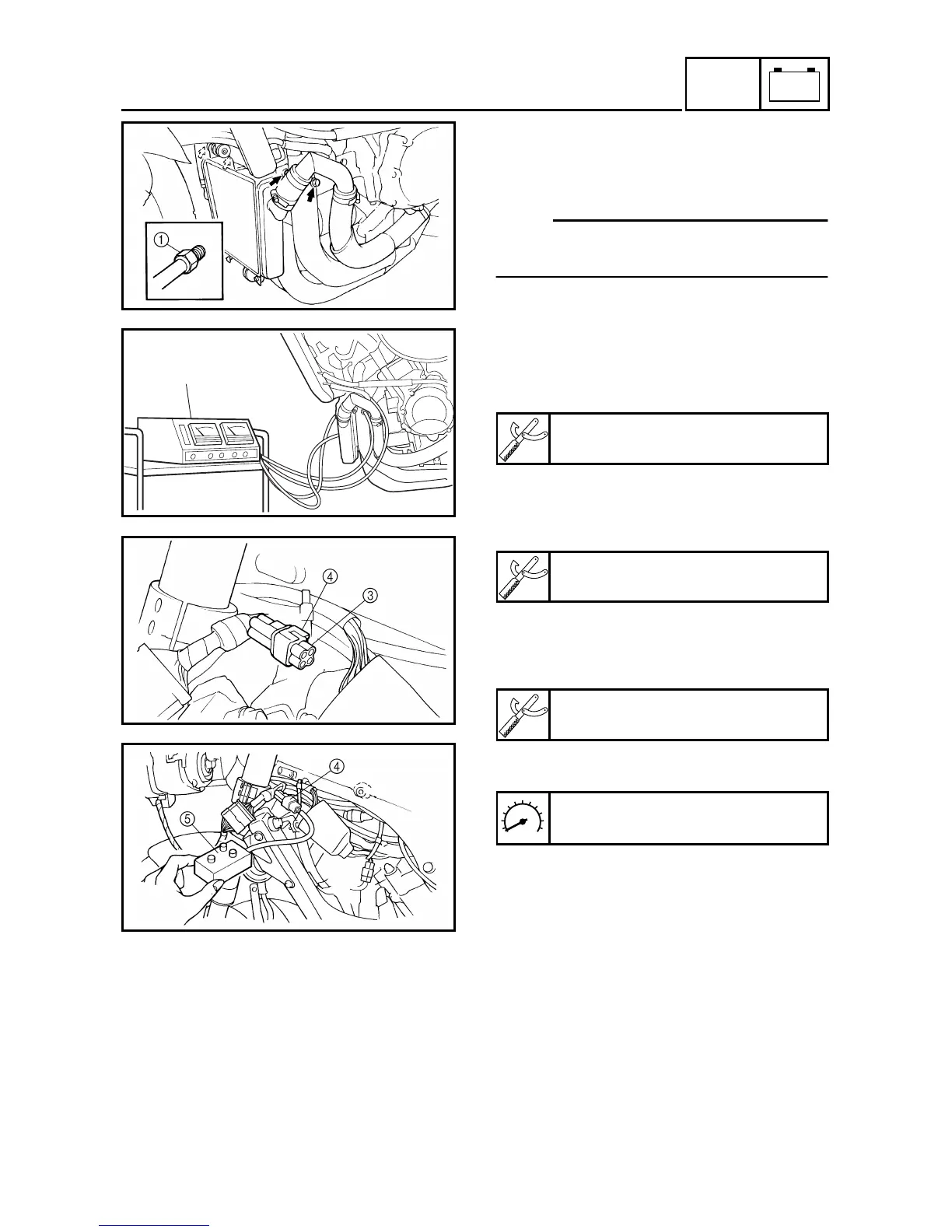

CO EMISSION ADJUSTMENT MODE
With the CO emission adjustment mode,
the amount of fuel injected by the injector
can be adjusted.
NOTE:
Prior to adjusting the CO emission, the
throttle bodies must be properly synchro-
nized.
• Remove the bottom cowling and front
cowling.
Refer to “COWLINGS” in chapter 3.
• Remove the CO check bolts from the
exhaust pipe assembly.
• Install the exhaust attachment 1 and CO
tester 2 to the exhaust pipe assembly.
• Attach the engine tachometer to the igni-
tion coil for cylinder #1.
Refer to “SYNCHRONIZING THE THROT-
TLE BODIES” in chapter 3.
• Remove the protection cap 3 from the EFI
test coupler 4.
• Connect the CO, diagnosis switch box 5
to the EFI test coupler 4.
• Start the engine and let it warm up for
several minutes.
Exhaust attachment
90890-03134
Engine tachometer
90890-06760
CO, diagnosis switch box
90890-03171
Engine idling speed
1,000 ~ 1,200 r/min
2

