TRANSMISSION

EB413000

TRANSMISSION

Order Job/Part Q’ty Remarks

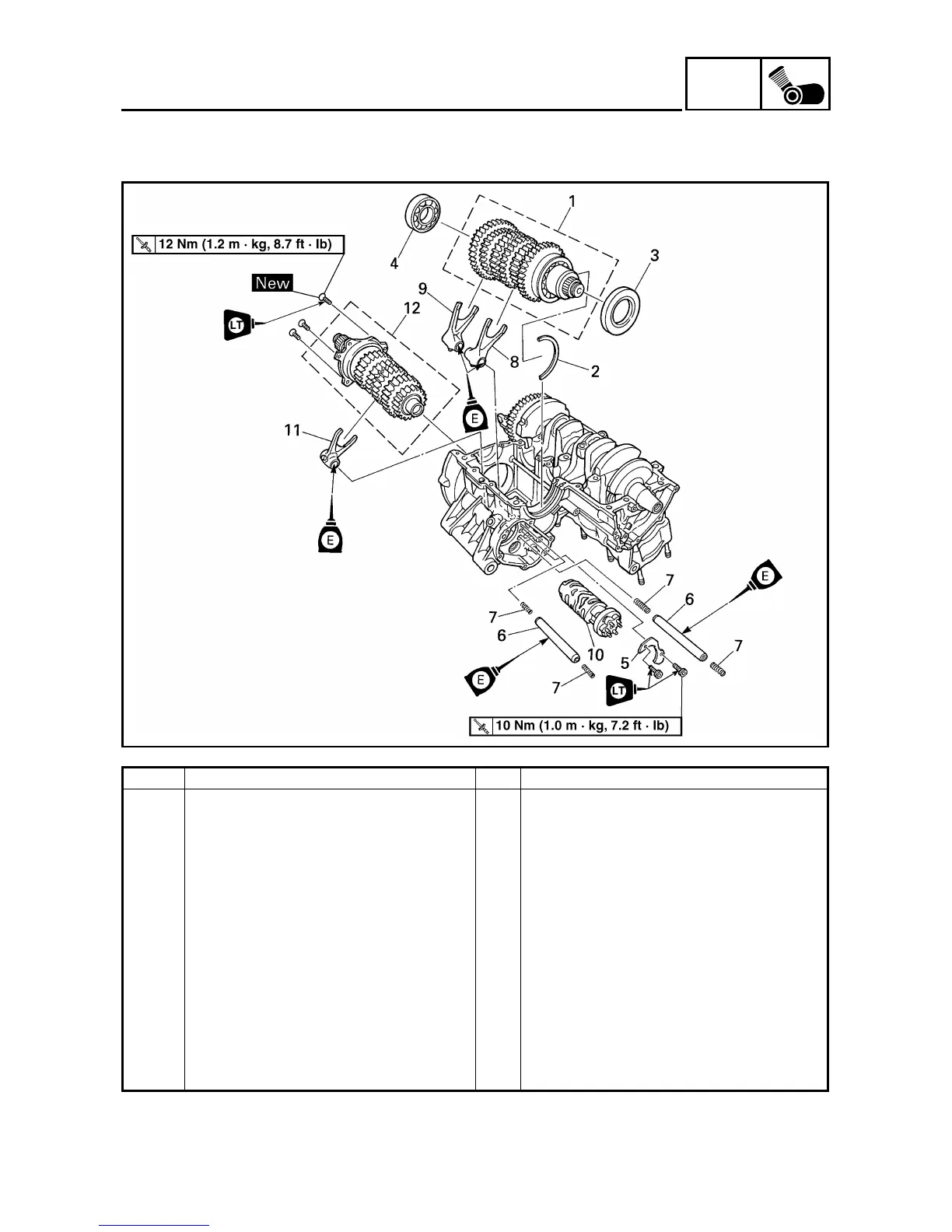

Removing the transmission, shift

drum assembly, and shift forks

Remove the parts in the order listed.

Crankcase Separate.

Refer to “CRANKCASE”.

Stopper lever Refer to “SHIFT SHAFT”.

1 Drive axle assembly 1

2 Circlip 1

3 Oil seal 1

4 Bearing 1

5 Shift drum retainer 1

6 Shift fork guide bar 2

7 Spring 4

8 Shift fork “L” 1

9 Shift fork “R” 1
