Yamaha YZF-R7 User Manual

7 - 72
CHAS
EB705001

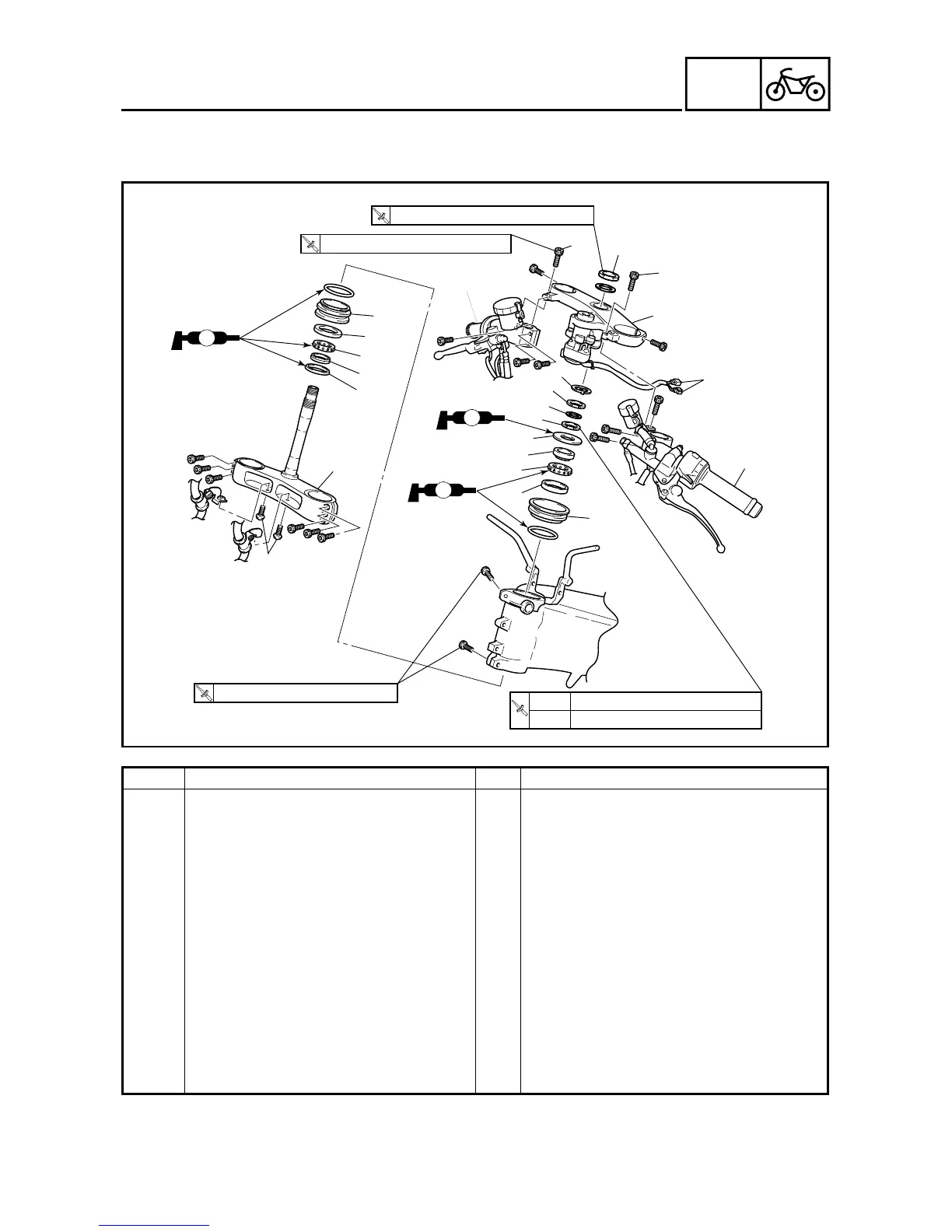

STEERING HEAD
T
R
.
.
13 Nm (1.3 m
•
kg, 9.4 ft
•
Ib)
T
R
.
.
115 Nm (11.5 m
•
kg, 85 ft
•
Ib)
T
R
.
.
18 Nm (1.8 kg
•
m, 13 ft
•
Ib)
9 Nm (0.9 kg
•
m, 6.5 ft
•
Ib)
1st.
2nd.
T
R
.
.
19 Nm (1.9 m
•
kg, 13 ft
•
Ib)
LS
18
4
2
2
5
6
1
8
9
11
13
14
15
18
10
3
16
14
17
12
7
20
LS
LS
19
Order Job/Part Q’ty Remarks
Removing the lower bracket Remove the parts in the order listed.
Front wheel Refer to “FRONT WHEEL AND BRAKE
DISCS”.
Front fork legs Refer to “FRONT FORK”.
1 Main switch coupler 2 Disconnect.
2 Upper bracket bolt 2
3 Left handlebar assembly 1
4 Right handlebar assembly 1
5 Steering stem nut 1
6 Upper bracket 1
7 Brake hose holder bolt 2
8 Lock washer 1
9 Upper ring nut 1
10 Rubber washer 1
STEERING HEAD

Yamaha YZF-R7 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Final Drive	Chain
Front Brakes	Dual 298mm hydraulic disc; ABS
Rear Brakes	245mm hydraulic disc; ABS
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Wheelbase	54.9 in
Seat Height	32.9 in
Fuel Capacity	3.4 gal
Wet Weight	414 lb
Ground Clearance	5.3 in
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Transmission	6-speed
Front Suspension	41mm KYB inverted fork, adjustable preload, rebound and compression damping; 5.1-in travel
Rear Suspension	Single shock, adjustable preload and rebound damping; 5.1-in travel
