CLUTCH
EB405703

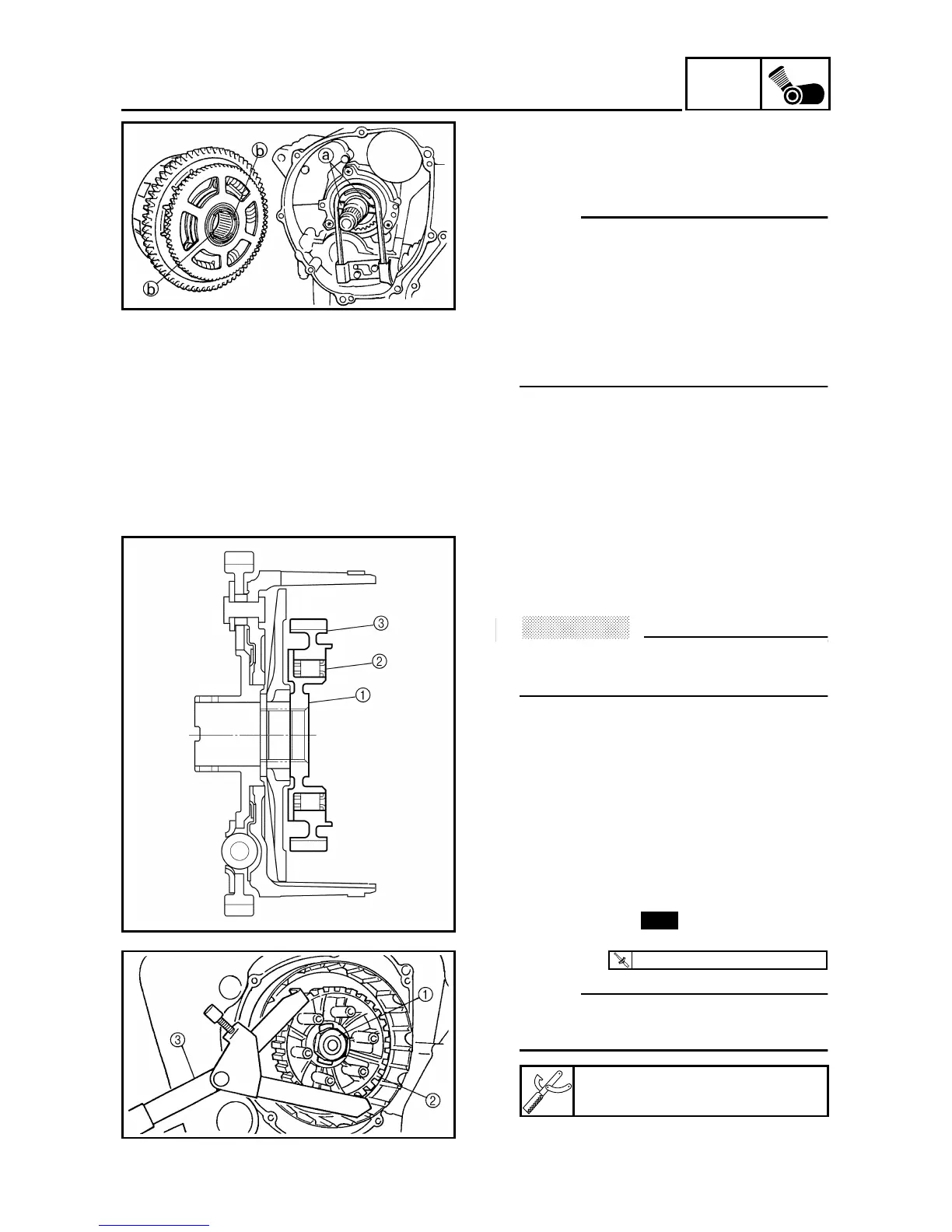

INSTALLING THE CLUTCH
1. Install:
• clutch housing
NOTE:
• Make sure that the slots a in the
clutch housing align with the tabs b
on the oil/water pump assembly drive
sprocket.
• Make sure that the primary driven gear
teeth and primary drive gear teeth
mesh correctly.
• Make sure that the starter clutch gear
teeth and starter clutch idle gear teeth
mesh correctly.
2. Install:
• back torque limiter inner boss 1
• back torque limiter bearing 2
• back torque limiter outer boss 3
ACHTUNG:
CAUTION:
Be sure that the back torque limiter
bearing is installed facing in the correct
direction as shown.
3. Install:
• lock washer
• clutch boss nut 1
NOTE:
While holding the clutch boss 2 with
the clutch holding tool 3, tighten the
clutch boss nut.
Clutch holding tool
90890-04086
New
T
R
.
.
70 Nm (7.0 m · kg, 50 ft · lb)

Yamaha YZF-R7 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Final Drive	Chain
Front Brakes	Dual 298mm hydraulic disc; ABS
Rear Brakes	245mm hydraulic disc; ABS
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Wheelbase	54.9 in
Seat Height	32.9 in
Fuel Capacity	3.4 gal
Wet Weight	414 lb
Ground Clearance	5.3 in
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Transmission	6-speed
Front Suspension	41mm KYB inverted fork, adjustable preload, rebound and compression damping; 5.1-in travel
Rear Suspension	Single shock, adjustable preload and rebound damping; 5.1-in travel
