Yamaha YZF-R7 User Manual

4 - 37
ENG

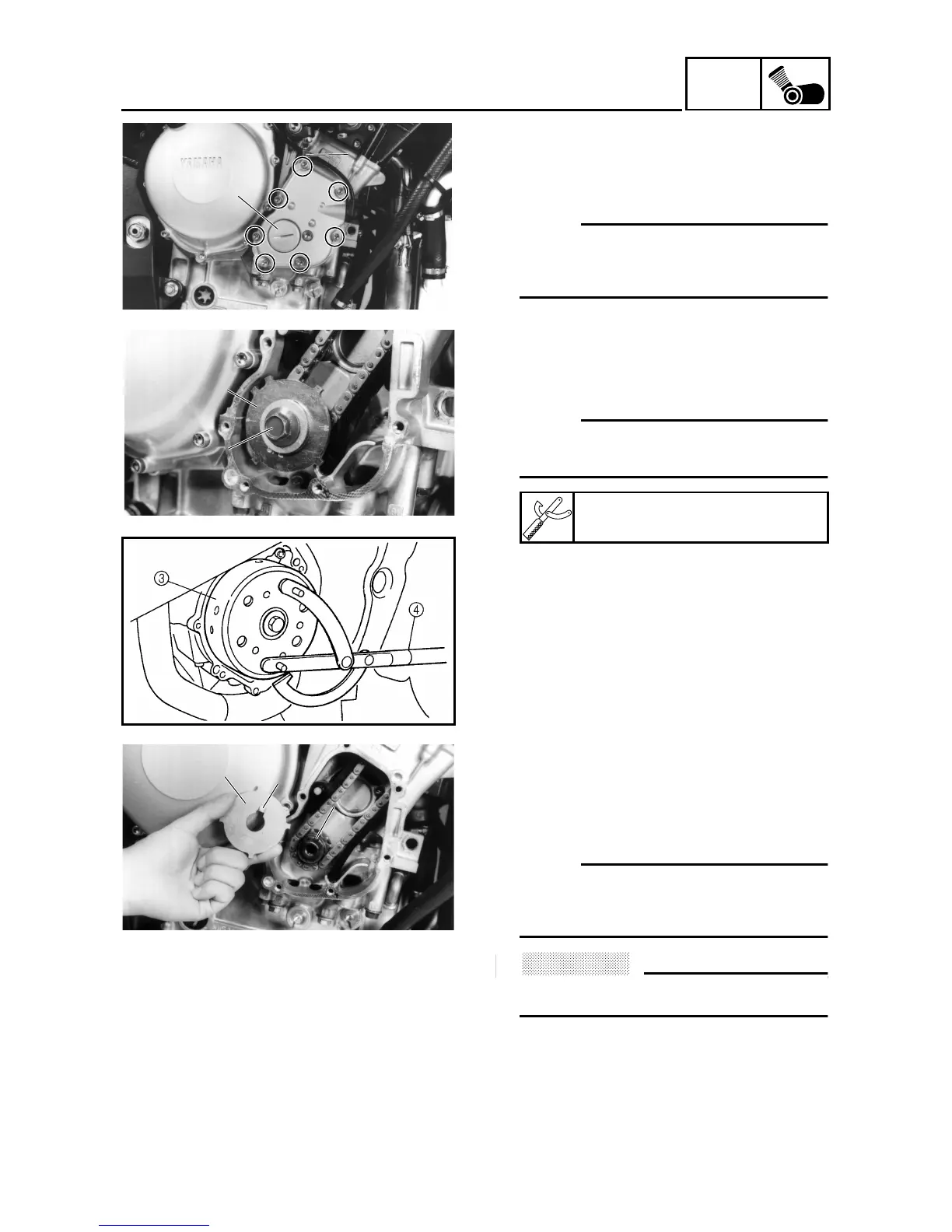

PICKUP COIL
REMOVING THE PICKUP COIL ROTOR
1. Remove:
• pickup coil lead holder 1
• pickup coil rotor cover 2
NOTE:
Loosen each bolt 1/4 of a turn at a time,
in stages and in a crisscross pattern.
After all of the bolts are fully loosened,
remove them.
2

2

1

1

2. Remove:
• pickup coil rotor bolt 1
• washer
• pickup coil rotor 2
NOTE:
While holding the generator rotor 3
with the rotor holding tool 4, loosen the
pickup coil rotor bolt.
Rotor holding tool
90890-01235
2

2

1

1

INSTALLING THE PICKUP COIL ROTOR
1. Install:
• pickup coil rotor 1
• washer
• pickup coil rotor bolt
NOTE:
When installing the pickup coil rotor,
align the groove 2 in the crankshaft
sprocket with the projection a in the
pickup coil rotor.
ACHTUNG:
CAUTION:
Lubricate the pickup coil rotor bolt
threads with engine oil.
1

1

2

2

a
a

Yamaha YZF-R7 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Final Drive	Chain
Front Brakes	Dual 298mm hydraulic disc; ABS
Rear Brakes	245mm hydraulic disc; ABS
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Wheelbase	54.9 in
Seat Height	32.9 in
Fuel Capacity	3.4 gal
Wet Weight	414 lb
Ground Clearance	5.3 in
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Transmission	6-speed
Front Suspension	41mm KYB inverted fork, adjustable preload, rebound and compression damping; 5.1-in travel
Rear Suspension	Single shock, adjustable preload and rebound damping; 5.1-in travel
