Yamaha YZF-R7 User Manual

7 - 56
CHAS
EB703002
Order Job/Part Q’ty Remarks

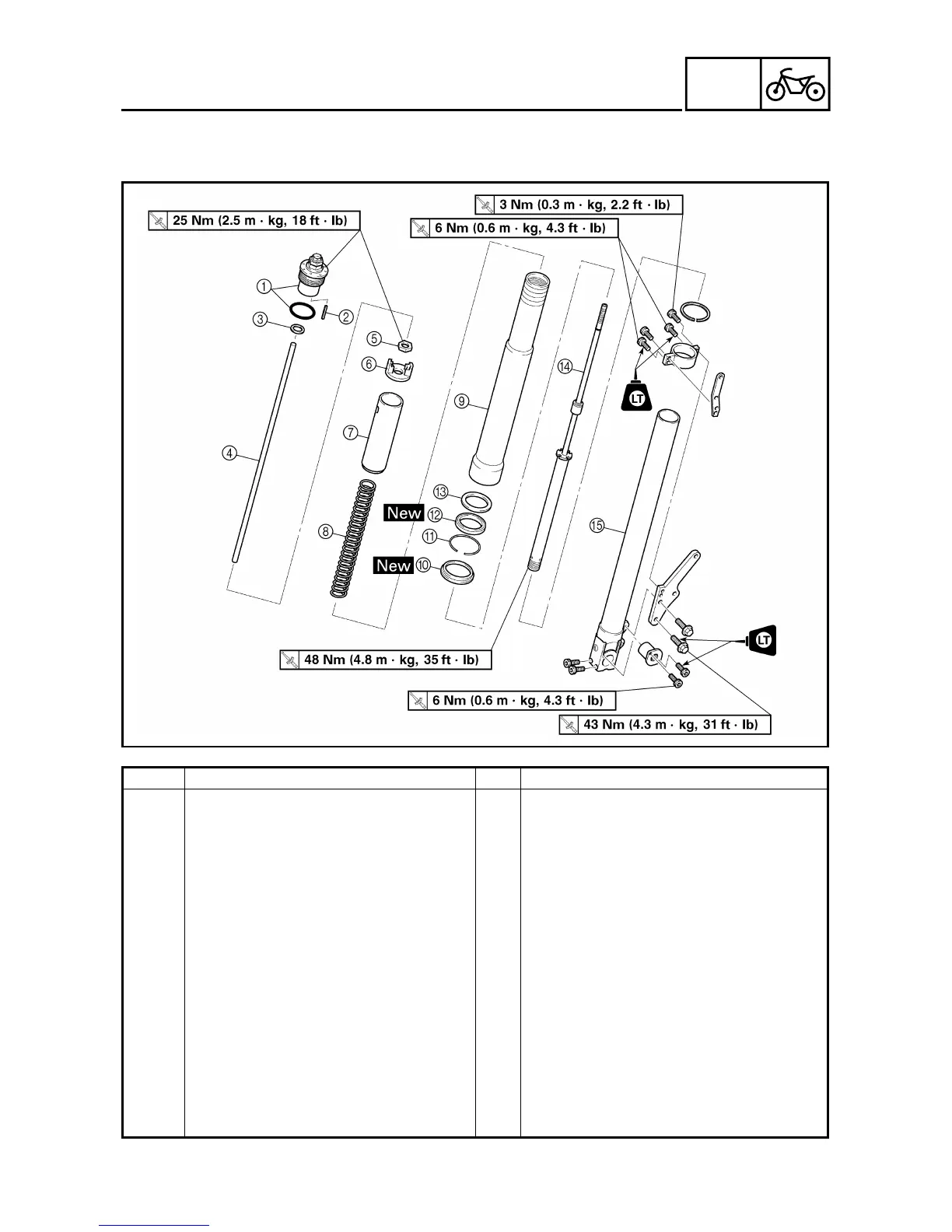

Disassembling the front fork legs Remove the parts in the order listed.
The following procedure applies to
both of the front fork legs.
1 Cap bolt/O-ring 1/1
2 Straight key 1
3 Washer 1
4 Damper adjusting rod 1
5 Nut 1
6 Spring seat 1
7 Spacer 1
8 Fork spring 1
9 Outer tube 1
0 Dust seal 1
A Oil seal clip 1
B Oil seal 1
C Washer 1
FRONT FORK

Yamaha YZF-R7 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Final Drive	Chain
Front Brakes	Dual 298mm hydraulic disc; ABS
Rear Brakes	245mm hydraulic disc; ABS
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Wheelbase	54.9 in
Seat Height	32.9 in
Fuel Capacity	3.4 gal
Wet Weight	414 lb
Ground Clearance	5.3 in
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Transmission	6-speed
Front Suspension	41mm KYB inverted fork, adjustable preload, rebound and compression damping; 5.1-in travel
Rear Suspension	Single shock, adjustable preload and rebound damping; 5.1-in travel
