7 - 80
CHAS
EB707000

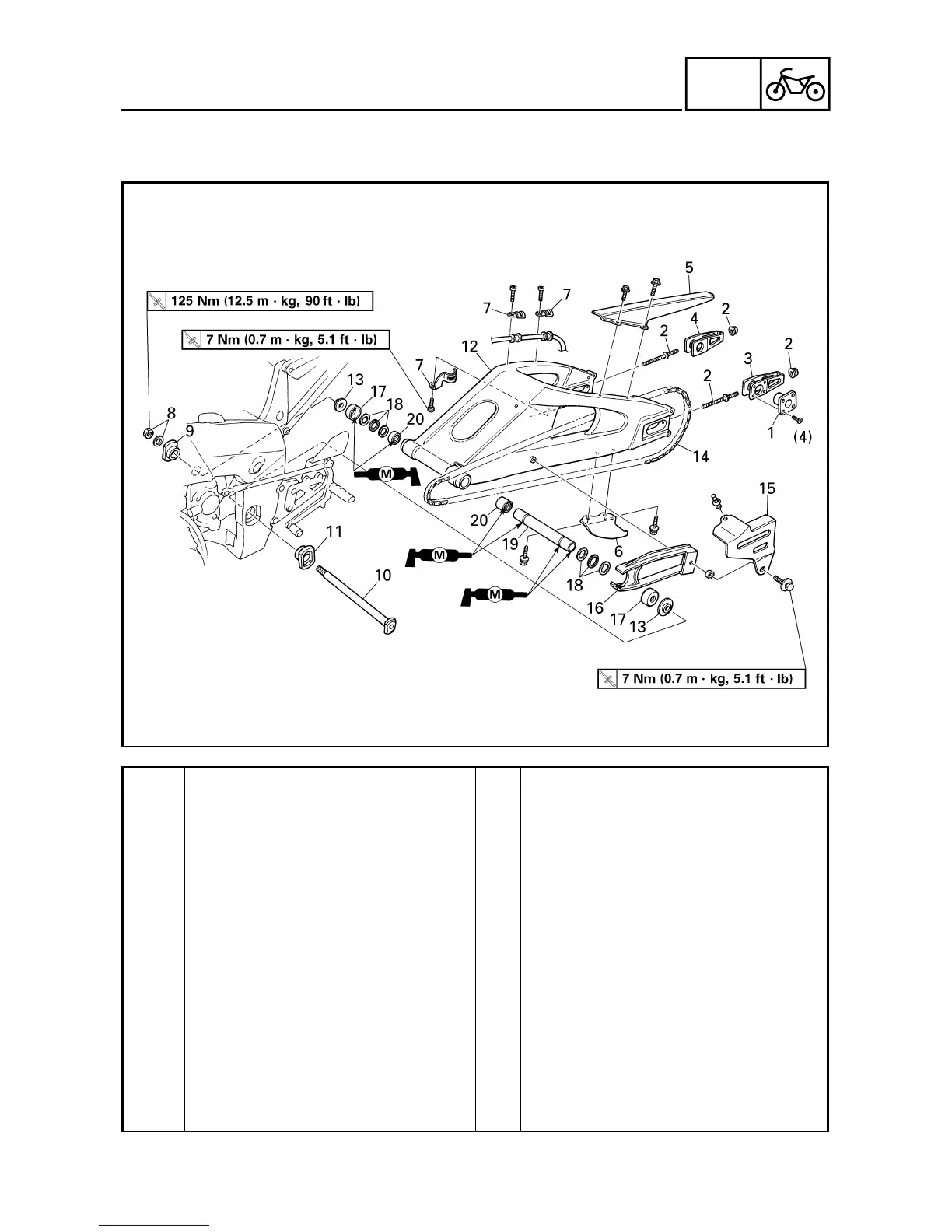

SWINGARM AND DRIVE CHAIN
Order Job/Part Q’ty Remarks
Removing the swingarm and drive
chain
Remove the parts in the order listed.
Drive sprocket Refer to “ENGINE” in chapter 4.
Rear wheel Refer to “REAR WHEEL, BRAKE DISC,
AND REAR WHEEL SPROCKET”.
Rear shock absorber assembly Refer to “REAR SHOCK ABSORBER
ASSEMBLY”.
1 Spacer 1
2 Adjusting bolt/locknut 2/2
3 Left drive chain puller 1
4 Right drive chain puller 1
5 Drive chain guard 1 1
6 Drive chain guard 3 1
7 Brake hose holder 3
8 Pivot shaft nut/washer 1/1
9 Right pivot shaft boss 1
SWINGARM AND DRIVE CHAIN

Yamaha YZF-R7 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Final Drive	Chain
Front Brakes	Dual 298mm hydraulic disc; ABS
Rear Brakes	245mm hydraulic disc; ABS
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Wheelbase	54.9 in
Seat Height	32.9 in
Fuel Capacity	3.4 gal
Wet Weight	414 lb
Ground Clearance	5.3 in
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Transmission	6-speed
Front Suspension	41mm KYB inverted fork, adjustable preload, rebound and compression damping; 5.1-in travel
Rear Suspension	Single shock, adjustable preload and rebound damping; 5.1-in travel
