3 - 9
CHK
ADJ

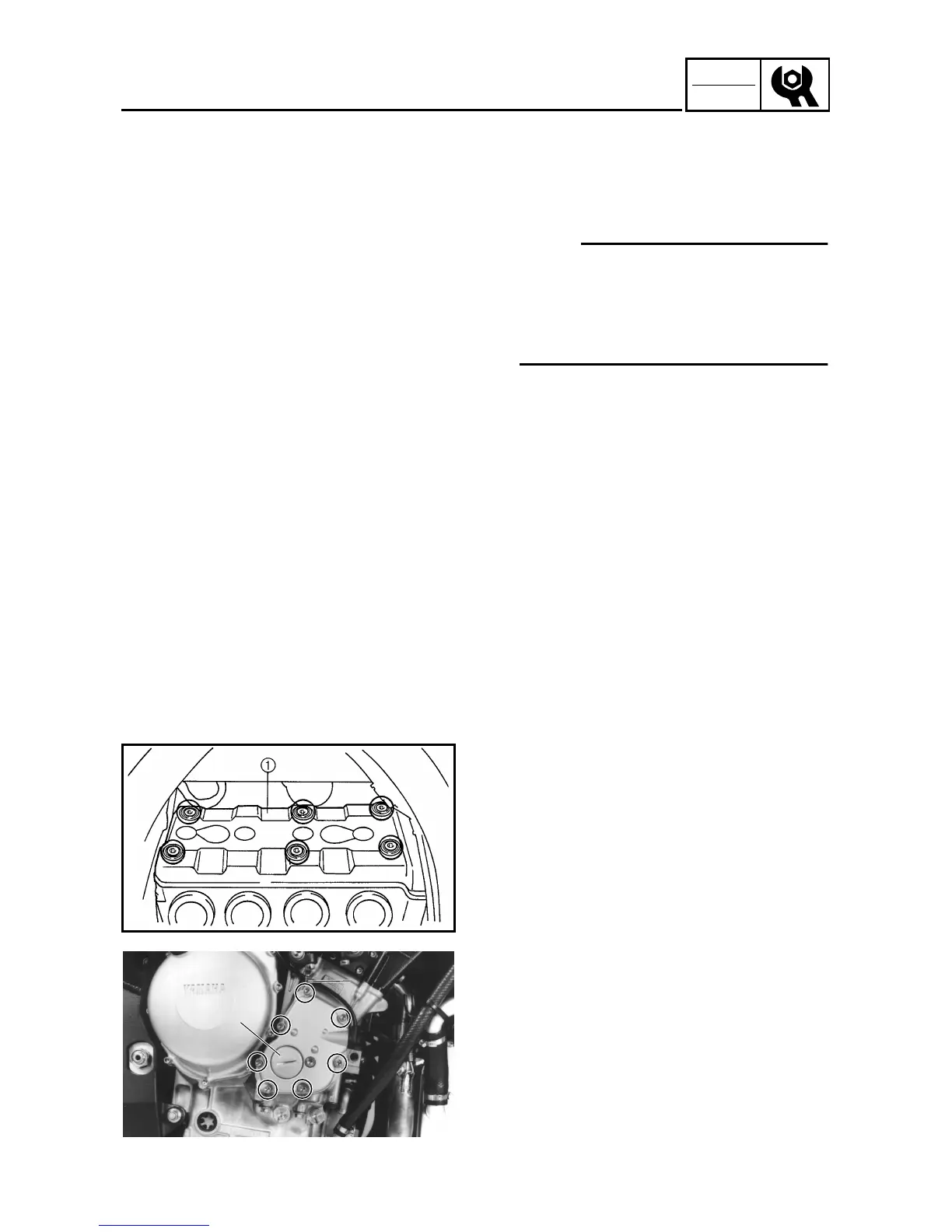

ADJUSTING THE VALVE CLEARANCE
EB303001
ENGINE
ADJUSTING THE VALVE CLEARANCE
The following procedure applies to all of
the valves.
NOTE:
Valve clearance adjustment should be
made on a cold engine, at room tem-
perature.
When the valve clearance is to be mea-
sured or adjusted, the piston must be
at top dead center (TDC) on the com-
pression stroke.
1. Remove:
bottom cowling
front cowling
rear cowling
Refer to “COWLINGS”.
fuel tank
air filter case cover
Refer to “FUEL TANK AND AIR FIL-
TER”.
air filter case
throttle body assembly
Refer to “ELECTRONIC FUEL INJEC-
TION” IN CHAPTER 6.
radiator assembly
thermostat assembly
Refer to “RADIATOR AND THERMO-
STAT” in chapter 5.
2. Disconnect:
camshaft sensor coupler
ignition coil couplers
3. Remove:
ignition coils
spark plugs
cylinder head cover
1
cylinder head cover gasket
4. Remove:
pickup coil lead holder
1
pickup coil rotor cover
2
2
2
1
1
