YASKAWA Varispeed G7 Series User Manual

Exterior and Mounting Dimensions
1- 7
 Enclosed Wall-mounted Inverters [NEMA1 (Type 1)]

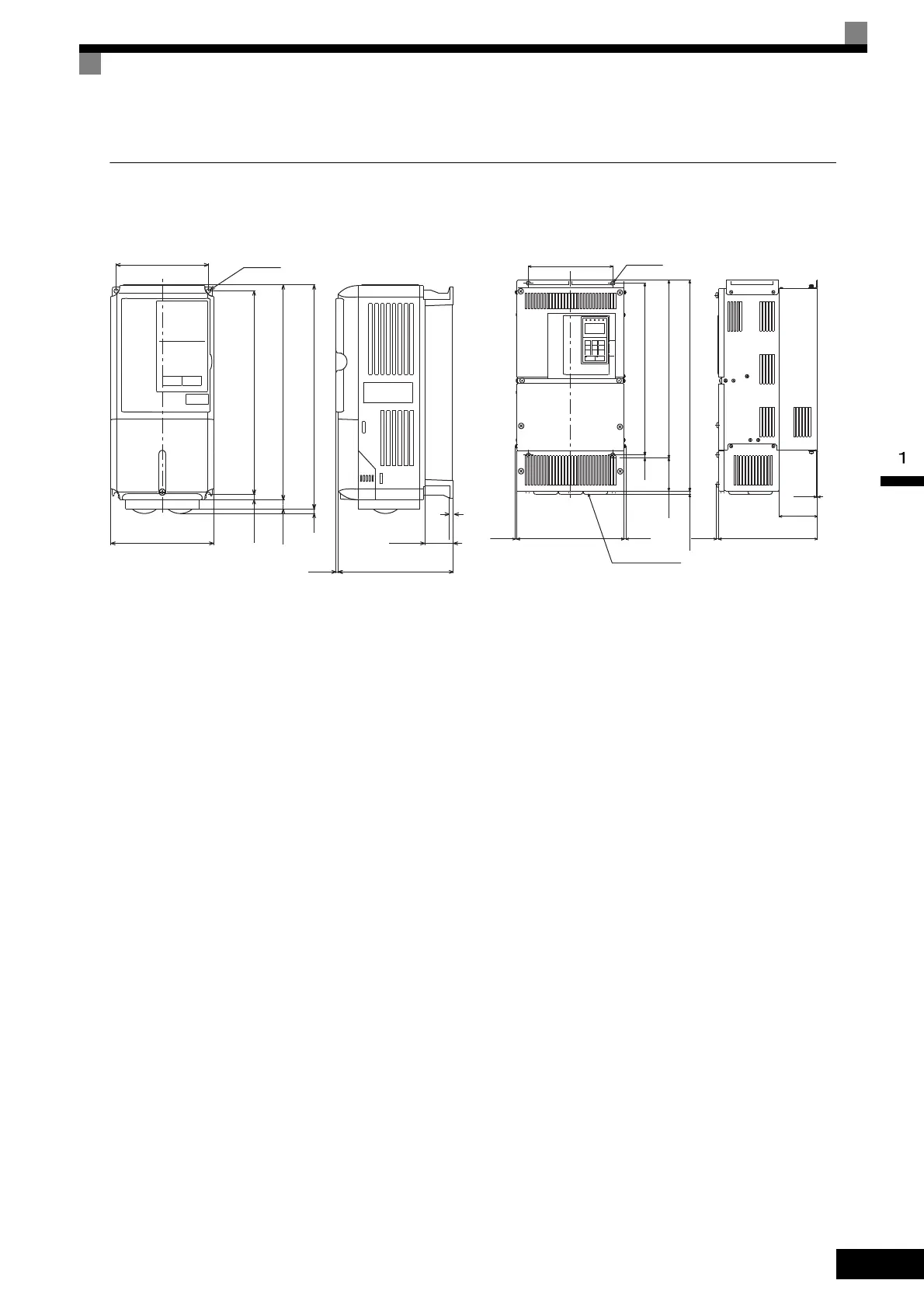

Exterior diagrams of the Enclosed Wall-mounted Inverters [NEMA1 (Type 1)] are shown below.
Fig 1.7 Exterior Diagrams of Enclosed Wall-mounted Inverters
W
W1
3
H1H2
D
H0
D1
H3
4 H
4-d
t1
200 V Class Inverters of 18.5 to 75 kW
400 V Class Inverters of 18.5 to 160 kW
W
W1
H3
H0
H1
H2
D1
D(5)
4-d
t1
(5)*(5)*
H
Grommet
Max.10
200 V/400 V Class Inverters of 0.4 to 15 kW
* (7.5) for 200 V Class Inverters of 30 to 75 kW or 400 V
Class Inverters of 55 to 160 kW.
