10 -28
 Using a VS Operator

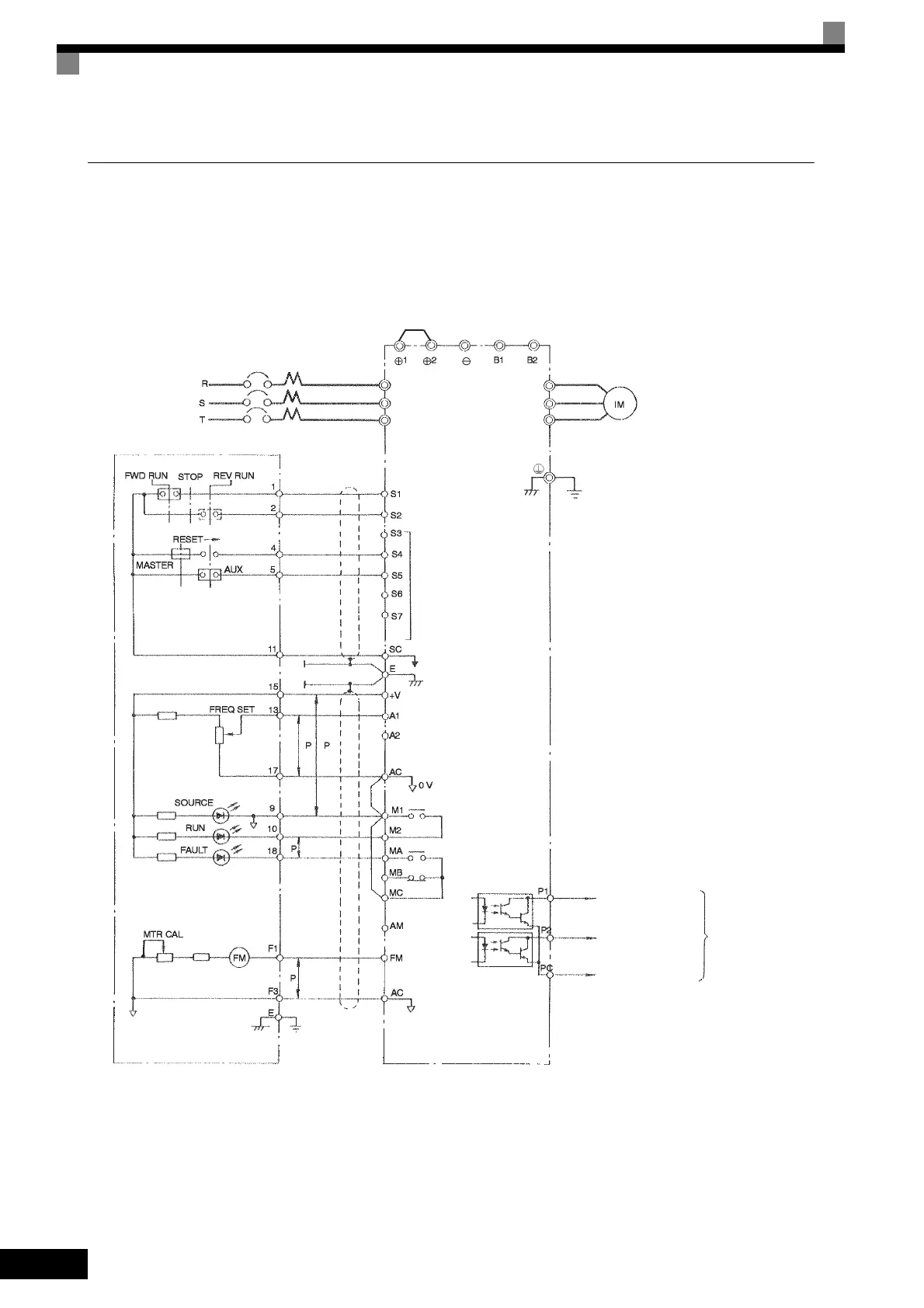

This example shows wiring for using a VS Operator. The VS Operator model number is JVOP-95 or
JVOP-96
.
CIMR-G7A27P5 (200 V Class Inverters of 7.5 kW)
Fig 10.17
Ground Fault Interrupter or Molded-case Circuit Breaker
3-phase power
Inverter
Motor
Ground to 100 Ω max.
Forward Run Command
(forward run when closed)
Reverse Run Command
(reverse run when closed)
Multi-function contact inputs
Sequence common (0 V)
Shield terminal
Master speed (0 to 10 V, 20 kΩ)
Speed setting power (15 V, 20 mA)
Master speed (4 to 20 mA, 250 Ω)
Fault contact output
Multi-function contact
output (Default: Running
signal)
JVOP-95•, C-96• VS Operator
Frequency meter
Multi-function
analog output
Multi-function
analog output
(Default: Output
frequency)
Open collector 1 (Default:
Zero-speed signal)
Open collector 2 (Default:
Speed agreement signal)
Multi-function output
common
Multi-function open-
collector output 48 V,
50 mA max.
Short-circuit bar
(Standard)
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
