Removing and Attaching the Protection Cover

Inverters of 15 kW or less have protection covers on the top and bottom as shown in Fig. 1.4.Always

remove the protection covers before installing an Inverter of 15 kW or less in a panel. Use the following

procedure to remove and attach a protection cover.

 Removing the Protection Cover

Top Protection Cover

Insert the tip of the straightedge screwdriver in the slot. Then, lift the cover up in the direction shown by the

arrow to remove it.

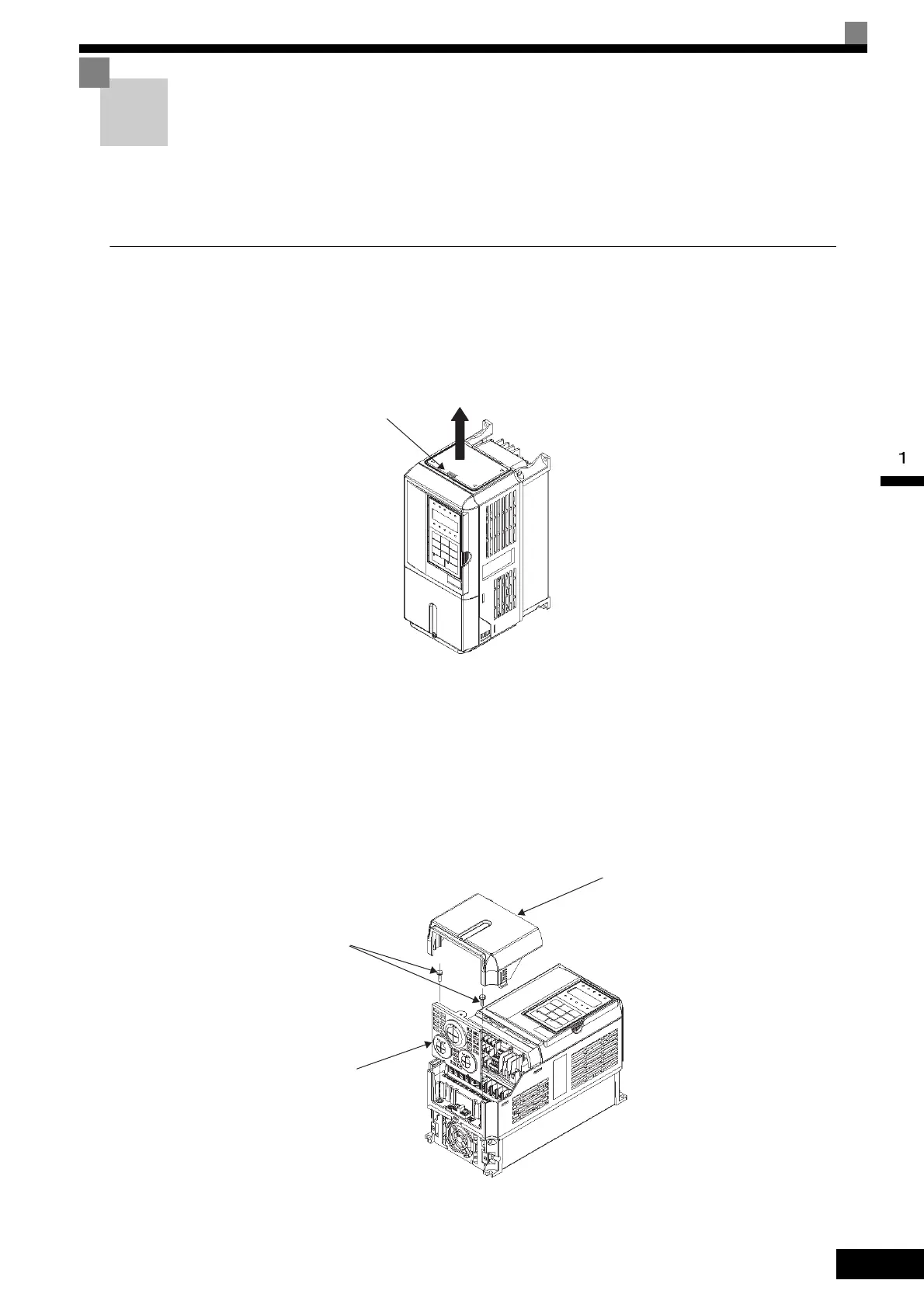

Fig 1.15 Removing the Top Protection Cover (Model CIMR-G7A43P7 Shown Above)

Bottom Protection Cover

1. Remove the terminal cover as described on Page 1-11.

2. Loosen the two screws, and remove the protection cover.

3. Return the screws to their original position and tighten them.

4. Reattach the terminal cover as described on Page 1-12.

Fig 1.16 Removing the Bottom Protection Cover (Model CIMR-G7A43P7 Shown Above)

Slot

Terminal Cover

Screws

Bottom Protection

Cover
